Product Information

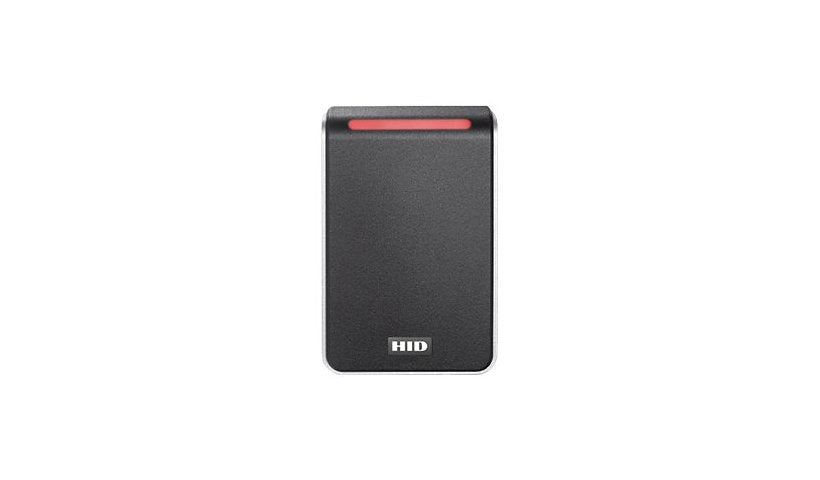

The HID Signo 40 PIV reader fits a wall switch box and reads PIV cards with a contactless CAK certificate when paired with pivCLASS PAM or Embedded Authentication, plus iCLASS, Seos, MIFARE, DESFire, FeliCa and HID Prox. It reads CHUID, connects by OSDP over RS-485, Wiegand or clock and data on 12 V DC at 250 mA and has a pigtail. Limited lifetime warranty.
Key Features
- PIV card reader, CHUID
- Works with pivCLASS PAM
- iCLASS, Seos, DESFire, Prox
- OSDP, Wiegand, clock and data
- 12 V DC, 250 mA, pigtail
- Limited lifetime warranty
Product Information
Brand: HID
Product Line: HID Signo
Model: 40 PIV
Product Type: Access control terminal
Packaged Quantity: 1
Color: Black with silver trim
Color Category: Black, Silver
Network and Communication
Features #2: 13.56 MHz card technology, Card Holder Unique IDentifier (CHUID), LED Indicator, Wall Mountable
Connectivity Technology: Wired
Data Link Protocols: Clock-and-Data, RS-485, Wiegand
Wired Protocol: Clock-and-Data/serial RS-485/Wiegand
Features: Open Supervised Device Protocol (OSDP)
Features: 13.56 MHz card technology, Card Holder Unique IDentifier (CHUID), LED Indicator, Wall Mountable
Connectivity
Interfaces: Clock-and-Data, Relay output, Serial (RS-485), Wiegand
Power
Required Voltage: DC 12 volt
Technical Information
Environment: Indoor, Outdoor
Card Technology: Contactless e-Purse Application Specification (CEPAS), FeliCa, HID iCLASS, HID iCLASS SE, HID iCLASS Seos, HID iCLASS SR, HID MIFARE Classic, HID MIFARE CSN, HID MIFARE DESFire EV1, HID MIFARE DESFire EV2, HID MIFARE DESFire Sio, HID MIFARE Sio, HID Prox
Functions: Access control
Rated Current: 250 milliampere
Touchscreen: No
Integrated Components: Buzzer, NFC reader, SmartCard reader
Min Operating Temperature: -31 degree Fahrenheit
Max Operating Temperature: 150.8 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Physical Characteristics
Materials: Polycarbonate
Certifications and Listing
Compliant Standards: BAA, CAK, CB, CIV, FCC, FICAM, FIPS 201 PIV, FRAC, IP65, ISO 14443 type A, NIST SP800-116, PIV, PIV-I, TWIC, UL 294, UL 94 V-0
Warranty
Limited Warranty: Limited Lifetime
