Product Information

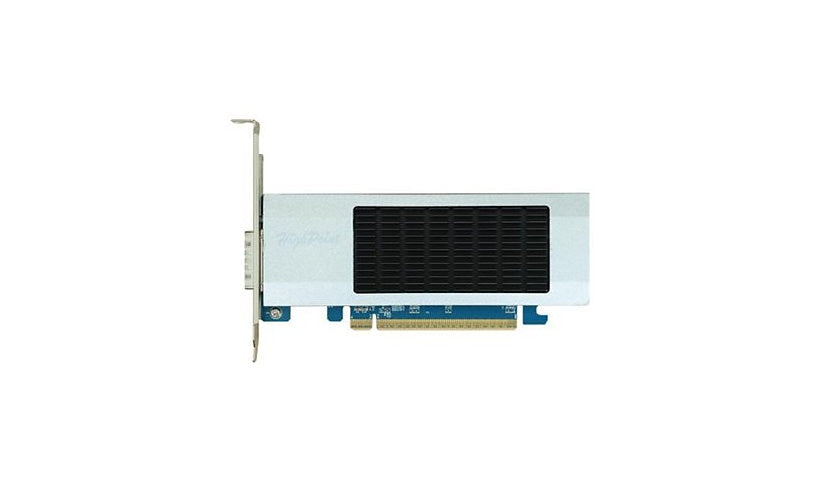

The HighPoint Rocket R7634D is a PCIe 5.0 x16 host adapter with one external CDFP (CopprLink) connector, for high throughput links to external storage and expansion gear. It is rated up to 64 GB/s, supports hot plug devices and secure boot, and has status and diagnostic LEDs, an alarm buzzer, power measurement and HighPoint's advanced cooling, with a rated MTBF of 5 million hours. A low profile bracket is included, and it works with Windows 10 and 11, Windows Server 2016 to 2025, Linux and Proxmox.
Key Features
- 1 x external CDFP port
- PCIe 5.0 x16
- Up to 64 GB/s
- Hot plug support
- LEDs and alarm buzzer
- Low profile bracket
Product Information
Brand: HighPoint
Manufacturer: Highpoint
Product Line: HighPoint Rocket
Model: R7634D
Product Type: Host adapter
Packaged Quantity: 1
Color Category: Black, Blue, Silver
Network and Communication
Data Transfer Rate: 64 GBps
Operating System Required: Debian, Fedora, Microsoft Windows 10 / 11, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Microsoft Windows Server 2025, Proxmox, Red Hat Enterprise Linux, Rocky Linux, Ubuntu
Features: Advanced Cooling Technology, Alarm buzzer, Diagnostic LED, Electrical power measuring, Full-height, Hot plug, Hot-swappable, LED status indicators, Secure Boot
Connectivity
Channel Quantity: 1
Controller Interface: CDFP x16 / CopprLink
Host Bus Interface: PCIe 5.0 x16
Interface Provided: 1 x CDFP - CDFP Device (external)
Power
Power Device Type: None
Memory and Processor
Form Factor (Storage Controller): Plug-in card
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
MTBF: 5,000,000 Hours
Physical Characteristics
Low Profile: Low profile
Dimensions and Weight
Height: 2.7 inch
Width: 6.5 inch
Depth: 0.8 inch
Weight: 7.05 ounce
Included Items
Included Accessories: Low-profile bracket
