Product Information

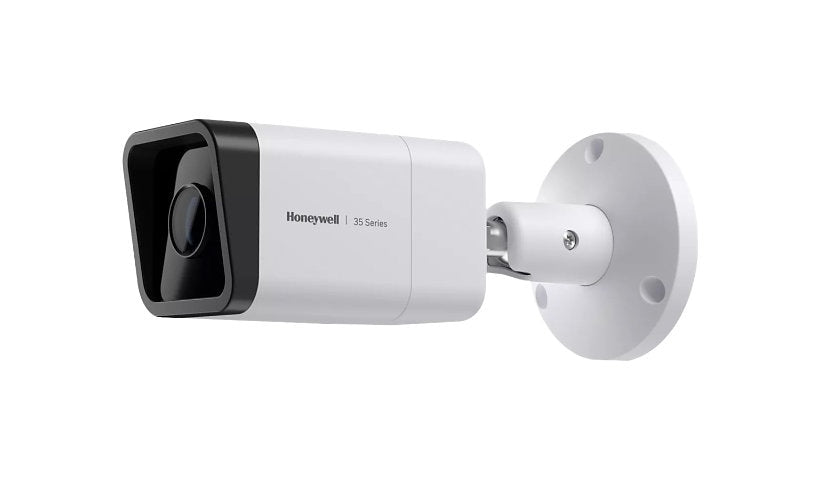

The Honeywell 35 Series HC35WB5R3 is a 5 MP bullet recording 2592 x 1944 at 30 fps through a 2.8 mm lens with an 88 degree view. It has IR up to 164 ft, two way audio, intrusion and motion detection, defog and ONVIF support in an aluminum housing, and runs on 12 V DC or PoE at 6 W.
Key Features
- 5 MP, 2592 x 1944
- 2.8 mm, 88 degree view
- IR up to 164 ft
- Two way audio
- Intrusion detection, ONVIF
- 12 V DC or PoE, 6 W
Product Information
Brand: Honeywell
Manufacturer: Honeywell
Product Line: Honeywell 35 Series
Model: HC35WB5R3
Packaged Quantity: 1
Color: Pantone black, RAL 9003, Signal white
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Operating System Required: Windows 10
Features: Alarm function, Aluminum housing, Auto white balance, Backlight Compensation (BLC), Defog, Highlight Compensation (HLC), Intrusion detection, Motion Detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People Detection, Progressive scanning, Region of Interest (ROI), Smart Motion Detection, Tamper-detection, Triple video stream, Wide Dynamic Range (WDR)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP, TCP/IP, TLS, UDP/IP
Ports: LAN/power - RJ-45
Power
Low Voltage Power: DC 12 V / PoE Class 0
Power Consumption Operational: 6 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Infrared Distance: 164 ft
Infrared LEDs: 4
Sensor Pixels Total (H): 2592
Sensor Pixels Total (V): 1944
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 88
Angular Field of View (V, Min, Degree): 65
Minimum Illumination: 0 lux - IR - F2.0, 0.007 lux - color - F2.0
Total Pixels: 5,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: WDR CMOS
Lens Aperture: F/2.0
Min Focal Length: 2.8 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1920 x 1080, 2592 x 1520, 2592 x 1944, 320 x 240, 352 x 240, 352 x 288, 640 x 480, 704 x 480, 704 x 576
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/32000 second (time unit)
Shutter Speed (Min): 1/8 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265, HEVC, MJPEG, NTSC, PAL
Video Input: Color
Audio Support: Yes
Audio Formats: G.711a, G.711u
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 2592 x 1944
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 0 - 90% (non-condensing)
Physical Characteristics
Form Factor: Bullet
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.4 inch
Width: 3.4 inch
Depth: 7.8 inch
Weight: 24.69 ounce
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
