Product Information

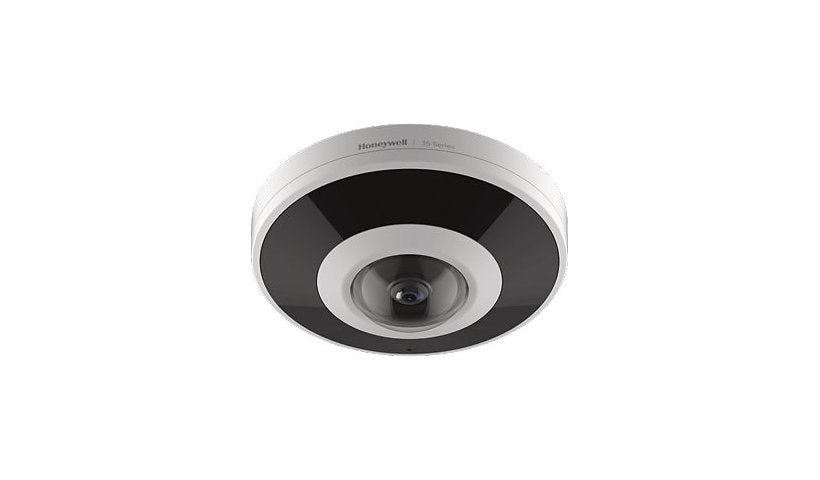

The Honeywell 35 Series HC35WF6R1 is a 6 MP fisheye recording 2560 x 2560 at up to 60 fps through a 1.22 mm lens for 180 degree panoramic coverage, indoor or outdoor. It has 120 dB WDR, defog, IR up to 66 ft, a built in mic with two way audio and alarm I/O, and runs on 12 V DC or PoE. Impact resistant.
Key Features
- 6 MP, 2560 x 2560
- 180 degree fisheye
- 120 dB WDR
- IR up to 66 ft, mic
- Two way audio, alarm I/O
- 12 V DC or PoE
Product Information
Brand: Honeywell
Manufacturer: Honeywell
Product Line: Honeywell 35 Series
Model: HC35WF6R1
Packaged Quantity: 1
Color: Black, RAL 9003
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Encryption: 128-bit AES, 256-bit AES, TLS 1.2, TLS 1.3
Operating System Required: Microsoft Windows 10 / 11
Features: 10 access users, 120 dB wide dynamic range, 2D digital noise reduction (DNR), 3 video streams, 3D digital noise reduction (DNR), 50 dB signal-to-noise ratio, Auto white balance, Backlight Compensation (BLC), Defog, Digest authentication, DORI coverage, E-mail alerts, Event Notification, Face Detection, Full duplex audio, Gain Control, Heat Map, Highlight Compensation (HLC), Intrusion detection, IP address filtering, Line Crossing Detection, Manual white balance, Missing object detection, Multi Loitering, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Password protection, People Counter, Privacy masking (up to 4 areas), Region of Interest (ROI), Scene Change Detection (SCD), Secure Boot, Smart IR, Smart Motion Detection (SMD), Stream encryption, Unattended object detection, Wide Dynamic Range (WDR)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, QOS, RTCP, RTP, RTSP, SFTP, SMTP, SNMP, SSH, TCP/IP, Telnet, TLS, UDP
Ports: Audio line in, Audio line out, LAN/power - RJ-45
Power
Low Voltage Power: DC 12 V / 44 - 57 (PoE)
Memory and Processor
Memory Cards Supported: microSD Card
RAM Installed: 16 GB
Flash Memory Installed: 2 GB
Technical Information
Angular Field of View (H, Max, Degree): 180
Angular Field of View (V, Max, Degree): 180
Infrared Distance: 66 ft
Infrared LEDs: 6
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Motion Detection: Yes
Camera Iris: Fixed iris
Minimum Illumination: 0 lux - B&W - F1.6 - infrared LEDs on, 0.008 lux - color - F2.0 - 30 IRE
Total Pixels: 6,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: Progressive Scan CMOS
Lens Aperture: F/2.0
Min Focal Length: 1.22 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 1280, 1280 x 960, 1520 x 1520, 1920 x 1080, 1920 x 1440, 1920 x 480, 1920 x 960, 2048 x 1536, 2048 x 2048, 2560 x 1280, 2560 x 2560, 2560 x 640, 320 x 240, 480 x 480, 640 x 480, 640 x 640, 704 x 576, 720 x 720, 832 x 208
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/100000 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265, HEVC, MJPEG, NTSC, PAL
Video Input: Color
Audio Support: Yes
Audio Formats: G.711a, G.711u
Audio Support Features: Built-in microphone, Two-way audio capability
Rated Current: 1 ampere
Touchscreen: No
Max Video Resolution: 2560 x 2560
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Physical Characteristics
Protection: Ingress protection / impact resistant
Form Factor: Fisheye
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2 inch
Width: 5.1 inch
Depth: 5.1 inch
Weight: 21.23 ounce
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
