Product Information

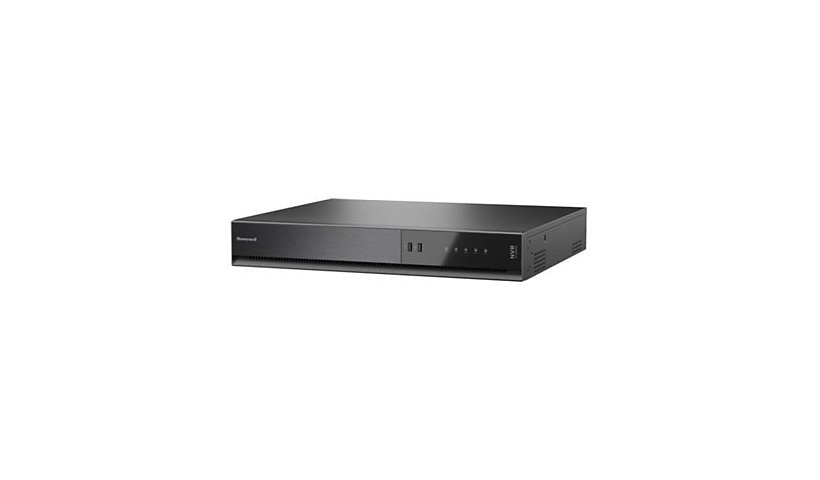

The Honeywell 35 Series HN35 Plus (HN35160200) is a 16 channel 4K NVR with 16 PoE+ ports, 2 SATA bays for up to 20 TB plus eSATA, HDMI and VGA outputs, audio in and out, 6 alarm inputs and 2 outputs and 3 USB 3.0 ports. It adds TPM, stream encryption, cloud backup and mobile viewing. Ships with no hard drive (0 TB).
Key Features
- 16 channels, 4K
- 16 PoE+ ports
- No HDD included
- Up to 20 TB, eSATA
- 6 alarm in, 2 out
- TPM, cloud backup
Product Information
Quantity Supported: 2
Brand: Honeywell
Manufacturer: Honeywell
Product Line: Honeywell 35 Series
Model: HN35 Plus
Device Type: Standalone NVR
Packaged Quantity: 1
Color Category: Black
Network and Communication
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Protocols: HTTPS, RTMP
Network Ports: PoE+ x 16 / 10/100/1000Base-T x 1
Features #2: Cloud Backup, Mobile phone monitoring, Motion Detection, Power over Ethernet (PoE), Stream encryption, Video Motion Detector (VMD)
Capacity: 0 TB
Operating System Edition: Linux
Features: ONVIF Profile S, Trusted Platform Module (TPM)
Features: Cloud Backup, Mobile phone monitoring, Motion Detection, Power over Ethernet (PoE), Stream encryption, Video Motion Detector (VMD)
Connectivity
Audio Inputs: Mini-phone 3.5 mm x 1
Additional Ports: eSATA x 1, USB 3.0 x 3
Audio Outputs: Mini-phone 3.5 mm x 1
Video Output Ports: HDMI x 1, VGA x 1
Power Over Ethernet (PoE): PoE
Memory and Processor
Supported Max Total Capacity: 20 TB
Technical Information
Alarm Ports: Alarm input x 6, Alarm output x 2
Display Modes: 1+7 split screens, 16 split screens, 4 split screens, 9 split screens, Custom, Full screen
Frame Rate (Playback): 120 fps, 30 fps, 480 fps
Frame Rate (Record): 120 fps, 30 fps, 480 fps
IP Cameras Supported: 16
Record Events: Alarm, Continuous, Event, Scheduled
Video Recording Resolution: 1920x1080, 2560x1920, 3840x2160, 720x576
Networked: Yes
Interface: Serial ATA
Compression Format: H.264, H.265, HEVC
Video Input Ports: RJ-45 x 16
Video Channels: 16
Image Resolution: 1024x768, 1280x1024, 1920x1080, 3840x2160
Touchscreen: No
Dimensions and Weight
Height: 1.8 inch
Width: 14.6 inch
Depth: 12.3 inch
Weight: 6.06 lbs
Certifications and Listing
Compliant Standards: CSA 60950-1, EN 50130-4, EN 60950-1, EN55022, FCC Part 15, NDAA Section 889, UL 60950-1
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
