Product Information

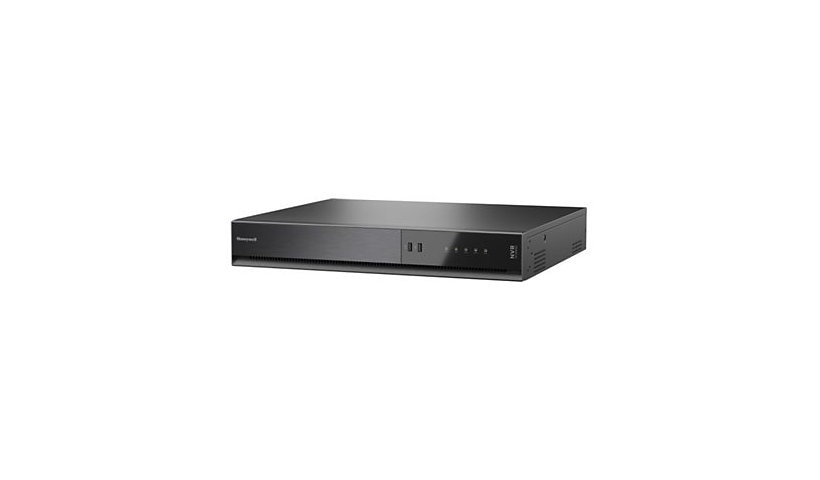

The Honeywell 35 Series HN35 Plus (HN35320416) is a 32 channel 4K NVR with 16 PoE+ camera ports, 16 TB installed in 2 SATA bays (listed up to 18 TB) plus eSATA, HDMI and VGA outputs, audio in and out, 6 alarm inputs and 2 outputs, 3 USB 3.0 ports and TPM.
Key Features
- 32 channels, 4K
- 16 PoE+ ports
- 16 TB installed
- HDMI and VGA
- 6 alarm in, 2 out
- eSATA, TPM
Product Information
Quantity Supported: 2
Brand: Honeywell
Manufacturer: Honeywell
Product Line: Honeywell 35 Series
Model: HN35 Plus
Device Type: Standalone NVR
Packaged Quantity: 1
Color Category: Black
Network and Communication
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Protocols: HTTPS, RTMP
Network Ports: PoE+ x 16 / 10/100/1000Base-T x 1
Features #2: Cloud Backup, Mobile phone monitoring, Motion Detection, Power over Ethernet (PoE), Stream encryption, Video Motion Detector (VMD)
Capacity: 16 TB
Operating System Edition: Linux
Features: ONVIF Profile S, Trusted Platform Module (TPM)
Features: Cloud Backup, Mobile phone monitoring, Motion Detection, Power over Ethernet (PoE), Stream encryption, Video Motion Detector (VMD)
Connectivity
Audio Inputs: Mini-phone 3.5 mm x 1
Additional Ports: eSATA x 1, USB 3.0 x 3
Audio Outputs: Mini-phone 3.5 mm x 1
Video Output Ports: HDMI x 1, VGA x 1
Power Over Ethernet (PoE): PoE
Memory and Processor
Supported Max Total Capacity: 18 TB
Technical Information
Alarm Ports: Alarm input x 6, Alarm output x 2
Display Modes: 1+7 split screens, 16 split screens, 4 split screens, 9 split screens, Custom, Full screen
Frame Rate (Playback): 120 fps, 30 fps, 480 fps
Frame Rate (Record): 120 fps, 30 fps, 480 fps
IP Cameras Supported: 32
Record Events: Alarm, Continuous, Event, Scheduled
Video Recording Resolution: 1920x1080, 2560x1920, 3840x2160, 720x576
Networked: Yes
Interface: Serial ATA
Compression Format: H.264, H.265, HEVC
Video Input Ports: RJ-45 x 32
Video Channels: 32
Image Resolution: 1024x768, 1280x1024, 1920x1080, 3840x2160
Touchscreen: No
Dimensions and Weight
Height: 1.8 inch
Width: 14.6 inch
Depth: 12.3 inch
Certifications and Listing
Compliant Standards: EN 50130-4, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-4, EN 62368-1, EN55024, FCC Part 15, ICES-003, IEC/EN 63000, NDAA Section 889, RCM, RoHS, UAE, UKCA, UL/CSA 62368-1
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
