Product Information

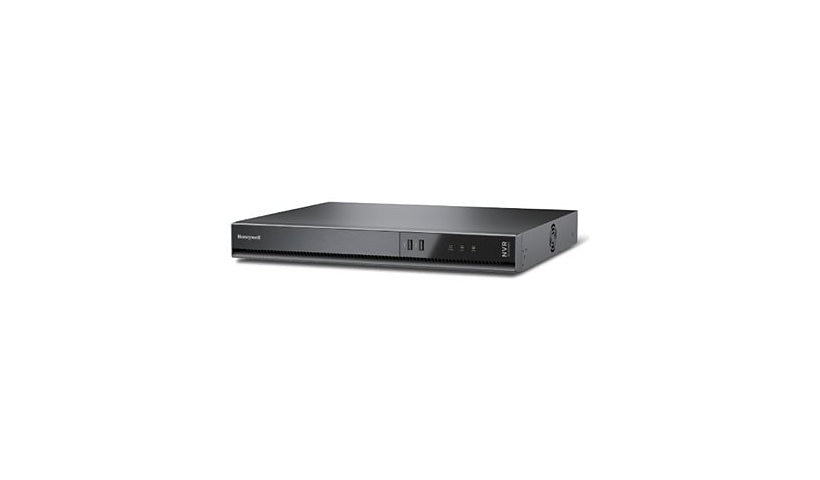

The Honeywell 35 Series HN35160204 is a 16 channel 4K NVR with 16 PoE+ ports and 2 x 2 TB drives installed (up to 20 TB). It has HDMI and VGA outputs, audio in and out with two way audio, 8 alarm inputs and 2 outputs, and supports intrusion, loitering, crowd and tamper alerts with encrypted streaming. The description lists it as NDAA Section 889 compliant.
Key Features
- 16 channels, 4K
- 16 PoE+ ports
- 2 x 2 TB installed
- HDMI and VGA
- 8 alarm in, 2 out
- NDAA Section 889
Product Information
Quantity Installed: 2
Quantity Supported: 2
Brand: Honeywell
Manufacturer: Honeywell
Product Line: Honeywell 35 Series
Model: HN35160204
Device Type: Standalone NVR
Packaged Quantity: 1
Color Category: Black
Network and Communication
DDNS Support: Yes
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Protocols: DHCP, DNS, FTP, HTTP, HTTPS, IPv4, NTP, P2P, RTCP, RTP, RTSP, SMTP, TCP/IP, UPnP
Network Ports: PoE+ x 16 / 10/100/1000Base-T x 1
Features #2: Camera tampering, Crowd detection, E-mail alarm notifications, Intrusion detection, Loitering detection, Mobile phone monitoring, Motion Detection, Pan/Tilt/Zoom support, Power over Ethernet (PoE), Smart Motion Detection (SMD)
Capacity: 2 TB
Operating System Edition: Linux
Features: 1 fan, Encrypted streaming, IP address filtering, ONVIF Profile S, Two-way audio support
Features: Camera tampering, Crowd detection, E-mail alarm notifications, Intrusion detection, Loitering detection, Mobile phone monitoring, Motion Detection, Pan/Tilt/Zoom support, Power over Ethernet (PoE), Smart Motion Detection (SMD)
Connectivity
Audio Inputs: Mini-phone 3.5 mm x 1
Additional Ports: USB 2.0 x 3
Audio Outputs: Mini-phone 3.5 mm x 1
Video Output Ports: HDMI x 1, VGA x 1
Power
Input Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power Consumption: 15 watt
Memory and Processor
Supported Max Total Capacity: 20 TB
Technical Information
Alarm Ports: Alarm input x 8, Alarm output x 2
Display Modes: 16 split screens, 2 split screens, 4 split screens, 8 split screens, 9 split screens, Custom
Frame Rate (Playback): 120 fps, 30 fps, 480 fps
Frame Rate (Record): 30 fps
IP Cameras Supported: 16
Playback Search: Date/time, Event
Record Events: Alarm, Motion detection, Tamper detection
Video Recording Resolution: 1920x1080, 2560x1920, 3840x2160, 720x576
Networked: Yes
Interface: Serial ATA
Compression Format: G.711, H.264, H.265, HEVC, JPEG
Video Input Ports: RJ-45 x 16
Video Channels: 16
Image Resolution: 1024x768, 1280x1024, 1920x1080, 3840x2160
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 90% RH
Dimensions and Weight
Height: 1.8 inch
Width: 14.6 inch
Depth: 12.3 inch
Weight: 6.06 lbs
Certifications and Listing
Compliant Standards: EN 50130-4, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-4, EN 62368-1, EN55024, FCC Part 15, ICES-003, IEC/EN 63000, NDAA Section 889, RCM, RoHS, UAE, UKCA, UL/CSA 62368-1
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
