Product Information

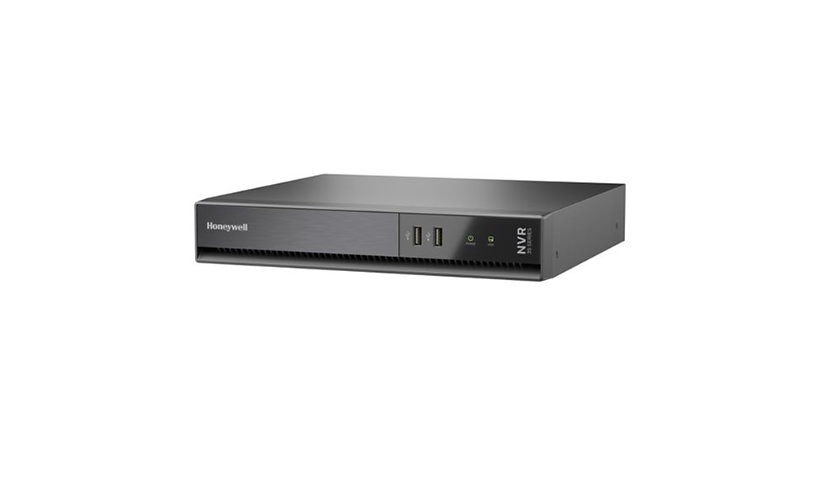

The Honeywell 35 Series HN35160216 is a 16 channel 4K NVR with PoE camera ports, listed with 16 TB of storage on 2 installed drives (up to 20 TB supported), two HDMI and one VGA output, audio in and out, 8 alarm inputs and 2 outputs and 3 USB 2.0 ports. It records intrusion, motion and tamper events and works with Honeywell Smart Viewer. ONVIF Profile S.
Key Features
- 16 channels, 4K
- 16 TB installed
- PoE camera ports
- 2 HDMI, 1 VGA
- 8 alarm in, 2 out
- ONVIF Profile S
Product Information
Quantity Installed: 2
Quantity Supported: 2
Brand: Honeywell
Manufacturer: Honeywell
Product Line: Honeywell 35 Series
Model: HN35
Device Type: Standalone NVR
Packaged Quantity: 1
Color Category: Black
Network and Communication
DDNS Support: Yes
Network Interfaces: Ethernet 10Base-T/100Base-TX
Supported Protocols: DHCP, DNS, FTP, HTTP, HTTPS, IPv4, NTP, P2P, RTCP, RTP, RTSP, SMTP, TCP/IP, UPnP
Network Ports: 10/100/1000Base-T (PoE)
Features #2: Built-in cooling fan, Pan/Tilt/Zoom support
Capacity: 16 TB
Operating System Edition: Linux
Features: ONVIF Profile S
Features: Built-in cooling fan, Pan/Tilt/Zoom support
Connectivity
Audio Inputs: Mini-phone 3.5 mm x 1
Additional Ports: USB 2.0 x 3
Audio Outputs: Mini-phone 3.5 mm x 1
Video Output Ports: HDMI x 2, VGA x 1
Power Over Ethernet (PoE): PoE
Power
Input Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power Consumption: 15 watt
Memory and Processor
Supported Max Total Capacity: 20 TB
Technical Information
Alarm Ports: Alarm input x 8, Alarm output x 2
Display Modes: 2 split screens, 3 split screens, 4 split screens, 7 split screens, Custom, Full screen
Frame Rate (Playback): 120 fps, 30 fps, 480 fps
Frame Rate (Record): 30 fps
IP Cameras Supported: 16
Playback Search: Event, Manual
Record Events: Alarm, Intrusion detection, Motion detection, Tamper detection
Video Recording Resolution: 1920x1080, 2 Megapixels, 3840x2160, 8 Megapixels
Networked: Yes
Interface: Serial ATA
Compression Format: G.711, H.264, H.265, JPEG
Video Input Ports: RJ-45 x 16
Video Channels: 16
Image Resolution: 1024x768, 1280x1024, 1920x1080, 3840x2160, 4K
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 90% RH
Dimensions and Weight
Height: 1.8 inch
Width: 14.6 inch
Depth: 12.3 inch
Weight: 6.06 lbs
Certifications and Listing
Compliant Standards: EN 50130-4, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-4, EN 62368-1, EN55024, FCC Part 15, ICES-003, IEC/EN 63000, IEEE 802.3af, IEEE 802.3at, NDAA Section 889, RCM, RoHS, UKCA, UL/CSA 62368-1
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
