Product Information

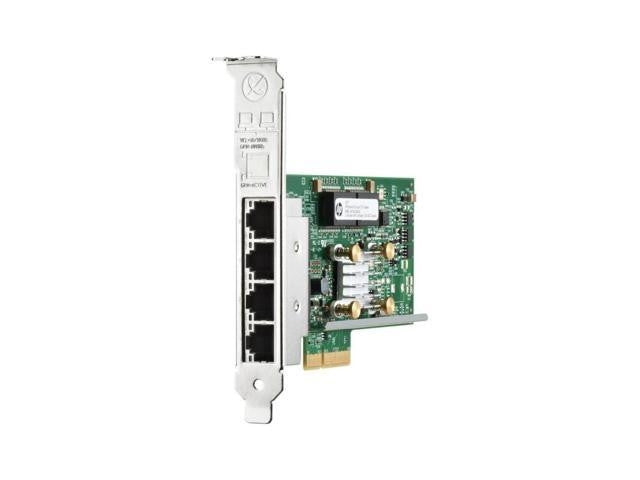

The HPE 647592-001 is the 331T, a quad port Gigabit Ethernet adapter with four 1000Base-T RJ-45 ports and a PCIe 2.0 interface.
Key Features
- Broadcom BCM5719 controller
- Jumbo frames, PXE boot and Large Send Offload (LSO)
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 647592-001
Option Part Number: 647594-B21
Spare Part Number: 647592-001
General
Product Type: Network Adapter
Form Factor: Plug-in card
Adapter Details
Bus Type: PCI Express 2.0 x4
PCI Spec Revision: PCIe 2.0
Connectivity: Wired
Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE
Transfer Rate: 1 Gbps
Remote Management: SNMP
Status Indicators: Port transmission speed, link/activity
Features: Jumbo Frames support, PXE support, Large Send Offload (LSO)
Processor: 1 x BCM5719 - Broadcom
RAM: 276 MB
Connections
Ports: Gigabit Ethernet x 4, 4 x 1000Base-T - RJ-45
Cabling: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Software and Compatibility
Supported Operating Systems: SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, Microsoft Windows Storage Server 2008 Embedded, SuSE Linux Enterprise Server 10, Microsoft Windows Server 2008 Enterprise, Microsoft Windows Server 2008 Standard, Microsoft Windows Web Server 2008, Microsoft Windows Server 2008 Enterprise x64 Edition, Microsoft Windows Server 2008 Standard x64 Edition, Microsoft Windows HPC Server 2008, Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Small Business Server 2011 Essentials, Oracle Solaris 10, Microsoft Windows Small Business Server 2011, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7
Size and Weight
Depth: 4.6 in
Height: 3 in
Power and Environment
Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az, FCC Class B certified, UL, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, FCC Part 15, RoHS, ICES, VCCI V-3 Class B ITE
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 90% (non-condensing)
Compatible Systems
- HPE ProLiant DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL360p Gen8 Performance
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
