Product Information

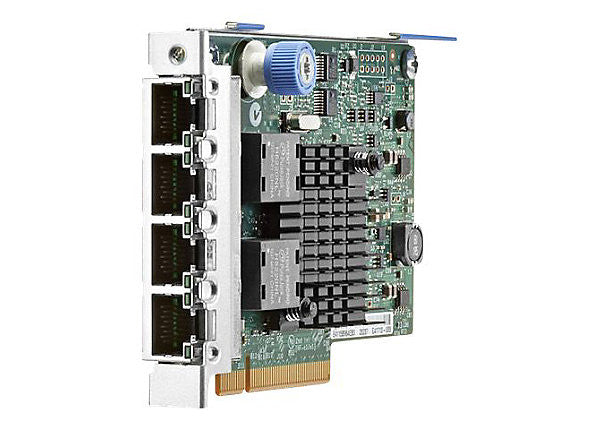

The HPE 665240-B21 is the 366FLR, a quad port 1Gb Ethernet FlexibleLOM adapter for HPE ProLiant Gen10 servers. It uses a PCIe 2.1 x4 interface and four RJ-45 1000Base-T ports.
Key Features
- Intel I350 controller
- Jumbo frames, PXE boot and Large Send Offload (LSO)
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 665240-B21
Option Part Number: 665240-B21
Spare Part Number: 669280-001
General
Product Type: Network adapter
Adapter Details
Bus Type: PCI Express 2.1 x4
Connectivity: Wired
Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE
Transfer Rate: 1 Gbps
Remote Management: SNMP
Status Indicators: Link activity, port transmission speed
Features: Jumbo Frames support, PXE support, Large Send Offload (LSO)
Processor: 1 x I350 - Intel
Connections
Network Ports: Gigabit Ethernet x 4
Cabling: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Ports: 4 x 1000Base-T - RJ-45
Slot: 1 x FlexibleLOM
Software and Compatibility
Supported Operating Systems: SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, Microsoft Windows Storage Server 2008 Embedded, SuSE Linux Enterprise Server 10, Microsoft Windows Server 2008 Enterprise, Microsoft Windows Server 2008 Standard, Microsoft Windows Web Server 2008, Microsoft Windows Server 2008 Enterprise x64 Edition, Microsoft Windows Server 2008 Standard x64 Edition, Microsoft Windows HPC Server 2008, Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Small Business Server 2011 Essentials, Oracle Solaris 10, Microsoft Windows Small Business Server 2011, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7, Microsoft Windows Server 2012
Size and Weight
Depth: 4.60 inch
Height: 3.00 inch
Power and Environment
Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az, UL, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, RoHS, FCC Part 15 A, ICES, VCCI V-3 Class A ITE
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 90% (non-condensing)
Compatible Systems
- HPE Apollo 4200 Gen9 for Google
- HPE Nimble Storage dHCI Large Solution with
- HPE ProLiant DL380 Gen10, Medium Solution with
- HPE ProLiant DL360 Gen10, Small Solution with
- HPE ProLiant DL360 Gen10
- HPE ProLiant DL Series: DL180 Gen10, DL180 Gen10 Entry, DL180 Gen10 SMB, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL20 Gen9 Solution, DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Entry, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL385 Gen10, DL385 Gen10 Base, DL385 Gen10 Entry, DL385 Gen10 High-Performance, DL385 Gen10 Performance, DL385 Gen10 SMB, DL385 Gen10 Solution, DL388 Gen10 Network Choice, DL560 Gen10 Base, DL560 Gen10 for SAP HANA Compute Block, DL560 Gen10 Performance, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance
- HPE ProLiant DX Series: DX170r Gen10, DX380 Gen10, DX560 Gen10
- HPE ProLiant XL Series: XL170r Gen10, XL170r Gen10 24TB Server for Cohesity DataPlatform, XL170r Gen10 36TB Add-on Server for Cohesity DataPlatform, XL170r Gen10 Server for BlueData EPIC, XL190r Gen10, XL190r Gen10 for
- HPE Ezmeral Container Platform, XL270d Gen10, XL270d Gen10 for
- HPE Ezmeral Container Platform, XL450 Gen10
- HPE SimpliVity 325 Gen10 Node, 380 Gen10 G Node, 380 Gen10 H Node, 380 Gen10 Network Choice G Node, 380 Gen10 Network Choice H Node
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
