Product Information

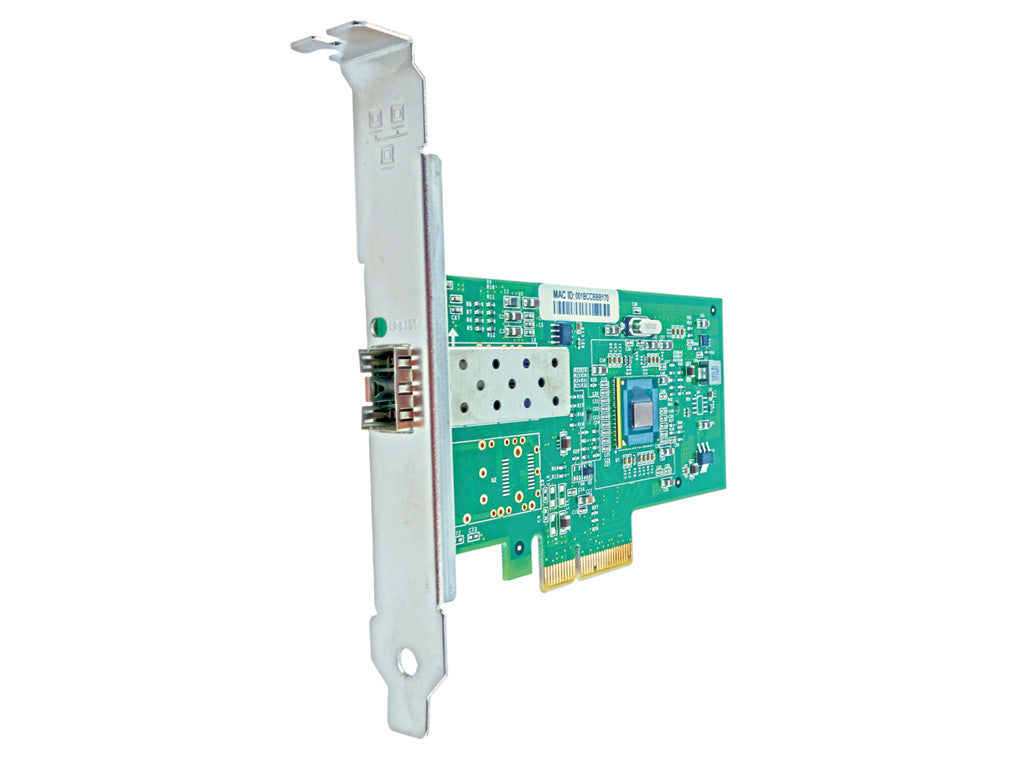

The HPE 394793-B21 is the NC373F multifunction Gigabit Ethernet adapter for fiber optic networks. It is a PCIe x4 card for standard or low profile slots in HPE ProLiant Gen5, Gen6 and Gen7 servers and Gen2 StorageWorks systems.
Key Features
- TCP/IP Offload Engine (TOE)
- iSCSI and RDMA over the same connection
- 1000Base-SX fiber interface
Also Supported
Accelerated iSCSI, Load balancing (TLB and SLB)
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 394793-B21
Option Part Number: 394793-B21
Spare Part Number: 395864-001
General
Product Type: Network Adapter
Form Factor: Plug-in Card
Adapter Details
Bus Type: PCI Express x4
PCI Spec Revision: PCIe 1.0a
Connectivity: Wired
Data Link Protocol: GigE
Transfer Rate: 1 Gbps
Status Indicators: Link activity
Features: Load balancing, Accelerated iSCSI, TCP/IP offloading
RAM: 92 KB
Connections
Network Ports: 1000Base-SX
Cabling: Ethernet 1000Base-SX
Ports: 1 x 1000Base-SX - LC x 2
Slot: 1 x PCI Express x4
Software and Compatibility
Supported Operating Systems: Microsoft Windows 2000 Server, Microsoft Windows Server 2003 Enterprise Edition, Microsoft Windows Server 2003 Standard Edition, Red Hat Enterprise Linux 3, Microsoft Windows Server 2003 Standard x64 Edition, Red Hat Enterprise Linux 4, Microsoft Windows Server 2003 Enterprise x64 Edition, SuSE Linux Enterprise Server 9 for x86/AMD64
Size and Weight
Depth: 6.60 inch
Height: 2.50 inch
Power and Environment
Compliance: IEEE 802.3z, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3p, FCC Class B certified, VCCI, EN 60950, EN55022, ICES-003, RRL, IEC 60950, EN55024, UL 60950, CSA 22.2 No. 60950, MIC, AS/NZS 3548, FCC CFR47 Part 15
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 90%
Compatible Systems
- HPE ProLiant DL Series: DL120 G6, DL120 G6 Base, DL120 G6 Performance, DL120 G7, DL120 G7 Base, DL120 G7 Entry, DL120 G7 Performance, DL160 G6, DL160se G6, DL165 G5, DL165 G6, DL165 G7, DL165 G7 Performance, DL170h G6, DL180 G6, DL185 G5, DL320 G6, DL320 G6 Entry, DL320 G6 High Efficiency, DL320 G6 Performance, DL360 G6, DL360 G6 Base, DL360 G6 Efficiency, DL360 G6 Entry, DL360 G6 Performance, DL360 G7, DL360 G7 Base, DL360 G7 Central Management Server, DL360 G7 Efficiency, DL360 G7 Entry, DL360 G7 Performance, DL365 G5 Base, DL365 G5 High Efficiency, DL365 G5 Performance, DL370 G6, DL370 G6 Base, DL370 G6 High Performance, DL370 G6 Performance, DL380 G6, DL380 G6 Base, DL380 G6 Entry, DL380 G6 High Efficiency, DL380 G6 Performance, DL380 G7, DL380 G7 Base, DL380 G7 Entry, DL380 G7 Performance, DL385 G5 Entry, DL385 G5p Base, DL385 G5p High Performance, DL385 G6, DL385 G6 Base, DL385 G6 Entry, DL385 G6 High Performance, DL385 G6 Performance, DL385 G7, DL385 G7 Base, DL385 G7 Entry, DL385 G7 HE, DL385 G7 Performance, DL580 G5 Highly Serviceable Tower, DL580 G7, DL580 G7 Base, DL580 G7 High Performance, DL585 G6, DL585 G6 Base, DL585 G7, DL585 G7 Base, DL585 G7 Performance, DL785 G5, DL785 G6, DL785 G6 Base, DL785 G6 Performance
- HPE ProLiant ML Series: ML150 G6, ML150 G6 Base, ML150 G6 Entry, ML150 G6 Performance, ML330 G6, ML330 G6 Base, ML330 G6 Entry, ML350 G6, ML350 G6 Base, ML350 G6 Entry, ML350 G6 Performance, ML370 G6, ML370 G6 Base, ML370 G6 Entry
- HPE ProLiant SL Series: SL160s G6, SL160z G6, SL165s G7, SL165z G7, SL170z G6, SL2x170z G6
- HPE StorageWorks All-in-One Storage System 1200r 12TB SATA Model, 1200r 2.4TB SAS Model, 1200r 3.6TB SAS Model, 1200r 3TB SATA Model, 1200r 5.4TB SAS Model, 1200r 6TB SATA Model, 1200r 9TB SATA Model, 400r 1.2TB SAS Model, 400r 1TB SATA Model, 400r 2TB SATA Model, 400t 1TB SATA Model, 400t 584GB SAS Model
- HPE StorageWorks Network Storage Gateway X3800 G2
- HPE StorageWorks Network Storage System X1400 G2, X1500 G2, X1600 G2, X1800 G2
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
