Product Information

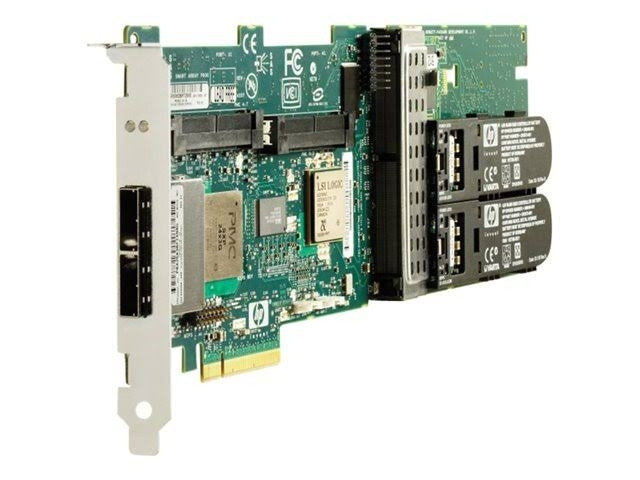

The HPE 398647-001 is a Smart Array P800 RAID controller with a 512MB Battery Backed Write Cache. This 16 port PCI Express x8 card works with SAS and SATA drives and reaches transfer rates of up to 300MBps, making it a fit for ProLiant servers from G2 through G7.
Key Features
- 16 ports for SAS and SATA hard drives
- 512MB cache with battery backup
- RAID 0, 1, 5, 6 (ADG) and 0+1
- Handles up to 108 storage devices
- PCI Express x8 host interface
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 398647-001
Option Part Number: 381513-B21
Spare Part Number: 398647-001
General
Product Type: Storage Controller (RAID)
Controller
Host Interface: PCI Express x8
Drive Interface: SATA-150 / SAS
Transfer Rate: 300MBps
Cache Size: 512MB
Supported Devices: Hard drive, disk array (RAID)
Max Storage Devices: 108
RAID Levels: RAID 0, RAID 1, RAID 5, RAID 6, ADG, RAID 0+1
Dimensions
Width x Depth x Height (approx.): 0.5 in x 12.2 in x 4.4 in
Compatible Systems
- HPE ProLiant DL Series: DL1000, DL120 Gen5, DL160 Gen5, DL165 Gen5, DL165 Gen5p, DL165 Gen6/Gen7, DL170h, DL180 Gen5, DL180 Gen6, DL180 Gen6/Gen7, DL185 Gen5, DL320 Gen5p, DL320s, DL360 Gen5, DL360 Gen6/Gen7, DL365 Gen5, DL370 Gen6/Gen7, DL380 Gen5, DL380 Gen6/Gen7, DL385 Gen2, DL385 Gen5, DL385 Gen5p, DL385 Gen6/Gen7, DL580 Gen4, DL580 Gen5, DL585 Gen2, DL585 Gen5, DL585 Gen6/Gen7, DL785 Gen5, DL785 Gen6/Gen7
- HPE ProLiant ML Series: ML310 Gen5p, ML330 Gen6/Gen7, ML350 Gen5, ML350 Gen6/Gen7, ML370 Gen5, ML370 Gen6/Gen7, ML570 Gen4
Not sure this controller fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
