Product Information

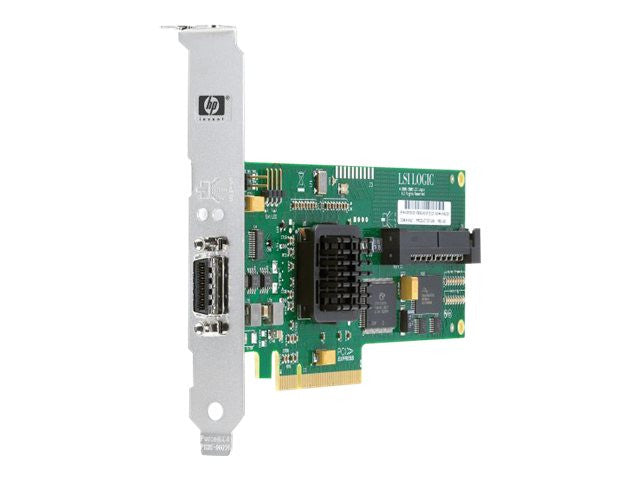

The HPE 416155-001 is an SC44Ge single port external SAS HBA for Modular Smart Array storage. It has a PCIe x8 interface and is made for HPE ProLiant Gen1 through Gen5 servers.
Key Features
- Basic RAID 0 and 1, plus low cost connections to tape and hard drives
- Handles 1.5Gb SATA and 3Gb SAS devices
- Up to 2.4GB/s of bandwidth, close to four times a dual channel U320 SCSI adapter
- Tested and integrated with many HPE ProLiant servers
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 416155-001
Option Part Number: 416096-B21
Spare Part Number: 416155-001
General
Product Type: Host Bus Adapter - Plug-in Card
Adapter Details
Host Bus: PCIe x8
Drive Interface: SATA 1.5Gb/s / SAS
Transfer Rate: 300 MBps
Supported Devices: Hard drive, tape drive, disk array (RAID)
Channels: 8
Max Drives: 29
RAID Levels: RAID 0, RAID 1
Connections
Ports: 1 x SATA 1.5Gb/s / SAS - 32 pin 4i MultiLane SAS (SFF-8484) ( internal ) 1 x SATA 1.5Gb/s / SAS - 4x InfiniBand (SFF-8470) ( external )
Slot: 1 x PCI Express x8
Software and Compatibility
Supported Operating Systems: SuSE Linux Enterprise Server, Microsoft Windows Server 2003 Enterprise Edition, Microsoft Windows Server 2003 Standard Edition, UnixWare 7.1.3, Microsoft Windows Small Business Server 2003, Red Hat Enterprise Linux, UnixWare 7.1.4, Microsoft Windows Server 2003 Standard x64 Edition, Microsoft Windows Server 2003 Enterprise x64 Edition, SCO OpenServer 6
Size and Weight
Width: 0.60 inch
Depth: 6.60 inch
Height: 2.50 inch
Compatible Systems
- HPE ProLiant DL Series: DL120 Gen5 DL140 Gen3 DL145 Gen3 DL160 Gen5 DL165 Gen5/Gen5p DL180 Gen5 DL320 Gen4/Gen5/Gen5p DL320s DL360 Gen5 DL365 Gen1/Gen5 DL380 Gen4/Gen5 DL385 Gen2/Gen5/Gen5p DL580 Gen4/Gen5 DL585 Gen2/Gen5 DL785 Gen5
- HPE ProLiant ML Series: ML110 Gen4/Gen5 ML115 Gen1/Gen5 ML150 Gen2/Gen3/Gen5 ML310 Gen3/Gen4/Gen5/Gen5p ML350 Gen5 ML370
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
