Product Information

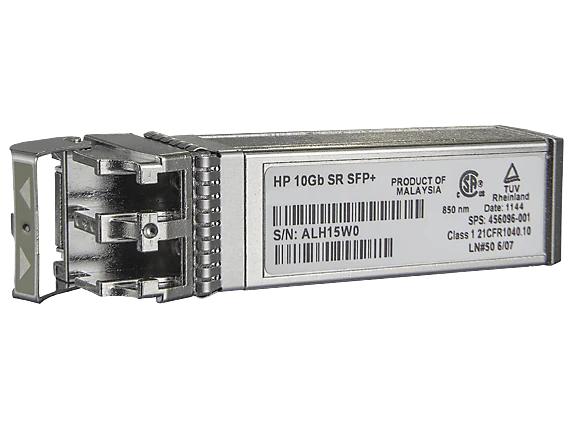

The HPE 455885-001 is a 10Gb SFP+ short range (SR) transceiver for HPE BladeSystem c-Class and ProLiant Gen7, Gen8 and Gen9 servers. It uses an 850nm LC duplex connection over multimode fiber.
Key Features
- 10GBASE-SR, 850nm, LC duplex connector
- Up to 300m on OM3 multimode fiber (listed max transfer distance 980 ft)
- Low power draw, under 0.8W for SR
- Hot pluggable, so it can be swapped without powering down
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Specifications
Brand: HPE
MPN: 455885-001
Option Part Number: 455883-B21
Spare Part Number: 456096-001
Assembly Number: 455885-001
General
Device Type: SFP+ Transceiver Module
Form Factor: Plug-in Module
Transceiver Form Factor: SFP+
Networking
Connectivity Technology: Wired
Cabling Type: 10GBase-SR
Data Link Protocol: 10 Gigabit Ethernet
Data Transfer Rate: 10 Gbps
Max Transfer Distance: 980 ft
Ports: 1 LC 10-GbE port (IEEE 802.3ae Type 10Gbase-SR), Duplex: full only
Connector Type: LC
Wavelength: 850 nm
Cable type: 62.5/125 µm or 50/125 µm (core/cladding) diameter, graded-index, low metal content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC793-2Type A1b or A1a, respectively
Fiber type: Multi Mode
Maximum distance: 2-26m with 62.5 µm multimode cable @ 160 MHz*km 2-33m with 62.5 µm multimode cable @ 200 MHz*km 2-66m with 50 µm multimode cable @ 400 MHz*km 2-82m with 50 µm multimode cable @ 500 MHz*km 2-300m with 50 µm multimode cable @ 2000 MHz*km
Expansion & Connectivity
Interfaces: 1 x Ethernet 10GBase-SR - LC multi-mode x 2
Compatible Slots: 1 x SFP+
Product Dimensions & Weight
Width: 0.54 inch (1.38 cm)
Height: 0.47 inch (1.19 cm)
Depth: 2.19 inch (5.57 cm)
Weight: 0.04 lbs (0.02 kg)
Compatible Systems
- HPE BLc3000 Enclosure
- HPE BLc7000 Single-Phase Enclosure w/2 Power Supplies and 4 Fans w/8 Insight Control Environment Trial Licenses, w/6 Power Supplies and 10 Fans w/16 Insight Control Environment Licenses
- HPE BLc7000 Three-Phase Enclosure w/6 Power Supplies and 10 Fans w/16 Insight Control Environment Licenses
- HPE ProLiant DL Series: DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL980 Gen7
- HPE SimpliVity 380 Gen10 Node, 380 Gen9 Node
- HPE Virtual Connect Flex-10
Not sure this transceiver fits your equipment? Send us your switch, server or storage model and the DatorPro team will confirm compatibility before you order.
