Product Information

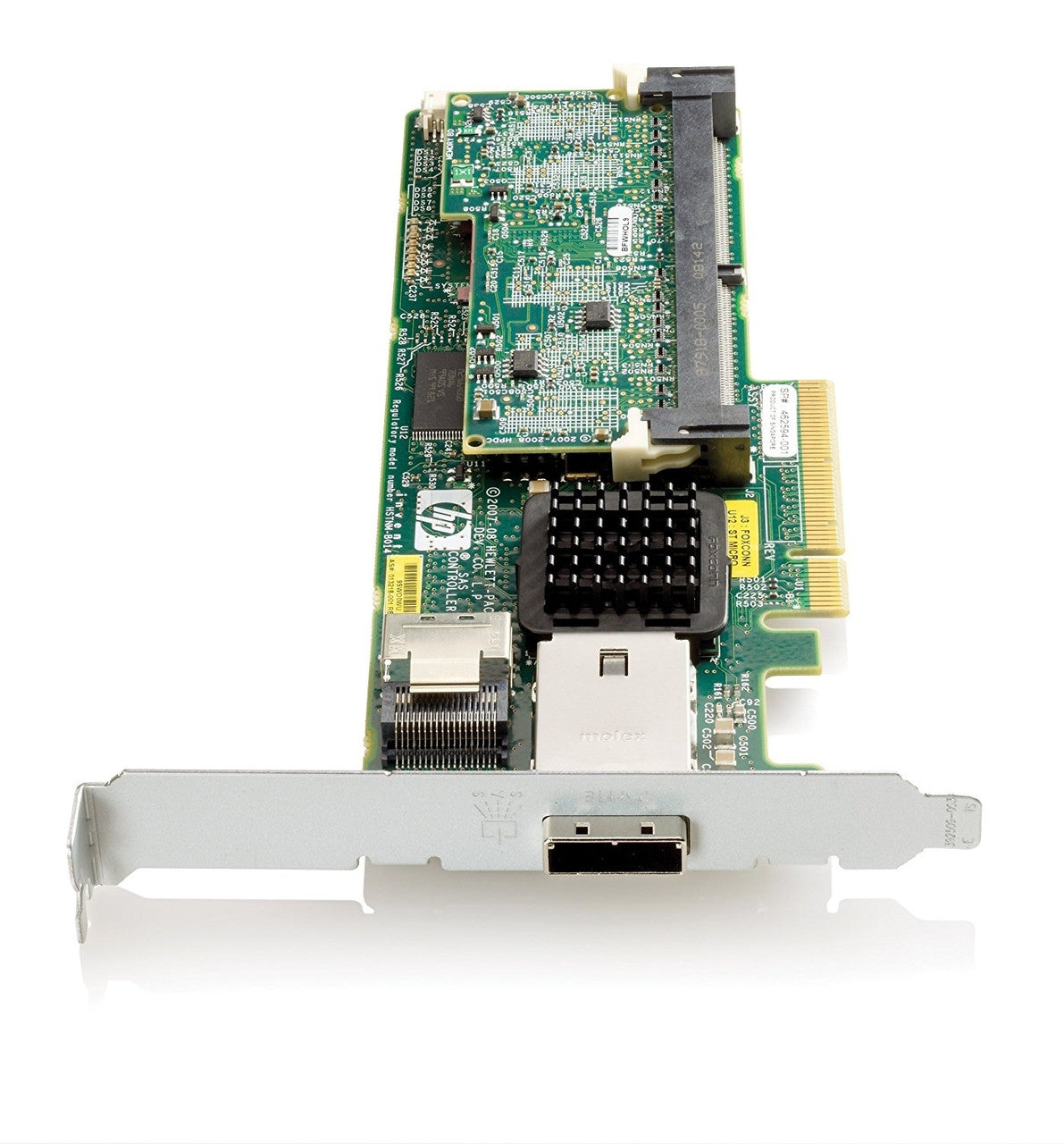

The HPE 462834-B21 is a Smart Array P212 RAID controller with 256MB of cache. It is a dual port PCIe 2.0 x8 plug-in card for SATA-150 and SAS-300 drives.
Key Features
- RAID 0, 1, 5, 10 and 50
- Transfer rates up to 300MBps
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 462834-B21
Option Part Number: 462834-B21
Spare Part Number: 462594-001
General
Product Type: Storage controller (RAID) - Plug-in Card - Low Profile
Controller
Host Bus: PCIe 2.0 x8
Drive Interface: SATA 1.5Gb/s / SAS
Transfer Rate: 300 MBps
Cache Size: 256 MB
Supported Devices: Hard drive, disk array (RAID)
RAID Levels: RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
Connections
Ports: 1 x SATA 1.5Gb/s / SAS - 32 pin 4i MultiLane SAS (SFF-8484) (internal) 1 x SATA 1.5Gb/s / SAS - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) (external)
Slot: 1 x PCI Express x8
Size and Weight
Width: 2.20 inch
Depth: 9.50 inch
Height: 7.50 inch
Compatible Systems
- HPE ProLiant DL Series: DL1000 DL120 Gen6 Gen7 DL160 Gen6 Gen7 DL160se Gen6 Gen7 DL165 Gen6 Gen7 DL170h DL180 Gen6 Gen7 DL185 Gen5 DL320 Gen6 Gen7 DL360 Gen6 Gen7 DL365 Gen5 DL370 Gen6 Gen7 DL380 Gen6 Gen7 DL385 Gen5p DL385 Gen6 Gen7 DL585 Gen6 Gen7 DL785 Gen5 DL785 Gen6 Gen7
- HPE ProLiant ML Series: ML150 Gen6 Gen7 ML310 Gen5p ML330 Gen6 Gen7 ML350 Gen6 Gen7 ML370 Gen6
Not sure this controller fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
