Product Information

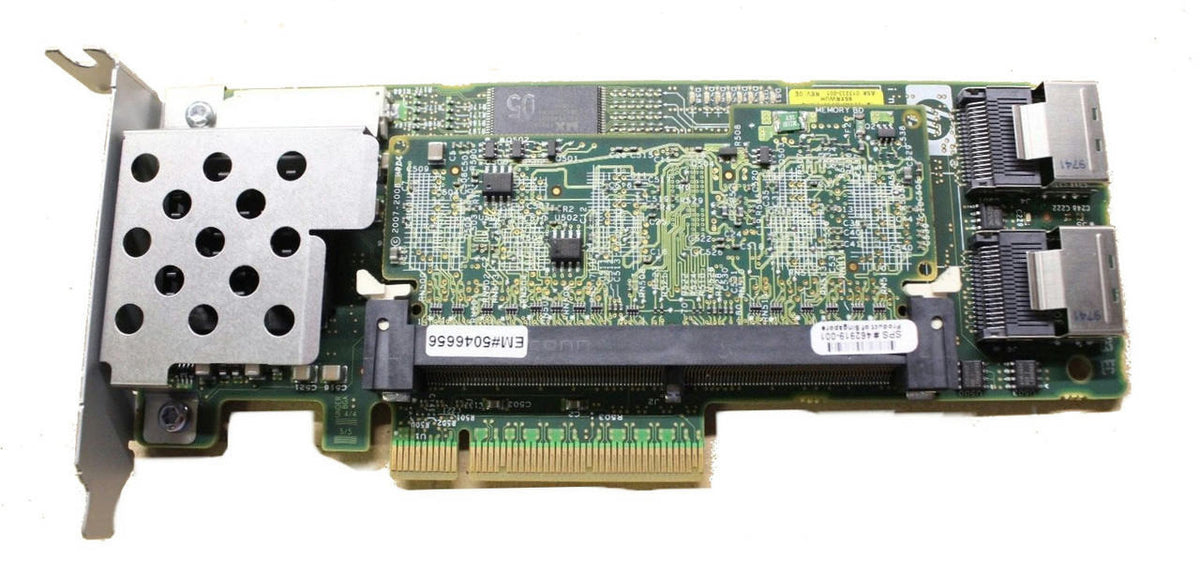

The HPE 462864-B21 is a Smart Array P410 RAID controller that comes with 512MB of Battery Backed Write Cache. This low profile PCIe 2.0 x8 card connects SAS 6Gb/s and SATA 3Gb/s drives through two internal ports and handles RAID 0, 1, 5, 10 and 50 with up to 600 MBps of throughput.
Key Features
- 512MB BBWC for faster, protected write operations
- RAID 0, 1, 5, 10 and 50 support
- Up to 64 storage devices
- PowerPC 440 processor on board
- Low profile card for a PCIe x8 slot
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HP
MPN: 462864-B21
Option Part Number: 462864-B21
Spare Part Number: 462975-001
General
Product Type: Storage Controller (RAID) - Plug-in Card - Low Profile
Controller
Host Bus: PCIe 2.0 x8
Drive Interface: SATA 3Gb/s / SAS 6Gb/s
Transfer Rate: 600 MBps
Cache Size: 512 MB
Supported Devices: Hard drive, disk array (RAID)
Max Storage Devices: 64
RAID Levels: RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
Processor: PowerPC 440
Connections
Ports: 2 x SATA 3Gb/s / SAS 6Gb/s (internal)
Compatible Slots: 1 x PCI Express x8
Dimensions
Width: 2.20 inch
Depth: 9.50 inch
Height: 7.50 inch
Compatible Systems
- HPE ProLiant DL Series: DL120 Gen7, DL120 Gen7 Base, DL120 Gen7 Entry, DL120 Gen7 Performance, DL160 Gen6, DL160se Gen6, DL165 Gen6, DL165 Gen7, DL165 Gen7 Base, DL165 Gen7 Entry, DL165 Gen7 Performance, DL170h Gen6, DL180 Gen6, DL185 Gen5, DL2x170h Gen6, DL320 Gen6, DL320 Gen6 Entry, DL320 Gen6 High Efficiency, DL320 Gen6 Performance, DL360 Gen6, DL360 Gen6 Base, DL360 Gen6 Efficiency, DL360 Gen6 Entry, DL360 Gen6 Performance, DL365 Gen5, DL365 Gen5 Base, DL365 Gen5 Entry, DL365 Gen5 High Efficiency, DL365 Gen5 Performance, DL370 Gen6, DL370 Gen6 Base, DL370 Gen6 High Performance, DL370 Gen6 Performance, DL380 Gen6, DL380 Gen6 Base, DL380 Gen6 Entry, DL380 Gen6 High Efficiency, DL380 Gen6 Performance, DL380 Gen7, DL380 Gen7 Base, DL380 Gen7 Entry, DL380 Gen7 Performance, DL385 Gen5p, DL385 Gen5p Base, DL385 Gen5p Entry, DL385 Gen5p High Performance, DL385 Gen6, DL385 Gen6 Base, DL385 Gen6 Entry, DL385 Gen6 High Performance, DL385 Gen7, DL385 Gen7 Base, DL385 Gen7 Entry, DL385 Gen7 HE, DL385 Gen7 Performance, DL4x170h Gen6, DL580 Gen5, DL580 Gen5 Base, DL580 Gen5 High Performance, DL580 Gen7, DL580 Gen7 Base, DL580 Gen7 High Performance, DL585 Gen5, DL585 Gen5 High Performance, DL585 Gen6, DL585 Gen6 Base, DL585 Gen6 Performance, DL585 Gen7, DL585 Gen7 Base, DL585 Gen7 Performance, DL785 Gen5, DL785 Gen6, DL785 Gen6 Base, DL785 Gen6 Performance
- HPE ProLiant ML Series: ML110 Gen7, ML110 Gen7 Base, ML110 Gen7 Entry, ML110 Gen7 Performance, ML150 Gen6, ML150 Gen6 Base, ML150 Gen6 Entry, ML150 Gen6 Performance, ML310 Gen5, ML310 Gen5p, ML330 Gen6, ML330 Gen6 Base, ML330 Gen6 Entry, ML350 Gen6, ML350 Gen6 Base, ML350 Gen6 Entry, ML350 Gen6 Performance, ML370 Gen6, ML370 Gen6 Base, ML370 Gen6 Entry
- HPE ProLiant SL Series: SL160z Gen6, SL165s Gen7, SL165z Gen6, SL165z Gen7, SL170z Gen6, SL2x170z Gen6
Not sure this controller fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
