Product Information

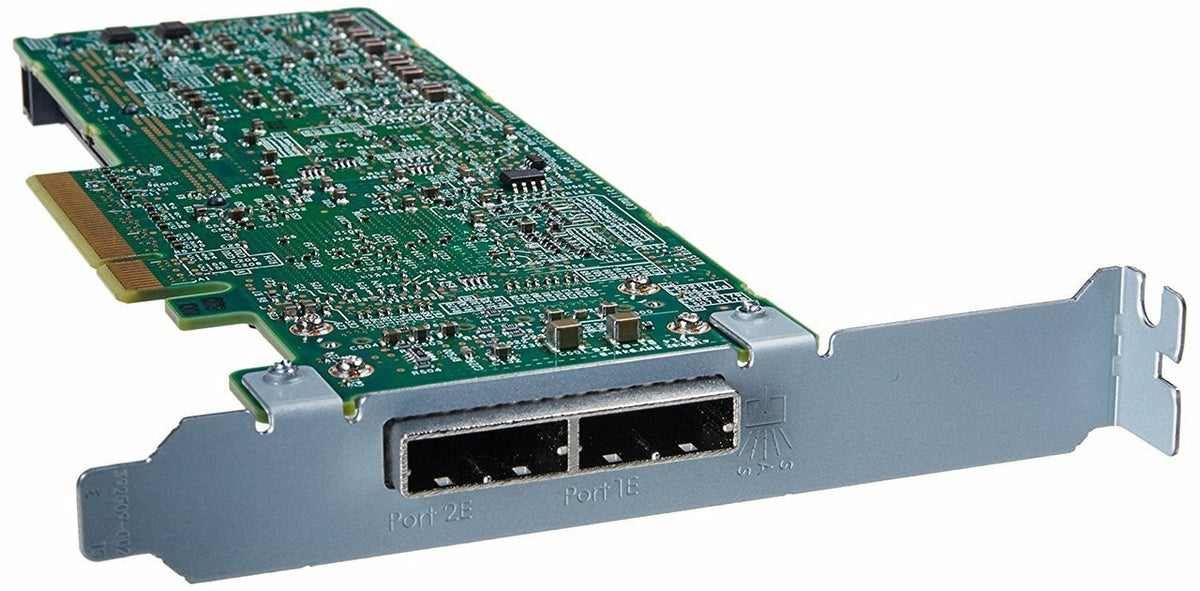

The HPE 462918-001 is a Smart Array P411 RAID controller with 256MB of flash backed write cache (FBWC). It is a dual port, low profile PCIe 2.0 x8 plug-in card for SAS and SATA drives.
Key Features
- RAID 0, 1 and 10
- Transfer rates up to 300MBps
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 462918-001
Option Part Number: 462830-B21
Spare Part Number: 462918-001
General
Product Type: Storage controller (RAID) - Plug-in Card - Low Profile
Controller
Host Bus: PCIe 2.0 x8
Drive Interface: SATA Gb/s / SAS
Transfer Rate: 600 MBps
Cache Size: 256 MB
Supported Devices: Hard drive, disk array (RAID)
Max Drives: 64
RAID Levels: RAID 0, RAID 1, RAID 10
Processor: PowerPC 440
Connections
Ports: 2 x SATA / SAS - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) (external)
Slot: 1 x PCI Express x8
Size and Weight
Width: 2.20 inch
Depth: 9.50 inch
Height: 7.50 inch
Compatible Systems
- HPE ProLiant DL Series: DL1000 DL120 Gen6 Gen7 DL160 Gen6 Gen7 DL160se Gen6 Gen7 DL165 Gen6 Gen7 DL170h DL180 Gen6 Gen7 DL360 Gen6 Gen7 DL365 Gen5 DL370 Gen6 Gen7 DL380 Gen6 Gen7 DL385 Gen5p DL385 Gen6 Gen7 DL585 Gen5 DL585 Gen6 Gen7 DL785 Gen5 DL785 Gen6 Gen7
- HPE ProLiant ML Series: ML150 Gen6 Gen7 ML310 Gen5p ML330 Gen6 Gen7 ML350 Gen6 Gen7 ML370 Gen6
Not sure this controller fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
