Product Information

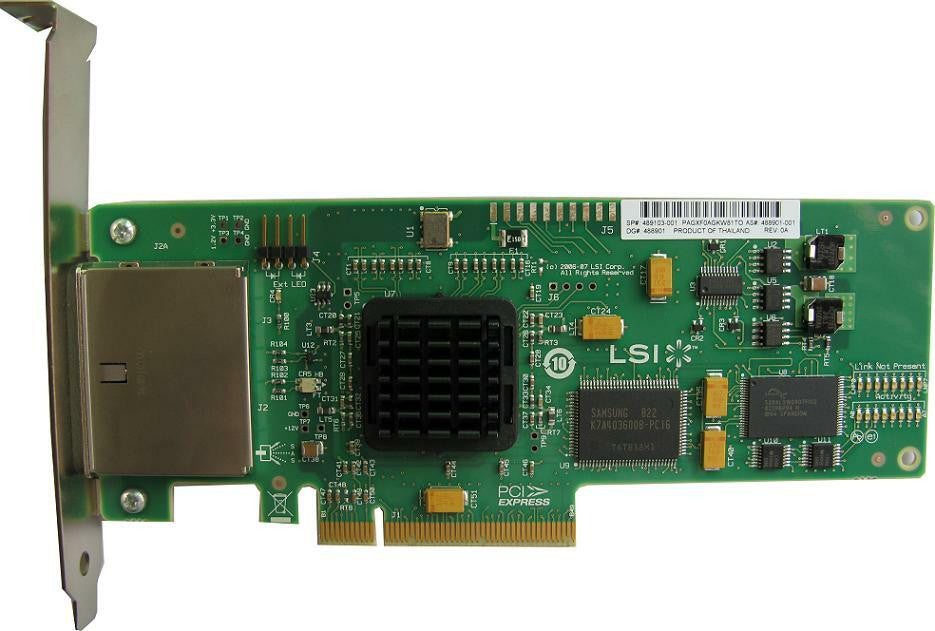

The HPE 489103-001 is an SC08e dual port SAS/SATA Host Bus Adapter rated at 300MBps. It is a low profile PCIe plug-in card for HPE ProLiant Gen5, Gen6 and Gen7 servers.
Key Features
- Designed to connect to an HPE MSA2000sa
- Handles 1.5Gb SATA and 3Gb SAS devices
- Up to 2.4GB/s of bandwidth, close to four times a dual channel U320 SCSI adapter
- Tested and integrated with many HPE ProLiant servers
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 489103-001
Option Part Number: 488765-B21
Spare Part Number: 489103-001
General
Product Type: Host Bus Adapter
Form Factor: Plug-In Card - Low Profile, Plug in Card
Designed For: Select HPE ProLiant Servers
Adapter Details
Bus Type: PCI Express 2.0 x8
Drive Interface: PCI Express
Transfer Rate: 300 MB/s Per Port
Connections
External Connectors: 2X SAS
Software and Compatibility
Supported Systems: Select HPE ProLiant Servers
Compatible Systems
- HPE ProLiant DL Series: DL320 Gen6 Gen7 DL360 Gen6 Gen7 DL365 Gen5 DL370 Gen6 Gen7 DL380 Gen6 Gen7 DL385 Gen5 DL385 Gen5p DL385 Gen6 Gen7 DL585 Gen5 DL585 Gen6 Gen7 DL785 Gen5 DL785 Gen6 Gen7
- HPE ProLiant ML Series: ML310 Gen5p ML330 Gen6 Gen7 ML350 Gen6 Gen7 ML370 Gen6
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
