Product Information

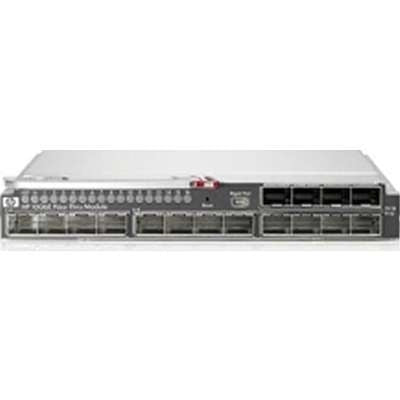

The HPE 504624-001 is a 16 port 10Gb Ethernet Pass-Thru module for HPE BladeSystem c-Class enclosures. It links each blade server's 10G or 1G Ethernet port straight to an external switch.
Key Features
- 16 x 10Gb SFP+ ports
- Direct 1:1 connections: no switching, no blocking, low latency
- Works with c3000 and c7000 enclosures
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Specifications
Brand: HPE
MPN: 504624-001
Option Part Number: 538113-B21
Spare Part Number: 504624-001
General
Device Type: Switch - 16 ports
Enclosure Type: Plug-in module
Subtype: 10 Gigabit Ethernet
Ports: 16 x 10 Gigabit SFP+
Performance:
Bandwidth : 320 Gbps
Features: Auto-negotiation, manageable
Status Indicators: Port status, link activity
Expansion & Connectivity
Interfaces: 16 x 10Gb Ethernet - SFP+ 1 x USB - management
Dimensions & Weight
Width: 7.60 inch
Depth: 10.60 inch
Height: 1.10 inch
Weight: 3.50 lbs
Environmental Parameters
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Humidity Range Operating: 5 - 95% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Miscellaneous
Compliant Standards: VCCI, BSMI CNS 13438 Class A, EN55022, EN55024, AS/NZ 3548 Class A, MIC, UL 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1
Compatible Systems
- HPE BLc3000 Enclosure
- HPE BLc3000 Single-Phase Enclosure
- HPE BLc7000 Enclosure
- HPE BLc7000 Enclosure Model X
- HPE BLc7000 Single-Phase Enclosure
- HPE BLc7000 Three-Phase Enclosure
Not sure this fits your network? Send us your switch or enclosure model and the DatorPro team will confirm compatibility before you order.
