Product Information

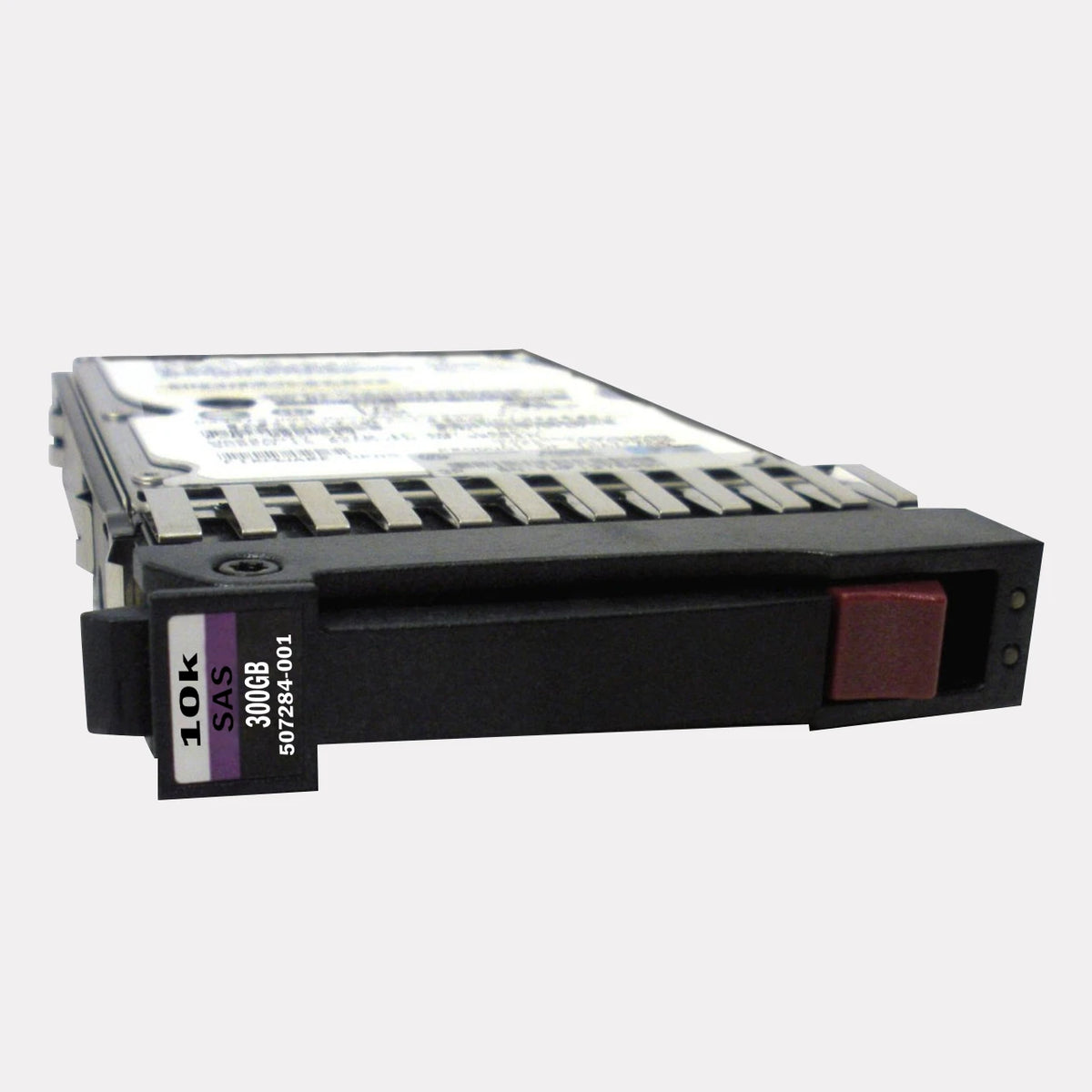

HPE 507127-B21 300GB Enterprise Hard Drive for ProLiant Generation4 to Generation7 Servers. This 2.5 inch Small Form Factor (SFF) drive spins at 10,000 RPM, connects through a dual port SAS 6Gbps interface and supports hot swap installation.
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Enterprise class SAS drives are built for servers that stay busy around the clock. A 10,000 RPM spindle keeps access times short, which makes this drive a good match for databases, virtual machines, email servers and other workloads that handle lots of small, random reads and writes.
The SAS 6Gbps interface gives this drive a reliable, server grade connection. SAS drives can be swapped while the system is running and are designed for nonstop duty in rack servers and storage arrays.
Part Numbers
Brand: HPE
MPN: 507127-B21
Option Part Number: 507127-B21
Spare Part Number: 507284-001
Model Number: DG0300FAMWN
Model Number: DG0300FARVV
Model Number: EG0300FARTT
Model Number: EG0300FAWHV
Model Number: EG0300FAWJD
Model Number: EG0300FBDBR
Model Number: EG0300FBDSP
Model Number: EG0300FBLSE
Model Number: EG0300FCSPH
Model Number: EG0300FCVBF
Model Number: EG0300FBVFL
Model Number: EG0300FCHHR
Model Number: EG0300JEHLV
Model Number: EG0300JFCKA
Model Number: EG000300JWBHR
Model Number: EG000300JWEBF
Model Number: EG000300JWFUQ
Model Number: EG0300JEHLV
Assembly Number: 507119-002
Assembly Number: 518194-002
Assembly Number: 518011-002
Assembly Number: 507119-004
Assembly Number: 518194-004
Assembly Number: 597609-001
Assembly Number: 599476-001
Assembly Number: 619286-001
Assembly Number: 689287-001
Assembly Number: 693569-001
Assembly Number: 641552-001
Assembly Number: 666355-001
Assembly Number: 768788-001
Assembly Number: 781514-003
Assembly Number: 862119-001
Assembly Number: 869714-001
Assembly Number: 872283-001
Assembly Number: 768788-001
HPE GPN: 507129-004
Drive Details
Device Type: Hard Drive - Hot-Swap
Capacity: 300 GB
Form Factor: 2.5 Inch SFF
Interface: SAS 6Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Carrier Type: Standard Carrier
Workload Type: Enterprise
Plug Type: Hot Plug
Enclosure Type: Hot-Swap
Features: Dual Port
Bundled with: HPE Standard Carrier
Speed and Throughput
Drive Transfer Rate: 6 Gb/sec (external)
Spindle Speed: 10000 RPM
Average Seek Time: 4 ms
Max Seek Time: 7.45 ms
Track-to-Track Seek Time: 0.2 ms
Connection
Interfaces: 1 x SAS 6Gb/s
Compatible Bays: 2.5" SFF
Size and Weight
Width: 3.11 inch (7.90 cm)
Height: 0.63 inch (1.60 cm)
Depth: 5.45 inch (13.80 cm)
Weight: 1.60 lbs
Operating Environment
Max Operating Temperature: 35 °C
Min Operating Temperature: 10 °C
Compatible Systems
HPE Integrity BL Series: BL860c i2, BL870c i2, BL890c i2 Servers
HPE ProLiant BL Series: BL460c Gen6, BL460c Gen7, BL465c Gen6, BL465c Gen7, BL620C Gen7, BL680c Gen7, BL685c Gen6, BL685c Gen7 Servers
HPE ProLiant DL Series: DL160 Gen6, DL160se Gen6, DL165 Gen7, DL165 Gen7 Performance, DL180 Gen6, DL320 Gen6, DL360 Gen6, DL360 Gen6 Base, DL360 Gen6 Efficiency, DL360 Gen6 Entry, DL360 Gen6 Performance, DL360 Gen7, DL360 Gen7 Base, DL360 Gen7 Central Management Server, DL360 Gen7 Efficiency, DL360 Gen7 Entry, DL360 Gen7 Performance, DL370 Gen6, DL370 Gen6 Base, DL370 Gen6 High Performance, DL370 Gen6 Performance, DL380 Gen6, DL380 Gen6 Base, DL380 Gen6 Entry, DL380 Gen6 High Efficiency, DL380 Gen6 Performance, DL380 Gen7, DL380 Gen7 Base, DL380 Gen7 Efficiency, DL380 Gen7 Entry, DL380 Gen7 Performance, DL385 Gen6, DL385 Gen6 Base, DL385 Gen6 Entry, DL385 Gen6 High Performance, DL385 Gen7, DL385 Gen7 Base, DL385 Gen7 Entry, DL385 Gen7 HE, DL385 Gen7 Performance, DL580 Gen5 Highly Serviceable Tower, DL580 Gen7, DL580 Gen7 Base, DL580 Gen7 High Performance, DL585 Gen5 Performance, DL585 Gen6, DL585 Gen6 Base, DL585 Gen6 Performance, DL585 Gen7, DL585 Gen7 Base, DL585 Gen7 Performance, DL785 Gen6, DL785 Gen6 Base, DL785 Gen6 Performance, DL980 Gen7 Servers
HPE ProLiant ML Series: ML110 Gen7, ML350 Gen6, ML350 Gen6 Base, ML350 Gen6 Performance, ML370 Gen6, ML370 Gen6 Base, ML370 Gen6 Entry Servers
HPE ProLiant WS Series: WS460c Gen6 Workstation Blade
HPE Modular Smart Array: P2000 Gen3 FC MSA Dual Controller Virtualization SAN Starter Kit
HPE StorageWorks D2200sb PCIe Storage Blade
HPE StorageWorks Disk Enclosure D2700
HPE StorageWorks Modular Smart Array: 2324fc Gen2 Dual Controller, 2324sa Gen2 DL380 Gen6 Package Cluster, 2324sa Gen2 Dual Controller, 70 Dual Domain, P2000 2.5-in Drive Bay Chassis and P2000 Gen3 FC/iSCSI Dual Combo Controller SFF Array
HPE StorageWorks Network Storage Blade X1800sb Gen2
HPE StorageWorks Network Storage Gateway X3800sb Gen2
HPE StorageWorks Network Storage System: X1600, X1600 292GB SAS Model, X1600 3TB SAS Model, X1600 5.4TB SAS Model, X1600 7.5TB SAS Model, X1600 Gen2, X1800, X1800 2.4TB SAS Model, X1800 292GB SAS Model, X1800 3.6TB SAS Model and X1800 Gen2
Not sure this drive fits your system? Send us your server or storage model and we will confirm compatibility before you order.
