Product Information

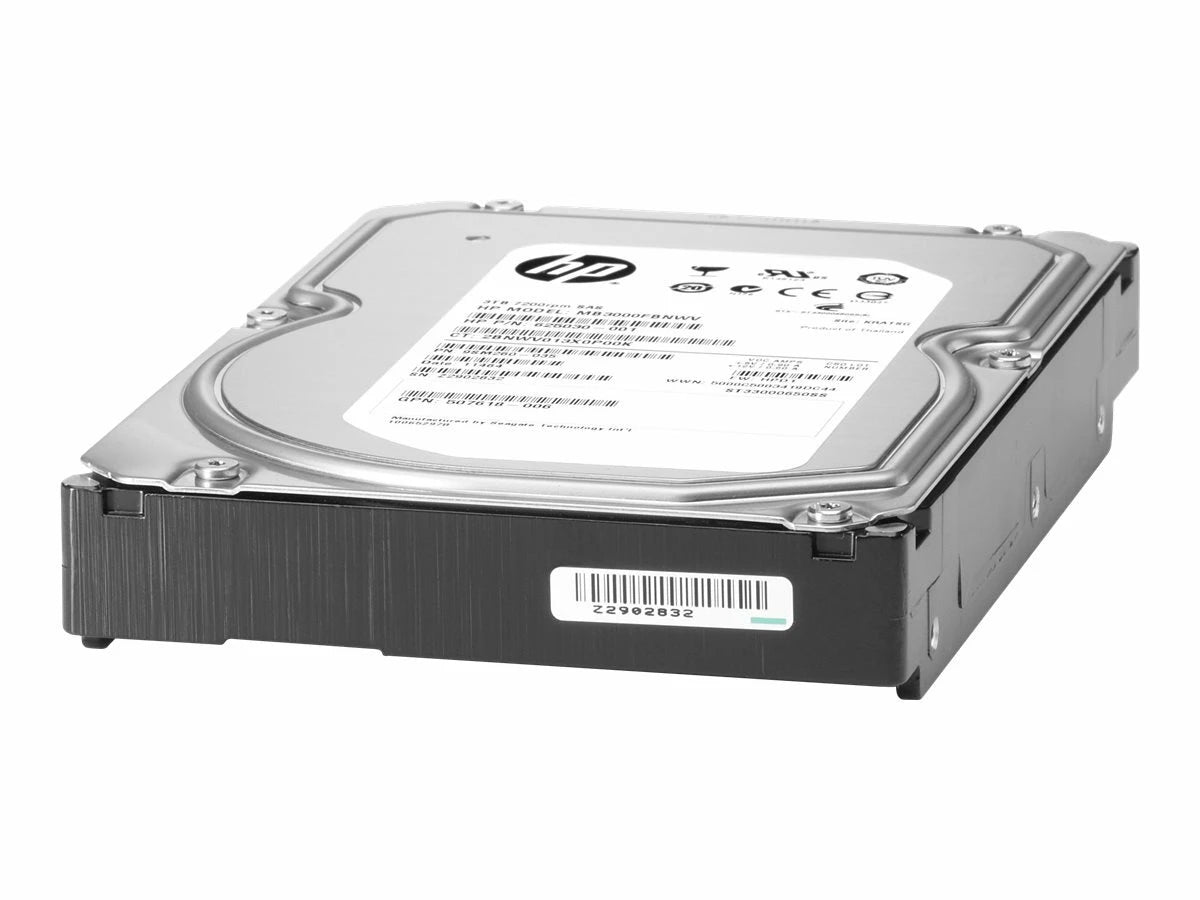

The HPE 507772-B21 is a 1TB midline hard drive running at 7,200 RPM. It is a 3.5 inch large form factor (LFF) drive with a 3Gb SATA interface, supplied with a non hot plug carrier, for HPE ProLiant Gen2 through Gen7 servers.
Key Features
- 1TB capacity at 7.2K RPM
- SATA 3Gb/s interface
- 3.5 inch LFF
- Non hot plug carrier
- Midline class
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Specifications
Brand: HPE
MPN: 507772-B21
Option Part Number: 507772-B21
Spare Part Number: 508039-001
Model Number: GB1000EAFJL
Model Number: GB1000EAMYC
Model Number: MB1000EAMZE
Model Number: MB1000EBNCF
Model Number: MB1000EBZQB
Model Number: MB1000ECWCQ
Assembly Number: 482483-004
Assembly Number: 507515-002
Assembly Number: 507631-002
Assembly Number: 622519-001
Assembly Number: 649401-002
Assembly Number: 695502-001
General
Device Type: Hard Drive - Internal
Capacity: 1 TB
Form Factor: 3.5 inch LFF
Interface Type: SATA 3Gbps
Drive Technology (Fill): Air
Bytes Per Sector: 512
Carrier Type: Non Hot Plug Carrier Raw (RW)
Workload Type: Business Critical (Midline)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Performance
Drive Transfer Rate: 3 Gb/sec
Drive Rotational Speed: 7200 RPM
Single Track Seek Time: 2.00 ms
Average Seek Time: <8.50 ms
Full-Stroke Seek Time: 25.00 ms
Expansion & Connectivity
Interfaces: 1 x SATA 3 Gb/s
Compatible Bay: 3.5" LFF
Environmental Parameters
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Compatible Systems
- HPE ProLiant DL Series: DL140 Gen3 DL145 Gen3 DL160 Gen5 DL165 Gen5 DL165 Gen5p DL180 Gen5 DL180 Gen6 DL185 Gen5 DL320 Gen3 DL320 Gen4 DL320 Gen5 DL320 Gen5p DL320s DL360 Gen4 DL360 Gen4p DL385 Gen5p
- HPE ProLiant ML Series: ML110 Gen1 ML110 Gen2 ML150 Gen2 ML150 Gen3 ML150 Gen5 ML150 Gen6 ML310 Gen2 ML310 Gen3 ML310 Gen4 ML310 Gen5 ML310 Gen5p
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
