Product Information

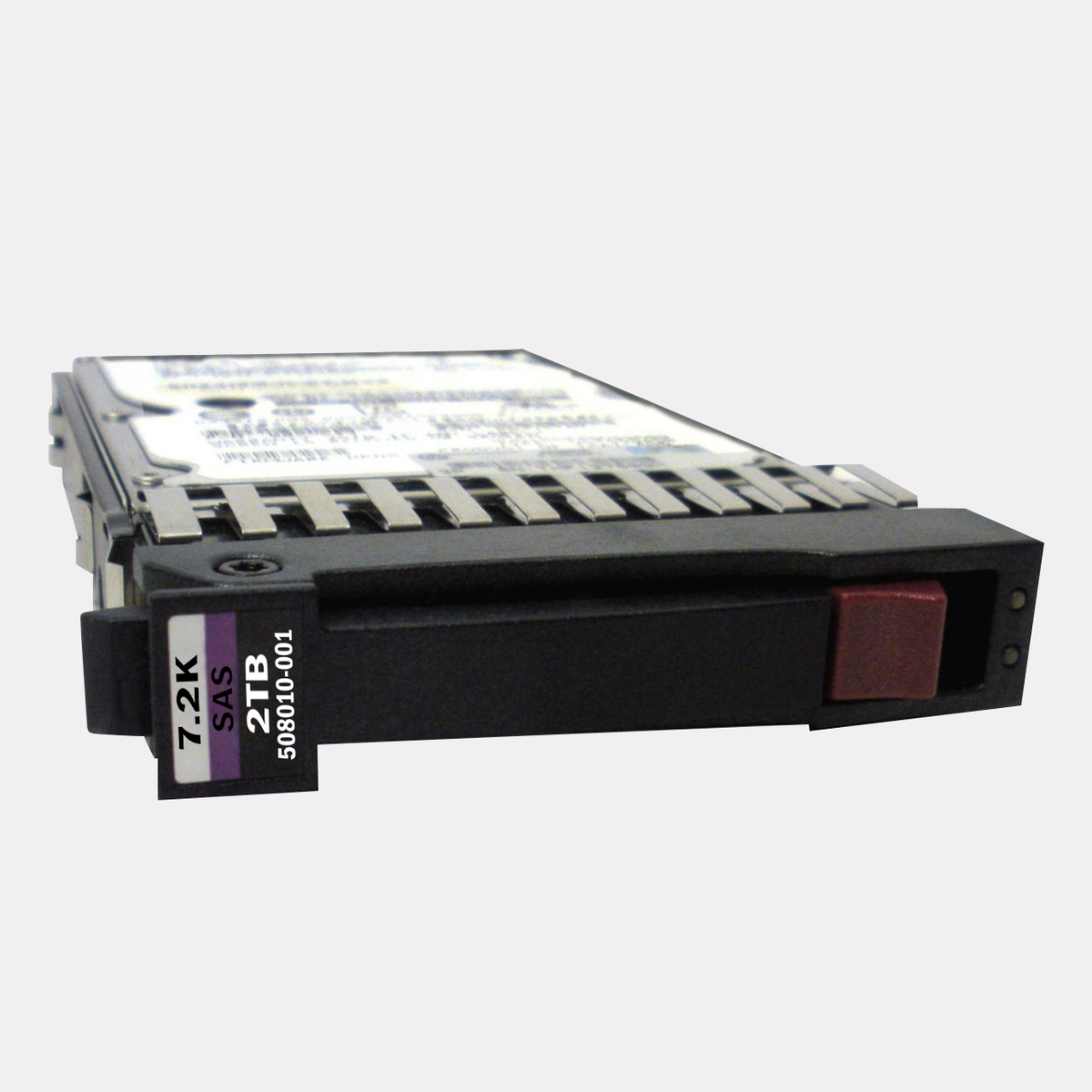

HPE 508010-001 2TB Midline Hard Drive for Generation1 to Generation7 Servers. This 3.5 inch Large Form Factor (LFF) drive spins at 7,200 RPM, connects through a dual port SAS 6Gbps interface and supports hot swap installation.
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
When the goal is storing a lot of data at a sensible cost, a midline drive is the practical choice. This 7,200 RPM drive suits backup targets, file servers, archive tiers and other capacity driven storage where every drive slot counts.
SAS (Serial Attached SCSI) is the standard interface for server and storage drives. It supports hot swapping and full duplex data transfer, which is why it remains the common choice for systems that need to stay online.
Part Numbers
Brand: HPE
MPN: 508010-001
Option Part Number: 507616-B21
Spare Part Number: 508010-001
Model Number: MB2000FBZPN
Model Number: MB2000FAMYV
Model Number: MB2000FCWDF
Model Number: MB2000FCWDF
Model Number: MB2000FBUCL
Model Number: MB2000FCZGH
Model Number: MB2000FCQPF
Model Number: MB2000FCVBV
Assembly Number: 649327-002
Assembly Number: 507613-002
Assembly Number: 695507-002
Assembly Number: 695507-006
Assembly Number: 638521-001
Assembly Number: 698695-001
Assembly Number: 625030-002
Assembly Number: 693672-001
Drive Details
Device Type: Hard Drive - Hot-Swap
HDD Capacity: 2 TB
Form Factor: 3.5 inch LFF
Interface: SAS-6Gbps
Bytes per Sector: 512
Buffer: 16 MB
Drive Technology (Fill): Air
Carrier Type: Standard Carrier
Workload: Midline
Features: Dual Port
Bundled with: HPE Standard Carrier
Speed and Throughput
Seek Time: 8.5 ms (average) / 16.2 ms (max)
Spindle Speed: 7200 RPM
External Data Transfer Rate: 600 MBps
Track-to-Track Seek Time: 0.5 ms
Connection
Interfaces: 1 x SAS 6 Gb/s
Compatible Bay: 3.5" LFF
Size and Weight
Width: 4.30 inch
Depth: 7.40 inch
Height: 1.00 inch
Operating Environment
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Compatible Systems
HPE ProLiant DL Series: DL1000 DL120 (Gen6 Gen7) DL160 (Gen6 Gen7) DL160se (Gen6 Gen7) DL165 (Gen6 Gen7) DL170e (Gen6 Gen7)DL170h (Gen6 Gen7) DL180 (Gen6 Gen7) DL320 (Gen6 Gen7) DL360 (Gen4p Gen5 Gen6 Gen7) DL365 (Gen1 Gen5 Gen6 Gen7)DL370 (Gen6 Gen7) DL380 (Gen4 Gen5 Gen6 Gen7) DL385 (Gen1 Gen2 Gen3 Gen4 Gen5/Gen5p Gen6 Gen7)DL580 (Gen3 Gen4 Gen5 Gen6 Gen7) DL585 (Gen2 Gen3 Gen4 Gen6 Gen7) DL785 (Gen6)
HPE ProLiant ML Series: ML 110 (Gen7) ML350 (Gen5 Gen6 Gen7) ML370 (Gen5 Gen6 Gen7) ML570 (Gen3 Gen4 Gen5)
HPE Storage Systems: D2700 MSA 1040 MSA70 P2000 (Gen3) X1500 (Gen2) X16000 (Gen2) X1800 (Gen2) X3400 (Gen2)
HPE StoragEeasy: X3800 (Gen2) 2000i (Gen2) 2000sa (Gen2)
Not sure this drive fits your system? Send us your server or storage model and we will confirm compatibility before you order.
