Product Information

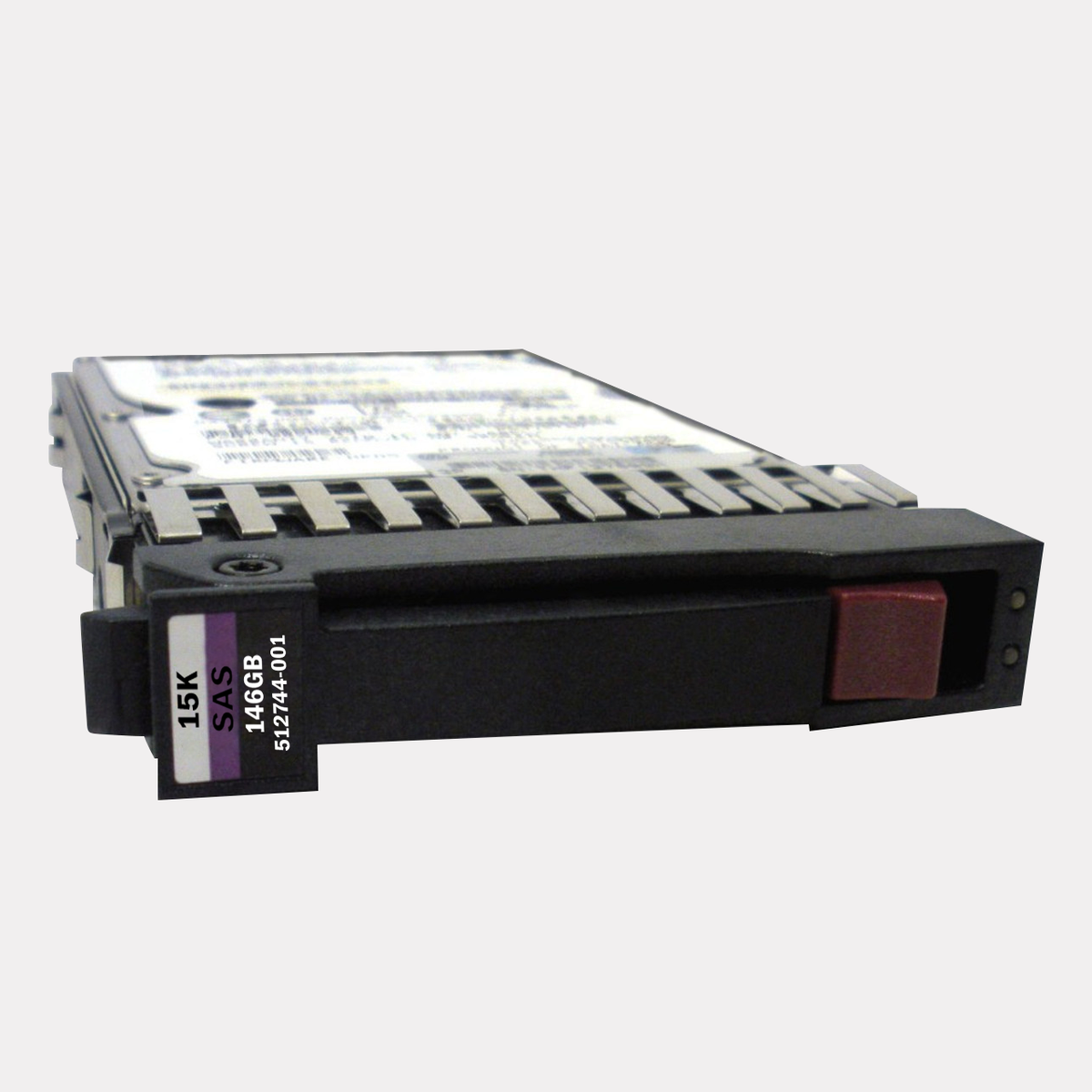

HPE 512744-001 146GB Enterprise Hard Drive for ProLiant Generation1 to Generation7 Servers. This 2.5 inch Small Form Factor (SFF) drive spins at 15,000 RPM, connects through a dual port SAS 6Gbps interface and supports hot swap installation.
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Enterprise class SAS drives are built for servers that stay busy around the clock. A 15,000 RPM spindle keeps access times short, which makes this drive a good match for databases, virtual machines, email servers and other workloads that handle lots of small, random reads and writes.
The SAS 6Gbps interface gives this drive a reliable, server grade connection. SAS drives can be swapped while the system is running and are designed for nonstop duty in rack servers and storage arrays.
Part Numbers
Brand: HPE
MPN: 512744-001
Option Part Number: 512547-B21
Spare Part Number: 512744-001
Model Number: DH0146FAQRE
Model Number: EH0146FARUB
Model Number: EH0146FARWD
Model Number: EH0146FAWJB
Model Number: EH0146FBQDC
Model Number: EH0146FCBVB
Assembly Number: 512544-002
Assembly Number: 518022-002
Assembly Number: 518216-002
Assembly Number: 512544-004
Assembly Number: 627114-001
Assembly Number: 652625-001
HPE GPN: 507129-010
Drive Details
Device Type: Hard Drive - Hot-Swap
HDD Capacity: 146 GB
Form Factor: 2.5 inch SFF
Interface: SAS-6Gbps
Spindle Speed: 15000 RPM
External Data Transfer Rate: 600 MBps
Drive Technology (Fill): Air
Carrier Type: Standard Carrier
Workload: Enterprise
Bundled with: HPE Standard Carrier
Speed and Throughput
Seek Time: 2.58 ms (average) / 4.85 ms (max)
Track-to-Track Seek Time: 0.14 ms
Spindle Speed: 15000 RPM
Connection
Interfaces: 1 x SAS 6Gb/s
Compatible Bay: 2.5" SFF
Size
Width: 3.10 inch
Depth: 5.40 inch
Height: 0.60 inch
Operating Environment
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Compatible Systems
HPE ProLiant BL Series: BL20p (Gen4) BL45p (Gen2) BL460c (Gen6 Gen7) BL465c (Gen1 Gen5 Gen6 Gen7) BL480c (BL620c Gen7) BL680c (Gen5 Gen6 Gen7) BL685c (Gen6 Gen7) WS460c (Gen6 Gen7)
HPE ProLiant DL Series: DL1000 DL120 (Gen6 Gen7) DL160 (Gen6 Gen7) DL160se (Gen6 Gen7) DL165 (Gen6 Gen7) DL170e (Gen6 Gen7) DL170h (Gen6 Gen7) DL180 (Gen6 Gen7) DL320 (Gen6 Gen7) DL360 (Gen4p Gen5 Gen6 Gen7) DL365 (Gen1 Gen5 Gen6 Gen7) DL370 (Gen6 Gen7) DL380 (Gen4 Gen5 Gen6 Gen7) DL385 (Gen1 Gen2 Gen3 Gen4 Gen5/Gen5p Gen6 Gen7) DL580 (Gen3 Gen4 Gen5 Gen6 Gen7) DL585 (Gen2 Gen3 Gen4 Gen6 Gen7) DL785 (Gen6)
HPE ProLiant ML Series: ML 110 (Gen7) ML350 (Gen5 Gen6 Gen7) ML370 (Gen5 Gen6 Gen7) ML570 (Gen3 Gen4 Gen5)
HPE ProLiant SL Series: SL390s (Gen6 Gen7)
HPE Storage arrays: D2700 MSA 1040 MSA70 P2000 (Gen3) X1500 (Gen2) X16000 (Gen2) X1800 (Gen2) X3400 (Gen2) X3800 (Gen2) 2000i (Gen2) 2000sa (Gen2)
Not sure this drive fits your system? Send us your server or storage model and we will confirm compatibility before you order.
