Product Information

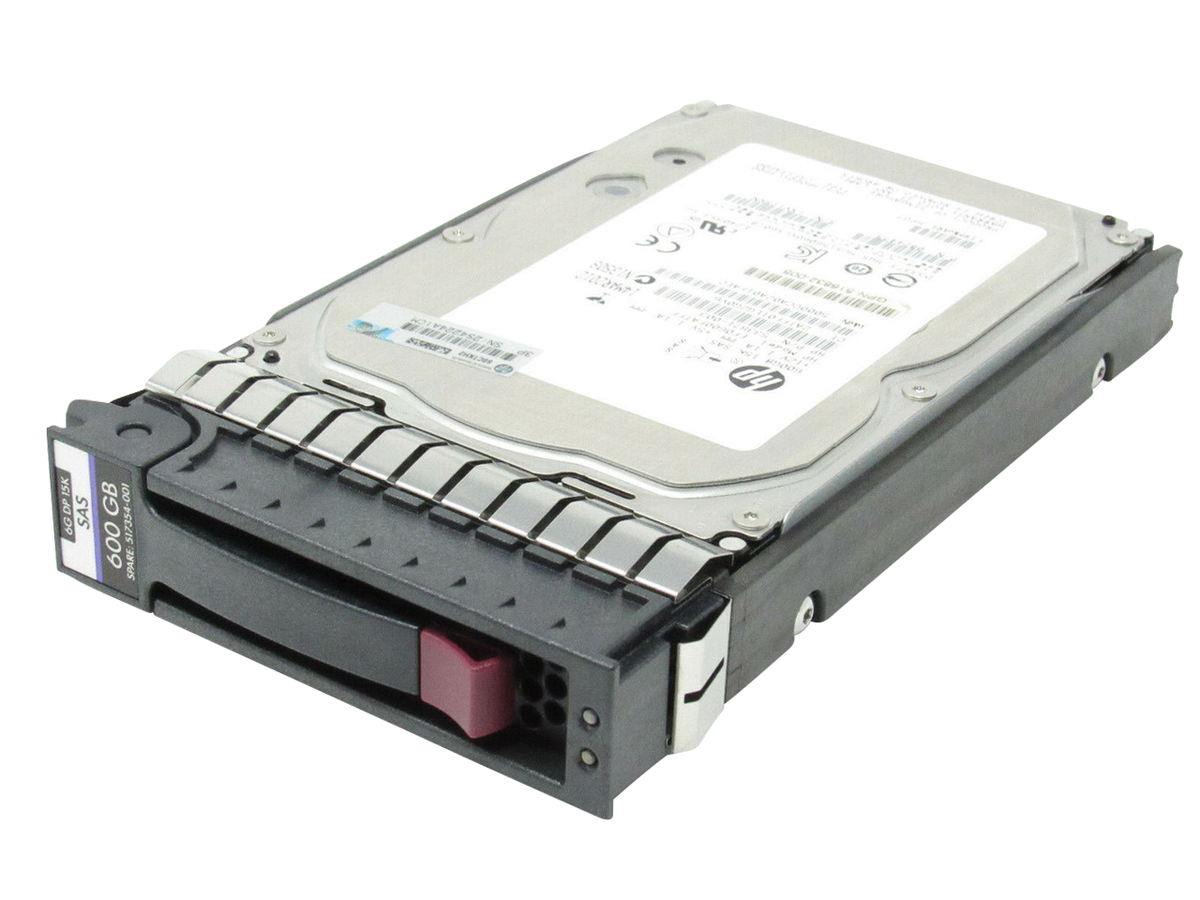

HPE 517354-001 600GB Enterprise Hard Drive for ProLiant Generation5 to Generation7 Servers. This 3.5 inch Large Form Factor (LFF) drive spins at 15,000 RPM and connects through a dual port SAS 6Gbps interface.
Condition: New Bulk Pack
Warranty: 90 Days Warranty
This drive is aimed at performance focused server storage. Spinning at 15,000 RPM, it answers requests quickly and holds up well under the constant, mixed read and write activity you see in databases, virtualization hosts and business applications.
SAS (Serial Attached SCSI) is the standard interface for server and storage drives. It supports hot swapping and full duplex data transfer, which is why it remains the common choice for systems that need to stay online.
Part Numbers
Brand: HPE
MPN: 517354-001
Option Part Number: 516828-B21
Spare Part Number: 517354-001
Model Number: EF0600FATFF
Model Number: EF0600FARNA
Assembly Number: 516810-003
Assembly Number: 533871-003
Drive Details
Device Type: Hard Drive - Hot-Swap
Capacity: 600 GB
Form Factor: 3.5 inch LFF
Interface: SAS 6Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Plug Type: Hot Plug
Carrier Type: Standard Carrier
Workload Type: Enterprise
Features: Dual Port
Bundled with: HPE Standard Carrier
Speed and Throughput
Drive Transfer Rate: 6 Gb/sec (external)
Drive Rotational Speed: 15000 RPM
Connection
Interfaces: 1 x SAS 6 Gb/s
Compatible Bays: 3.5" LFF
Size
Width: 4.60 inch
Depth: 7.40 inch
Height: 1.00 inch
Operating Environment
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Compatible Systems
HPE ProLiant DL Series: DL120 Gen6 (3.5 inch), DL120 Gen6 Performance (3.5 inch), DL120 Gen7 (3.5 inch), DL120 Gen7 Base (3.5 inch), DL120 Gen7 Entry (3.5 inch), DL120 Gen7 Performance (3.5 inch), DL160 Gen5 (3.5 inch), DL160 Gen5 Special Server (3.5 inch), DL160 Gen5p (3.5 inch), DL160 Gen5p Special Server (3.5 inch), DL160 Gen6 (3.5 inch), DL160 Gen6 Special Server (3.5 inch), DL160se Gen6 (3.5 inch), DL165 Gen5 (3.5 inch), DL165 Gen5 Special Server (3.5 inch), DL165 Gen5p (3.5 inch), DL165 Gen5p Base (3.5 inch), DL165 Gen5p Performance (3.5 inch), DL165 Gen6 (3.5 inch), DL165 Gen7 (3.5 inch), DL165 Gen7 Base (3.5 inch), DL165 Gen7 Entry (3.5 inch), DL165 Gen7 Special Server (3.5 inch), DL180 Gen5 (3.5 inch), DL180 Gen5 Special Server (3.5 inch), DL180 Gen6 (3.5 inch), DL180 Gen6 Special Server (3.5 inch), DL185 Gen5 (3.5 inch), DL185 Gen5 Special Server (3.5 inch), DL2x170h Gen6 (3.5 inch), DL320 Gen6 (3.5 inch), DL320 Gen6 Entry (3.5 inch), DL320 Gen6 High Efficiency (3.5 inch), DL320 Gen6 Performance (3.5 inch), DL370 Gen6 (3.5 inch), DL370 Gen6 Special Server (3.5 inch), DL380 Gen6 (3.5 inch), DL380 Gen7 (3.5 inch), DL385 Gen5p (3.5 inch), DL385 Gen6 (3.5 inch), DL385 Gen6 Performance (3.5 inch), DL385 Gen7 (3.5 inch), DL170h Gen6 (3.5 inch)
HPE ProLiant ML Series: ML110 Gen7 (3.5 inch), ML150 Gen6 (3.5 inch), ML150 Gen6 Base (3.5 inch), ML150 Gen6 Performance (3.5 inch), ML310 Gen5p (3.5 inch), ML330 Gen6 (3.5 inch), ML330 Gen6 Base (3.5 inch), ML350 Gen5 (3.5 inch), ML350 Gen5 Entry (3.5 inch), ML350 Gen6 (3.5 inch), ML350 Gen6 Entry (3.5 inch), ML350 Gen6 Special Server (3.5 inch), ML370 Gen6 (3.5 inch)
Not sure this drive fits your system? Send us your server or storage model and we will confirm compatibility before you order.
