Product Information

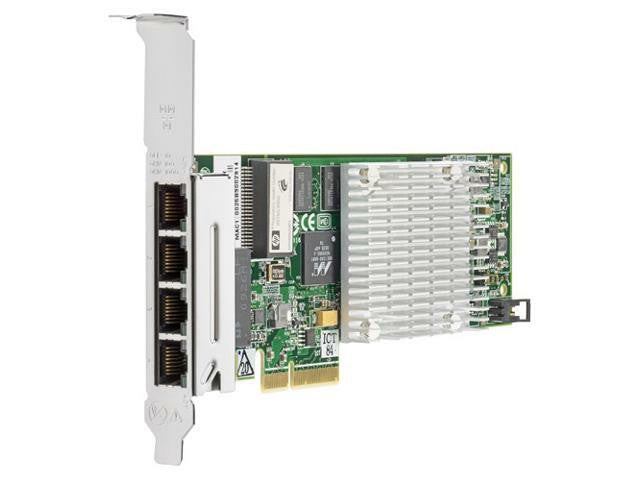

The HPE 539931-001 is the NC375T quad port Gigabit Ethernet adapter for HPE ProLiant Gen6 and Gen7 servers. It has four 1000Base-T RJ-45 ports on a PCIe 2.0 x4 card.
Key Features
- 1Gbps on each port
- Flow control, VLAN support and QoS
- TCP/IP offload and jumbo frames
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: 539931-001
Option Part Number: 538696-B21
Spare Part Number: 539931-001
Model Number: NC375T
General
Product Type: Network adapter
Form Factor: Low profile
Adapter Details
Bus Type: PCI Express 2.0 x4
PCI Spec Revision: PCIe 2.0
Connectivity: Wired
Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE
Transfer Rate: 1 Gbps
Features: Flow control, VLAN support, TCP/IP offloading, Quality of Service (QoS), Jumbo Frames support
Processor: 1 x NX3031 - NetXen
RAM: 128 MB
Connections
Network Ports: Gigabit Ethernet x 4
Cabling: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Ports: 4 x 1000Base-T - RJ-45
Slot: 1 x PCI Express 2.0 x4
Size and Weight
Depth: 6.60 inch
Height: 2.70 inch
Power and Environment
Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), FCC Class B certified, CSA, VCCI, EN55022, ICES-003, EN55024, UL 60950, CISPR 22, EMC, MIC, AS/NZS 3548, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 90%
Compatible Systems
- HPE ProLiant DL Series: DL120 Gen6, DL120 Gen6 Base, DL120 Gen6 Entry, DL120 Gen6 Performance, DL120 Gen7, DL120 Gen7 Base, DL120 Gen7 Entry, DL120 Gen7 Performance, DL160 Gen6, DL160se Gen6, DL165 Gen6, DL165 Gen7, DL165 Gen7 Performance, DL180 Gen6, DL2x170h Gen6, DL320 Gen6, DL320 Gen6 Entry, DL320 Gen6 High Efficiency, DL320 Gen6 Performance, DL360 Gen6, DL360 Gen6 Base, DL360 Gen6 Efficiency, DL360 Gen6 Entry, DL360 Gen6 Performance, DL360 Gen7, DL360 Gen7 Base, DL360 Gen7 Central Management Server, DL360 Gen7 Efficiency, DL360 Gen7 Entry, DL360 Gen7 Performance, DL370 Gen6, DL370 Gen6 Base, DL370 Gen6 High Performance, DL370 Gen6 Performance, DL380 Gen6, DL380 Gen6 Base, DL380 Gen6 Entry, DL380 Gen6 High Efficiency, DL380 Gen6 Performance, DL380 Gen7, DL380 Gen7 Base, DL380 Gen7 Efficiency, DL380 Gen7 Entry, DL380 Gen7 Performance, DL385 Gen6, DL385 Gen6 Base, DL385 Gen6 Entry, DL385 Gen6 High Performance, DL385 Gen6 Performance, DL385 Gen7, DL385 Gen7 Base, DL385 Gen7 Entry, DL385 Gen7 HE, DL385 Gen7 Performance, DL4x170h Gen6, DL580 Gen7, DL580 Gen7 Base, DL580 Gen7 High Performance, DL585 Gen6, DL585 Gen6 Base, DL585 Gen6 Performance, DL585 Gen7, DL585 Gen7 Base, DL585 Gen7 Performance, DL785 Gen6, DL785 Gen6 Base, DL785 Gen6 Performance, DL980 Gen7
- HPE ProLiant ML Series: ML110 Gen7, ML110 Gen7 Base, ML110 Gen7 Entry, ML110 Gen7 Performance, ML150 Gen6, ML150 Gen6 Base, ML150 Gen6 Entry, ML150 Gen6 Performance, ML310 Gen5p, ML330 Gen6, ML330 Gen6 Base, ML330 Gen6 Entry, ML330 Gen6 Performance, ML350 Gen6, ML350 Gen6 Base, ML350 Gen6 Entry, ML350 Gen6 Performance, ML370 Gen6, ML370 Gen6 Base, ML370 Gen6 Entry
- HPE ProLiant SL Series: SL160s Gen6, SL160z Gen6, SL165s Gen7, SL165z Gen6, SL165z Gen7, SL170z Gen6, SL2x170z Gen6, SL390s Gen7
- HPE StorageWorks Network Storage System X1400 Gen2, X1500 Gen2, X1600 Gen2, X1800 Gen2
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
