Product Information

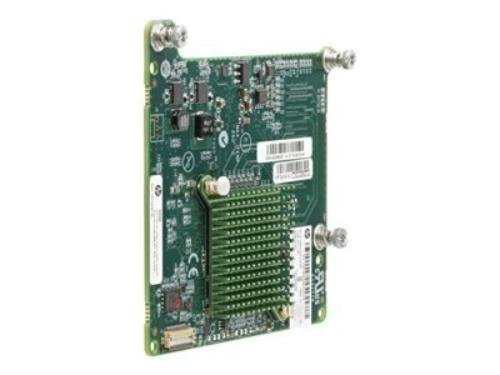

The HPE 674764-B21 is the 552M, a Flex-10 dual port 10Gb Ethernet mezzanine adapter on PCIe 2.0 x8 for HPE ProLiant Gen8 and Gen9 blade servers.
Key Features
- Emulex controller
- Flow control, VLAN support and QoS
- TCP/IP offload, jumbo frames, PXE and RSS
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 674764-B21
Option Part Number: 674764-B21
Spare Part Number: 675484-001
General
Product Type: Network adapter - 2 ports
Adapter Details
Bus Type: PCI Express 2.0 x8
Connectivity: Wired
Data Link Protocol: 10 GigE
Transfer Rate: 10 Gbps
Features: Flow control, VLAN support, TCP/IP offloading, Quality of Service (QoS), Jumbo Frames support, PXE support, Receive Side Scaling (RSS)
Processor: 1 Emulex
RAM: 128 MB
Connections
Cabling: Ethernet 10GBase-KX4
Software and Compatibility
Supported Operating Systems: SunSoft Solaris x86 10, SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, SunSoft Solaris x64 10, Red Hat Enterprise Linux 5, Red Hat Enterprise Linux 6, Microsoft Windows Server 2008 R2 SP2, VMware ESX 4.0
Power and Environment
Compliance: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.1Qau, FCC Class A certified, VCCI, EN55022, ICES-003, IEC 60950, EN55024, UL 60950, CSA 22.2 No. 60950, MIC, AS/NZS 3548, FCC CFR47 Part 15, WEEE, RoHS, ACA
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 90% (non-condensing)
Compatible Systems
- HPE ProLiant BL Series: BL420c G8 G9 (Gen8 Gen9) BL460c G8 G9 (Gen8 Gen9) BL465c G8 G9 (Gen8 Gen9) BL660c G8 G9 (Gen8 Gen9)
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
