Product Information

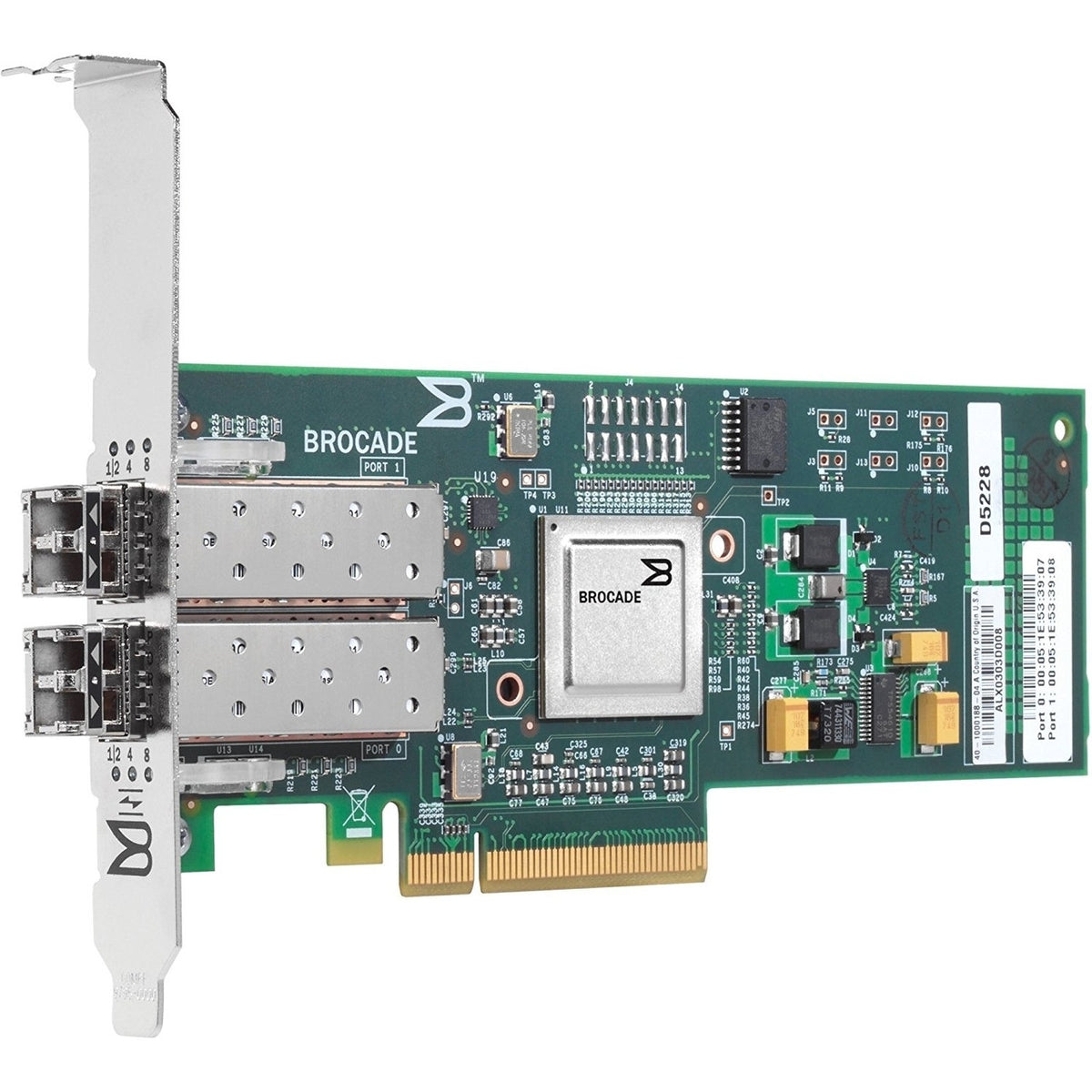

The HPE 571519-001 is a dual port 4Gb Fibre Channel HBA in a low profile PCIe plug-in card, made for HPE StorageWorks and ProLiant BL, DL and ML servers from Gen1 through Gen7.
Key Features
- 4.24Gb/s data rate for enterprise network and storage connections
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 571519-001
Option Part Number: AP768A
Spare Part Number: 571519-001, AP768-63001
General
Product Type: Host Bus Adapter
Form Factor: Plug-in Card - Low Profile
Adapter Details
Bus Type: PCI Express
Connectivity: Wired
Data Link Protocol: 4Gb Fibre Channel (SW)
Transfer Rate: 4.24 Gbps
Connections
Network Ports: 4Gb Fibre Channel x 2
Cabling: Fiber optic
Ports: 2 x 4Gb Fibre Channel (short-wave) - LC multi-mode
Slot: 1 x PCI Express
Software and Compatibility
Supported Operating Systems: Linux, Microsoft Windows 2000, Microsoft Windows Server 2003, SunSoft Solaris 10
Size and Weight
Depth: 6.50 inch
Height: 1.70 inch
Power and Environment
Operating Temp (Min): 32 °F
Operating Temp (Max): 122 °F
Operating Humidity: 5 - 93%
Compatible Systems
- HPE ProLiant DL Series: DL160 Gen5, DL160 Gen5 Special Server, DL160 Gen5p, DL160 Gen5p Special Server, DL160 Gen6, DL160 Gen6 Special Server, DL160se Gen6, DL165 Gen5, DL165 Gen5 Special Server, DL165 Gen5p, DL165 Gen5p Base, DL165 Gen5p Efficiency, DL165 Gen5p Entry, DL165 Gen5p Performance, DL165 Gen6, DL165 Gen7, DL165 Gen7 Performance, DL165 Gen7 Special Server, DL180 Gen5, DL180 Gen5 Special Server, DL180 Gen6, DL180 Gen6 Special Server, DL185 Gen5, DL185 Gen5 Special Server, DL320 Gen6, DL320 Gen6 Entry, DL320 Gen6 High Efficiency, DL320 Gen6 Performance, DL360 Gen5, DL360 Gen5 High Efficiency, DL360 Gen6, DL360 Gen6 Base, DL360 Gen6 Efficiency, DL360 Gen6 Entry, DL360 Gen6 Performance, DL360 Gen7, DL360 Gen7 Base, DL360 Gen7 Entry, DL360 Gen7 Performance, DL360 Gen7 Special Server, DL365 Gen5, DL365 Gen5 Base, DL365 Gen5 Entry, DL365 Gen5 High Efficiency, DL365 Gen5 Performance, DL370 Gen6, DL370 Gen6 Base, DL370 Gen6 Performance, DL380 Gen5 High Efficiency, DL380 Gen6, DL380 Gen6 Base, DL380 Gen6 Entry, DL380 Gen6 High Efficiency, DL380 Gen6 Performance, DL380 Gen7, DL380 Gen7 Base, DL380 Gen7 Efficiency, DL380 Gen7 Entry, DL380 Gen7 Performance, DL385 Gen5p, DL385 Gen5p Base, DL385 Gen5p Entry, DL385 Gen5p High Performance, DL385 Gen6, DL385 Gen6 Base, DL385 Gen6 Entry, DL385 Gen6 High Performance, DL385 Gen7, DL385 Gen7 Base, DL385 Gen7 Entry, DL385 Gen7 HE, DL385 Gen7 Performance, DL585 Gen7, DL585 Gen7 Base, DL585 Gen7 Performance, DL785 Gen5, DL785 Gen6, DL785 Gen6 Base, DL785 Gen6 Performance
- HPE ProLiant ML Series: ML350 Gen5 Base, ML350 Gen5 Entry, ML350 Gen6, ML350 Gen6 Base, ML350 Gen6 Entry, ML350 Gen6 Performance, ML350 Gen6 Special Server, ML370 Gen5, ML370 Gen5 Base, ML370 Gen5 High Performance, ML370 Gen6, ML370 Gen6 Base, ML370 Gen6 Entry
- HPE ProLiant SL Series: SL160s Gen6
- HPE StorageWorks Network Storage Gateway X3400, X3800
- HPE StorageWorks Network Storage System X1400 2TB SATA Model, X1400 4TB SATA Model, X1600, X1600 12TB SATA Model, X1600 292GB SAS Model, X1600 5.4TB SAS Model, X1600 6TB SATA Model, X1600 7.5TB SAS Model, X1800, X1800 2.4TB SAS Model, X1800 292GB SAS Model, X1800 3.6TB SAS Model, X1800 6TB SATA Model
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
