Product Information

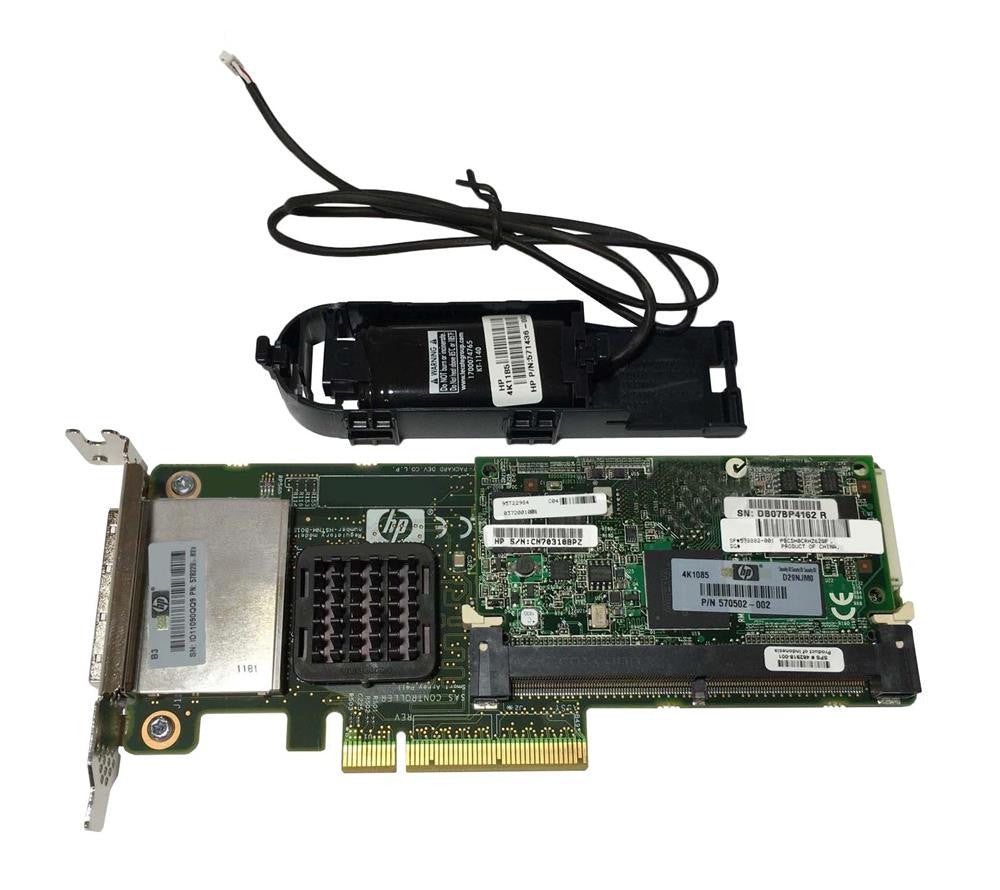

The HPE 578229-B21 is a Smart Array P411 RAID controller with 512MB of flash backed write cache (FBWC). It is a dual port, low profile PCIe 2.0 x8 SAS controller.
Key Features
- RAID 0, 1, 5, 10 and 50
- Transfer rates up to 300MBps
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
Model: 578229-B21
MPN: 578229-B21
General
Product Type: Storage Controller (RAID) - Plug-in Card - Low Profile
Controller
Host Bus: PCIe 2.0 x8
Drive Interface: SATA 1.5Gbps / SAS
Transfer Rate: 300 MBps
Cache Size: 512 MB
Supported Devices: Hard drive, disk array (RAID)
Max Drives: 64
RAID Levels: RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
Processor: PowerPC 440
Connections
Ports: 2 x SATA 1.5Gbps / SAS - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) ( external )
Slot: 1 x PCI Express x8
Size and Weight
Width: 1.30 inch
Depth: 11.00 inch
Height: 7.60 inch
Weight: 2.40 lbs
Compatible Systems
- HPE ProLiant DL Series: DL120 Gen7, DL120 Gen7 Base, DL120 Gen7 Entry, DL120 Gen7 Performance, DL160 Gen6, DL165 Gen7, DL165 Gen7 Base, DL180 Gen6, DL320 Gen6, DL320 Gen6 Entry, DL320 Gen6 High Efficiency, DL320 Gen6 Performance, DL360 Gen7, DL360 Gen7 Base, DL360 Gen7 Central Management Server, DL360 Gen7 Efficiency, DL360 Gen7 Entry, DL360 Gen7 Performance, DL370 Gen6 Base, DL370 Gen6 High Performance, DL380 Gen7, DL380 Gen7 Base, DL380 Gen7 Entry, DL380 Gen7 Performance, DL385 Gen7, DL385 Gen7 Base, DL385 Gen7 Entry, DL385 Gen7 HE, DL385 Gen7 Performance, DL580 Gen7, DL580 Gen7 Base, DL580 Gen7 High Performance, DL585 Gen7, DL585 Gen7 Base, DL585 Gen7 Performance, DL980 Gen7
- HPE ProLiant ML Series: ML150 Gen6, ML330 Gen6, ML350 Gen6, ML350 Gen6 Base, ML350 Gen6 Performance
- HPE ProLiant SL Series: SL165s Gen7, SL165z Gen7
- HPE StorageWorks Disk Enclosure D2600, D2700
- HPE StorageWorks Modular Disk System 600
- HPE StorageWorks Network Storage System X1400 Gen2, X1500 Gen2, X1600 Gen2, X1800 Gen2
Not sure this controller fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
