Product Information

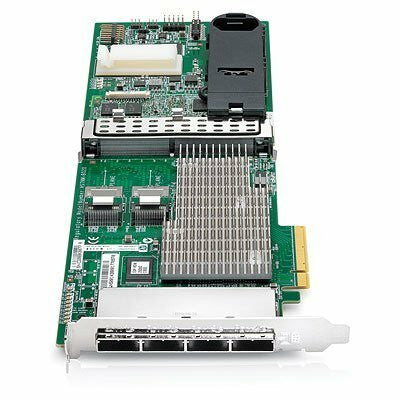

The HPE 587224-001 is a Smart Array P812 RAID controller with 1GB of flash backed write cache (FBWC) for HPE ProLiant Gen6 and Gen7 servers. It is a PCIe x8 card with two internal and four external ports for SAS and SATA drives.
Key Features
- RAID 0, 1, 5, 6, 50, ADG, 0+1 and 60
- Transfer rates up to 3Gb/s
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 587224-001
Option Part Number: 487204-B21
Spare Part Number: 587224-001
General
Product Type: Storage Controller (RAID) - Plug-in Card
Controller
Host Bus: PCIe 2.0 x8
Drive Interface: SATA 3Gbps / SAS 6Gbps
Transfer Rate: 3 Gb/sec
Cache Size: 1 GB
Supported Devices: Hard Drive, Disk Array (RAID)
RAID Levels: RAID 0, RAID 1, RAID 5, RAID 6, RAID 50, ADG, RAID 0+1, RAID 60
Connections
Ports: 2 x SAS - 32 pin 4i MultiLane SAS (SFF-8484) ( internal ) 2 x SAS - 36 pin 4i Mini MultiLane SAS (SFF-8087) ( external )
Slot: 1 x PCI Express x8
Software and Compatibility
Supported Operating Systems: SCO OpenServer, UnixWare, Novell NetWare, SuSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux
Size and Weight
Width: 0.50 inch
Depth: 12.20 inch
Height: 4.40 inch
Compatible Systems
- HPE ProLiant DL Series: DL160 Gen6, DL165 Gen7 Base, DL165 Gen7 Entry, DL180 Gen6, DL320 Gen6, DL320 Gen6 Entry, DL320 Gen6 High Efficiency, DL320 Gen6 Performance, DL360 Gen7, DL360 Gen7 Base, DL360 Gen7 Central Management Server, DL360 Gen7 Efficiency, DL360 Gen7 Entry, DL360 Gen7 Performance, DL370 Gen6 Base, DL370 Gen6 High Performance, DL380 Gen7, DL380 Gen7 Base, DL380 Gen7 Entry, DL380 Gen7 Performance, DL385 Gen7, DL385 Gen7 Base, DL385 Gen7 Entry, DL385 Gen7 HE, DL385 Gen7 Performance, DL580 Gen7, DL580 Gen7 Base, DL580 Gen7 High Performance, DL585 Gen7, DL585 Gen7 Base, DL585 Gen7 Performance, DL980 Gen7
- HPE ProLiant DL Series: ML330 Gen6, ML350 Gen6, ML350 Gen6 Base, ML350 Gen6 Performance
- HPE StorageWorks Disk Enclosure D2600, D2700
- HPE StorageWorks Modular Disk System 600
- HPE StorageWorks Network Storage System X1400 Gen2, X1500 Gen2, X1600 Gen2, X1800 Gen2
Not sure this controller fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
