Product Information

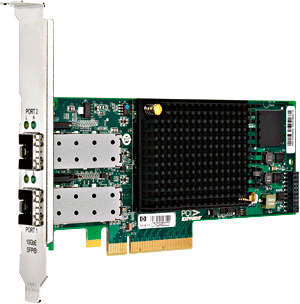

The HPE 595325-001 is the CN1000E from the StorageWorks line, a converged network adapter with two ports. It delivers Ethernet and Fibre Channel over 10GbE on a PCIe 2.0 x8 card using FCoE and CEE, for HPE ProLiant Gen5 and Gen6 servers and storage arrays.
Key Features
- Fewer adapters and cables, with lower power, cooling and running costs
- Keeps your existing Ethernet and Fibre Channel setup in place
- 10Gbps with auto negotiation
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 595325-001
Option Part Number: AW520A
Spare Part Number: 595325-001
General
Product Type: Network Adapter - Dual Ports
Form Factor: Plug-in Card - Low Profile
Media: 10Gb SFP+ Ethernet Optical Modules (SR) or SFP+ direct attach passive copper cable (HPE C-series FCoE Switches) or SFP+ direct attach active copper cable (HPE B-series FCoE Switches)
Adapter Details
Port Speed: 10GbE
Bus Type: PCI Express v2.0 (Gen 2) x8 lane operation
Data Path: Eight Lanes (x8)
Interrupt Levels: Automatically Configured
PCI Spec Revision: PCIe 2.0
Connectivity: Wired
Features: Auto-Negotiation
Connections
Channels: Dual
Slot Type: PCI Express 2.0 to Fibre Channel
In the Box: CNA, Low-Profile Bracket
Expansion Slots: 2 (total) / 2 (Free) x SFP+
Slot: 1 x PCI Express 2.0 x8
Software and Compatibility
Supported Operating Systems: Windows Server 2003, Windows Server 2008 R2, Windows Server 2008 R2 Hyper-V, VMware v4.0, RHEL 5, x86, x64, SLES 10, x86, x64, SLES 11, x86, x64
Size and Weight
Width: 10.30 inch (262 mm)
Depth: 7.50 inch (190 mm)
Height: 2.50 inch (58 mm)
Power and Environment
Operating Temp: 0° to 45°C (32° to 113°F)
Non-Operating Temp: -40° to 73°C (-40° to 158°F)
Operating Humidity: 15% to 80% relative, non-condensing
Compatible Systems
- HPE ProLiant DL Series: DL120 (Gen5), DL160 (Gen5, Gen6), DL165 (Gen5, Gen6), DL180 (Gen5, Gen6), DL185 (Gen5), DL320 (G5p, Gen6), DL360 (Gen5, Gen6), DL365 (Gen5), DL380 (Gen5, Gen6), DL385 (G5p, Gen6), DL580 (Gen5), DL585 (Gen5, Gen6), DL785 (Gen5, Gen6)
- HPE ProLiant ML Series: ML350 (Gen6), ML370 (Gen6) FCoE Converged Network Switches Supported:
- HPE 2408 FCoE Switch,
- HPE Nexus 5000 FCoE Switches,
- HPE 10/24 FCoE Blade for DC SAN Directors Supported Array Platforms: EVA4000, EVA4100, EVA4400, EVA6000, EVA6100, EVA6400, EVA8000, EVA8100, EVA8400, MSA2000fc, MSA2000fc G2
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
