Product Information

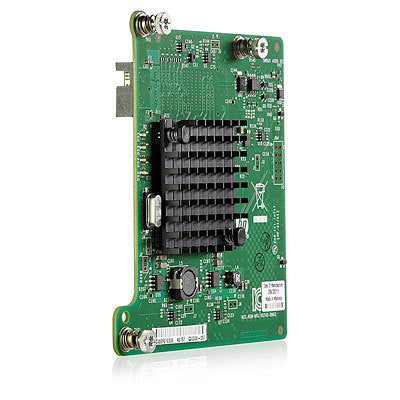

The HPE 616010-001 is the 366M, a quad port 1Gb Ethernet mezzanine adapter on PCIe 2.1 for HPE BladeSystem c-Class ProLiant servers (select models). It is a good fit when you need more bandwidth but are not moving to 10GbE yet.
Key Features
- Intel I350 controller, bridgeless design, successor to the HPE NC364m
- 4Gbps total aggregate throughput
- Intel VMDq, Microsoft VMQ and VMware NetQueue help with virtual workloads
- iSCSI acceleration and iSCSI remote boot, plus RSS, PXE, VLAN, checksum offload and jumbo frames
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: 616010-001
Option Part Number: 615729-B21
Spare Part Number: 616010-001
General
Product Type: Network adapter-4 ports
Adapter Details
Bus Type: PCI Express 2.1 x4
PCI Spec Revision: PCIe 2.1
Connectivity: Wired
Data Link Protocol: GigE
Transfer Rate: 1 Gbps
Features: Fault tolerance, load balancing, Jumbo Frames support, PXE support, Large Send Offload (LSO)
Processor: 1 x I350 - Intel
Software and Compatibility
Supported Operating Systems: SuSE Linux Enterprise Server, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7, Citrix XenServer 6.0, VMware ESXi 4.1 update 2, VMware ESXi 5.0 update 1, VMware ESX 4.1 update 2
Power and Environment
Compliance: IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, FCC Class A certified, UL, UL 60950, FCC CFR47 Part 15, WEEE, RoHS
Operating Temp (Min): 50 °F
Operating Temp (Max): 95 °F
Operating Humidity: 10 - 90% (non-condensing)
Compatible Systems
- HPE ProLiant BL420c G8 G9 (Gen8 Gen9) BL460c G8 G9 (Gen8 Gen9) BL465c G8 G9 (Gen8 Gen9)
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
