Product Information

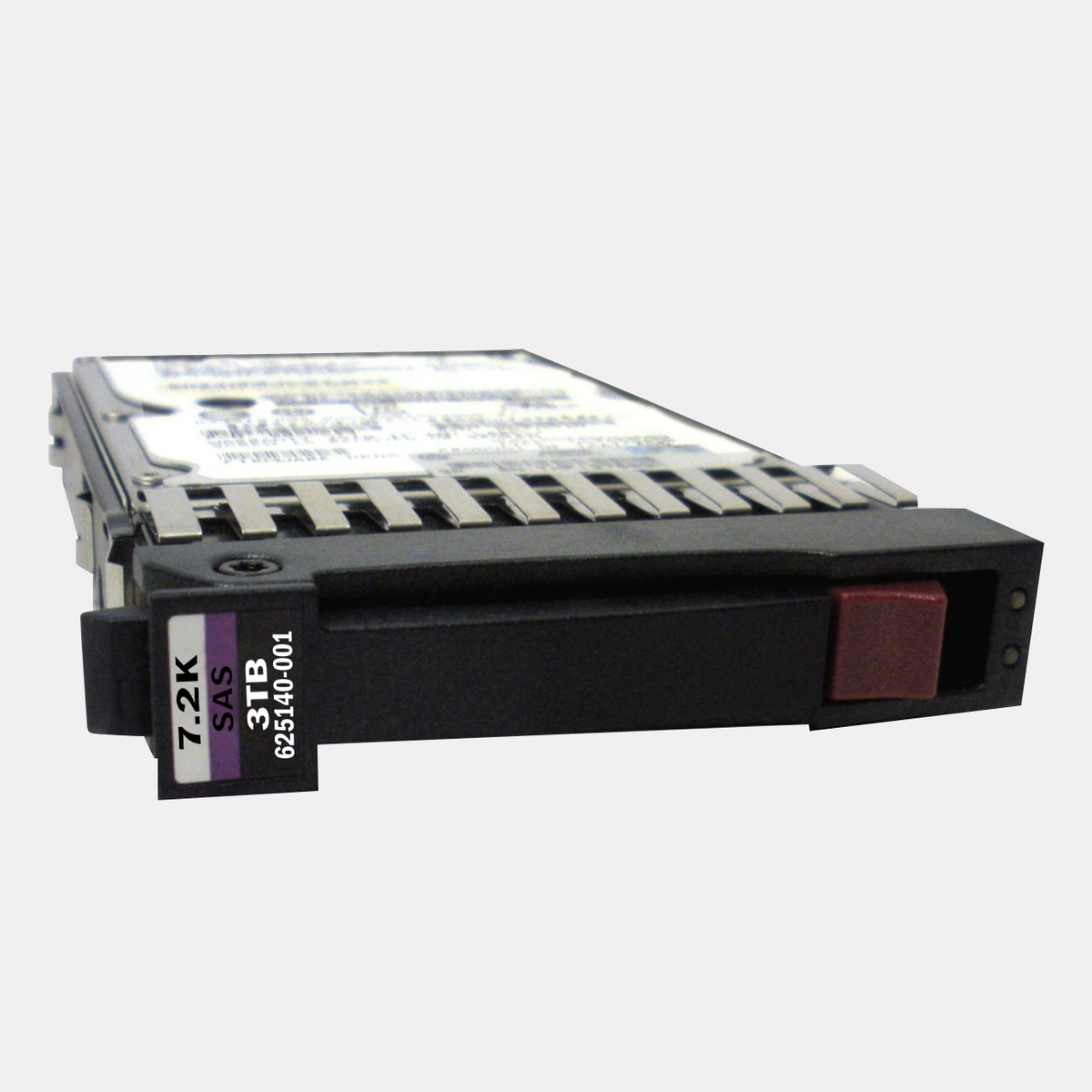

HPE 625140-001 3TB Midline Hard Drive for ProLiant Generation2 to Generation7 Servers. This 3.5 inch Large Form Factor (LFF) drive spins at 7,200 RPM and connects through a dual port SAS 6Gbps interface.
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Midline drives put capacity first. Running at 7,200 RPM, this drive offers a lower cost per gigabyte than 10K and 15K enterprise drives, so it fits well where you need plenty of space for file shares, backups, archives, video and other bulk data.
The SAS 6Gbps interface gives this drive a reliable, server grade connection. SAS drives can be swapped while the system is running and are designed for nonstop duty in rack servers and storage arrays.
Part Numbers
Brand: HPE
MPN: 625140-001
Option Part Number: 625031-B21
Spare Part Number: 625140-001
Model Number: MB3000FBNWV
Model Number: MB3000FCVCA
Model Number: MB3000FCWDH
Model Number: MB3000FCWDH
Model Number: MB3000FCZGK
Model Number: MB3000FBUCN
Assembly Number: 625030-001
Assembly Number: 693672-002
Assembly Number: 695507-003
Assembly Number: 695507-007
Assembly Number: 698695-002
Assembly Number: 638521-002
Drive Details
Device Type: Hard Drive - Hot-Swap
Capacity: 3 TB
Form Factor: 3.5 inch LFF
Interface: SAS 6Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Connectivity: Dual Port
Plug Type: Hot Pluggable
Carrier Type: Standard Carrier (ST)
Workload Type: Midline
Bundled with: HPE Standard Carrier (ST)
Speed and Throughput
Drive Transfer Rate (External): 6 Gb/sec
Drive Rotational Speed: 7200 rpm
Connection
Interfaces: 1 x SAS - 29 pin internal SAS (SFF-8482)
Compatible Bay: 3.5" LFF
Size
Width: 4.60 inch
Depth: 7.40 inch
Height: 1.00 inch
Compatible Systems
HPE Modular Disk System 600
HPE ProLiant DL Series: DL160 Gen6 (3.5 inch), DL160 Gen6 Special Server (3.5 inch), DL165 Gen7 Base (3.5 inch), DL180 Gen6 (3.5 inch), DL180 Gen6 Special Server (3.5 inch), DL320 Gen6 (3.5 inch), DL320 Gen6 Entry, DL320 Gen6 High Efficiency, DL320 Gen6 Performance, DL370 Gen6 Special Server (3.5 inch), DL380 Gen7 (3.5 inch)
HPE ProLiant ML Series: ML150 Gen6
HPE StorageWorks Disk Enclosure D2600
HPE StorageWorks Modular Disk System 600, 600 with two Dual Port I/O Module System
HPE StorageWorks Network Storage System X1400 G2, X1500 G2, X1600 Gen2 (3.5 inch LFF)
HPE StoreAll 9730 Storage Couplet
HPE StoreEasy 12 LFF Disk Enclosure
Not sure this drive fits your system? Send us your server or storage model and we will confirm compatibility before you order.
