Product Information

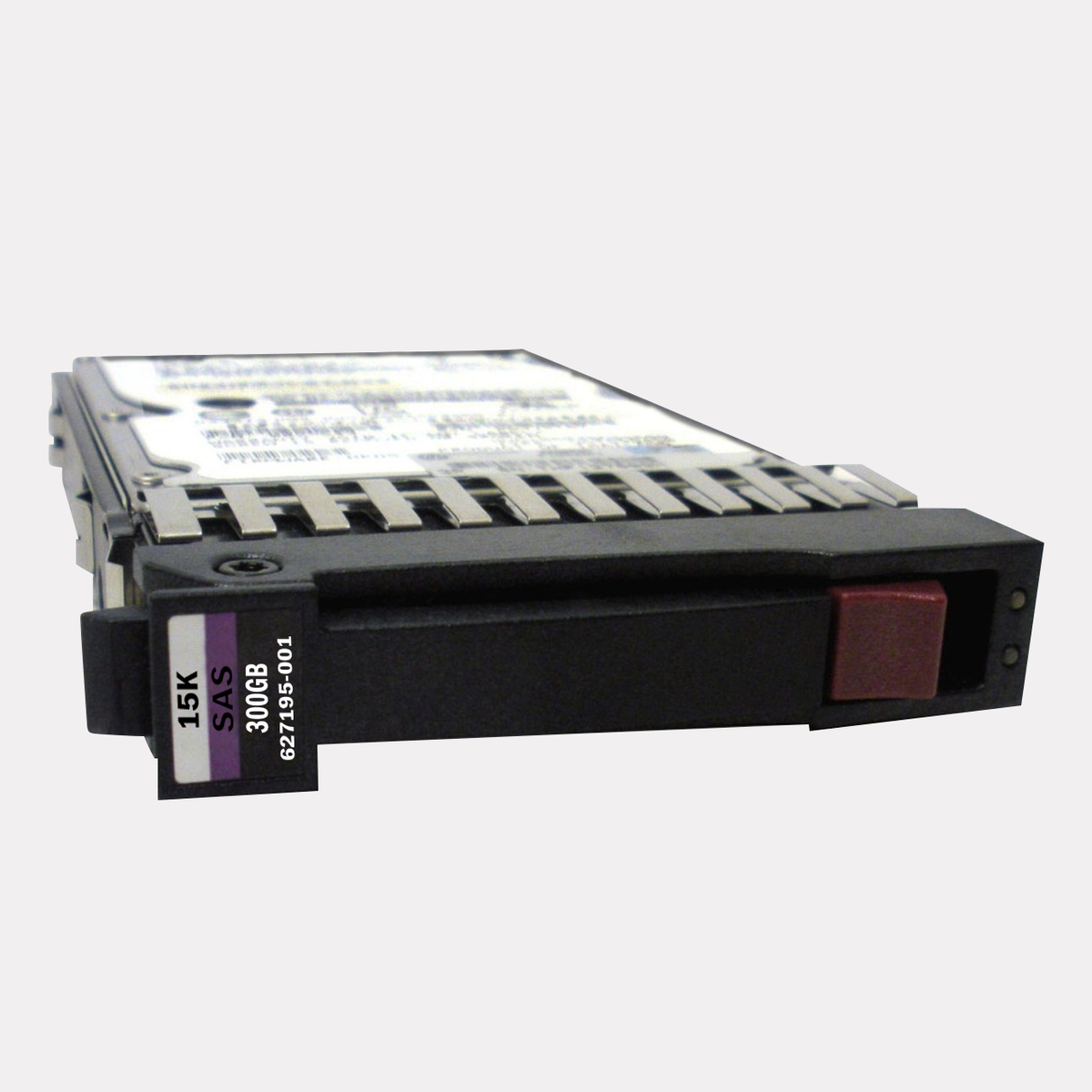

Made for HPE ProLiant Gen2 through Gen7 servers, the HPE 627117-B21 gives you 300 GB of enterprise class capacity in a 2.5 inch SFF (small form factor) package. It runs at 15,000 RPM and links to the controller over a dual port SAS 6Gb/s interface. The drive is hot swappable, so it can be installed or replaced while the system keeps running.
Use it where fast response matters: OLTP and other database workloads, large scale analytics, and HPC clusters.
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 627117-B21
Option Part Number: 627117-B21
Spare Part Number: 627195-001
Model Number: EH300FBQDD, EH0300FCBVC, EH0300JDXBA, EH0300JEDHC, EH0300JDYTH
Assembly Number: 627114-002, 652625-002, 744995-001, 759202-001, 748385-001
HPE GPN: 507129-020
Drive Details
Drive Type: Hard Drive - Internal
Storage Capacity: 300 GB
Form Factor: 2.5 inch SFF
Host Interface: SAS-6Gbps
Sector Size (Bytes): 512
Installation Type: Hot Plug
Internal Fill: Air
Carrier: Standard Carrier
Workload Class: Enterprise
Features: Dual Port
Ships With: HPE Standard Carrier
Performance
Rotational Speed: 15000 RPM
External Transfer Rate: 600 MBps
Max Synchronous Transfer Rate: 6 Gb/sec
Single Track Seek (typical reads, incl. settling): 0.40 ms
Average Seek (typical reads, incl. settling): 2.90 ms
Full Stroke Seek (typical reads, incl. settling): 5.30 ms
Connections
Ports: 1 x SAS 6Gb/s
Fits Bay: 2.5" SFF
Size and Weight
Width: 3.10 inch
Depth: 5.40 inch
Height: 0.60 inch
Operating Environment
Operating Temp (Min): 50 °F
Operating Temp (Max): 95 °F
Compatible Systems
- HPE ProLiant BL Series: BL20p (Gen4) BL45p (Gen2) BL460c (Gen6 Gen7) BL465c (Gen1 Gen5 Gen6 Gen7) BL480c (BL620c Gen7)BL680c (Gen5 Gen6 Gen7) BL685c (Gen6 Gen7) WS460c (Gen6 Gen7)
- HPE ProLiant DL Series: DL1000 DL120 (Gen6 Gen7) DL160 (Gen6 Gen7) DL160se (Gen6 Gen7) DL165 (Gen6 Gen7) DL170e (Gen6 Gen7)DL170h (Gen6 Gen7) DL180 (Gen6 Gen7) DL320 (Gen6 Gen7) DL360 (Gen4p Gen5 Gen6 Gen7) DL365 (Gen1 Gen5 Gen6 Gen7)DL370 (Gen6 Gen7) DL380 (Gen4 Gen5 Gen6 Gen7) DL385 (Gen1 Gen2 Gen3 Gen4 Gen5/Gen5p Gen6 Gen7)DL580 (Gen3 Gen4 Gen5 Gen6 Gen7) DL585 (Gen2 Gen3 Gen4 Gen6 Gen7) DL785 (Gen6)
- HPE ProLiant ML Series: ML 110 (Gen7) ML350 (Gen5 Gen6 Gen7) ML370 (Gen5 Gen6 Gen7) ML570 (Gen3 Gen4 Gen5)
- HPE ProLiant SL Series: SL390s (Gen6 Gen7)
- HPE Storage Systems: D2700 MSA 1040 MSA70 P2000 (Gen3) X1500 (Gen2) X16000 (Gen2) X1800 (Gen2) X3400 (Gen2)
- HPE StoragEeasy: X3800 (Gen2) 2000i (Gen2) 2000sa (Gen2)
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
