Product Information

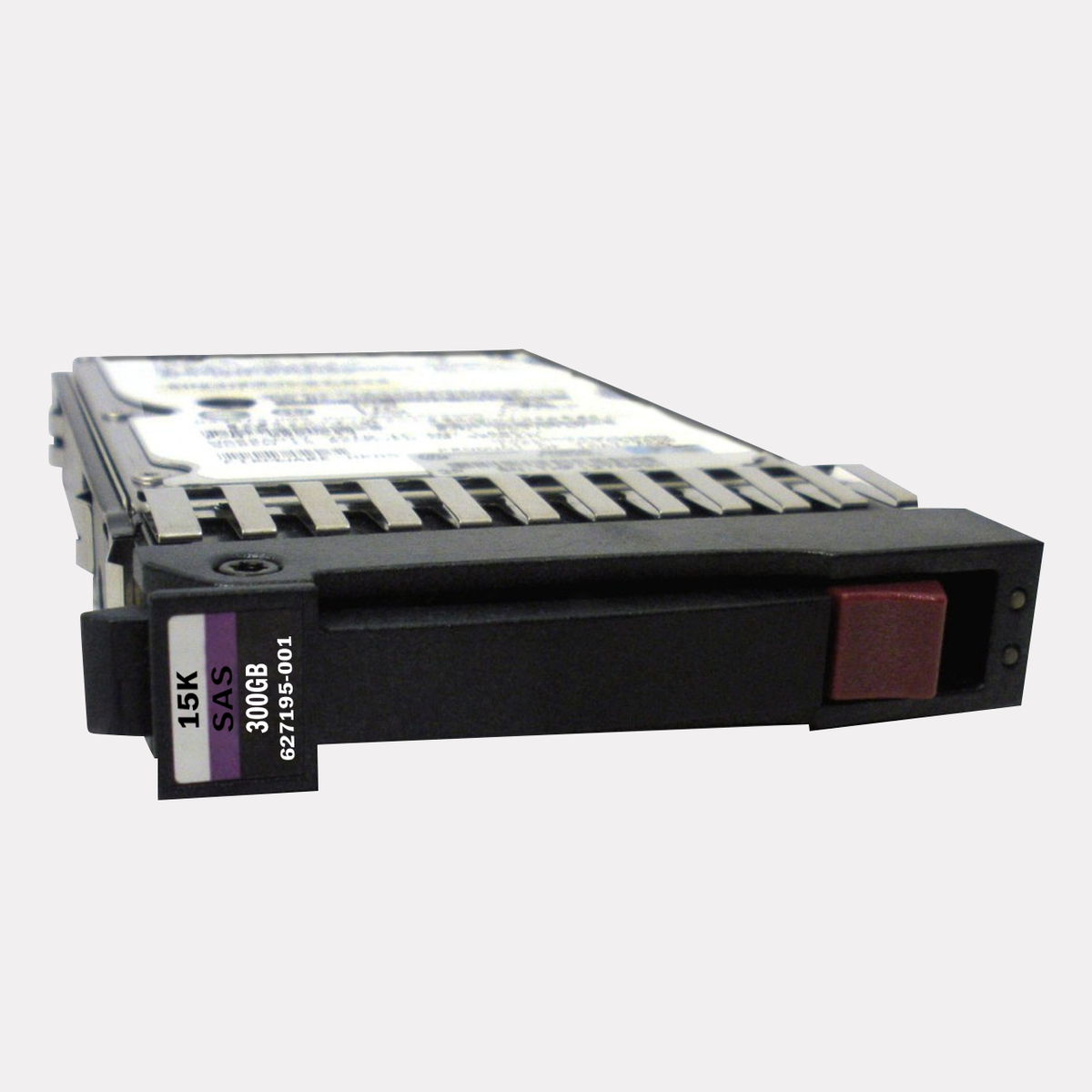

HPE 627195-001 300GB Enterprise Hard Drive for ProLiant Generation2 to Generation7 Servers. This 2.5 inch Small Form Factor (SFF) drive spins at 15,000 RPM, connects through a dual port SAS 6Gbps interface and supports hot swap installation.
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Enterprise class SAS drives are built for servers that stay busy around the clock. A 15,000 RPM spindle keeps access times short, which makes this drive a good match for databases, virtual machines, email servers and other workloads that handle lots of small, random reads and writes.
The SAS 6Gbps interface gives this drive a reliable, server grade connection. SAS drives can be swapped while the system is running and are designed for nonstop duty in rack servers and storage arrays.
Part Numbers
Brand: HPE
MPN: 627195-001
Option Part Number: 627117-B21
Spare Part Number: 627195-001
Model Number: EH300FBQDD
Model Number: EH0300FCBVC
Model Number: EH0300JDXBA
Model Number: EH0300JEDHC
Model Number: EH0300JDYTH
Assembly Number: 627114-002
Assembly Number: 652625-002
Assembly Number: 744995-001
Assembly Number: 759202-001
Assembly Number: 748385-001
HPE GPN: 507129-020
Drive Details
Device Type: Hard Drive - Internal
HDD Capacity: 300 GB
Form Factor: 2.5 inch SFF
Interface: SAS-6Gbps
Spindle Speed: 15000 RPM
External Data Transfer Rate: 600 MBps
Bytes per Sector: 512
Plug Type: Hot Plug
Drive Technology (Fill): Air
Carrier Type: Standard Carrier
Workload: Enterprise
Features: Dual Port
Bundled with: HPE Standard Carrier
Speed and Throughput
Transfer Rate Synchronous (Maximum): 6 Gb/sec
Single Track Seek Time (Typical Reads, Including Settling): 0.40 ms
Average Seek Time (Typical Reads, Including Settling): 2.90 ms
Full-Stroke Seek Time (Typical Reads, Including Settling): 5.30 ms
Rotational Speed: 15000 RPM
Connection
Interfaces: 1 x SAS 6Gb/s
Compatible Bay: 2.5" SFF
Size
Width: 3.10 inch
Depth: 5.40 inch
Height: 0.60 inch
Operating Environment
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Compatible Systems
HPE ProLiant BL Series: BL20p (Gen4) BL45p (Gen2) BL460c (Gen6 Gen7) BL465c (Gen1 Gen5 Gen6 Gen7) BL480c (BL620c Gen7)BL680c (Gen5 Gen6 Gen7) BL685c (Gen6 Gen7) WS460c (Gen6 Gen7)
HPE ProLiant DL Series: DL1000 DL120 (Gen6 Gen7) DL160 (Gen6 Gen7) DL160se (Gen6 Gen7) DL165 (Gen6 Gen7) DL170e (Gen6 Gen7)DL170h (Gen6 Gen7) DL180 (Gen6 Gen7) DL320 (Gen6 Gen7) DL360 (Gen4p Gen5 Gen6 Gen7) DL365 (Gen1 Gen5 Gen6 Gen7)DL370 (Gen6 Gen7) DL380 (Gen4 Gen5 Gen6 Gen7) DL385 (Gen1 Gen2 Gen3 Gen4 Gen5/Gen5p Gen6 Gen7)DL580 (Gen3 Gen4 Gen5 Gen6 Gen7) DL585 (Gen2 Gen3 Gen4 Gen6 Gen7) DL785 (Gen6)
HPE ProLiant ML Series: ML 110 (Gen7) ML350 (Gen5 Gen6 Gen7) ML370 (Gen5 Gen6 Gen7) ML570 (Gen3 Gen4 Gen5)
HPE ProLiant SL Series: SL390s (Gen6 Gen7)
HPE Storage Systems: D2700 MSA 1040 MSA70 P2000 (Gen3) X1500 (Gen2) X16000 (Gen2) X1800 (Gen2) X3400 (Gen2)
HPE StoragEeasy: X3800 (Gen2) 2000i (Gen2) 2000sa (Gen2)
Not sure this drive fits your system? Send us your server or storage model and we will confirm compatibility before you order.
