Product Information

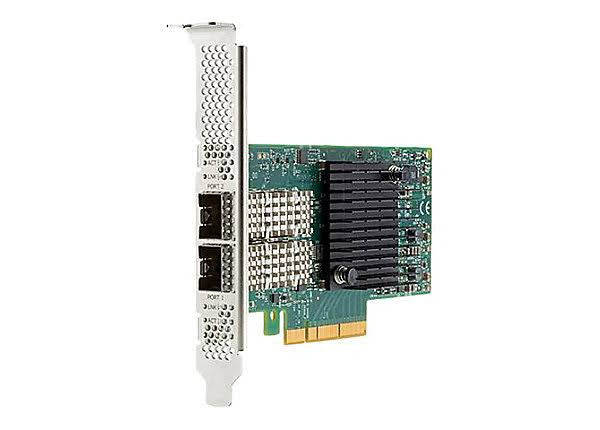

The HPE 817753-B21 is the Ethernet 10/25Gb 2-port 640SFP28 adapter for select HPE ProLiant DL rack servers and Apollo systems, Gen9 and Gen10. It gives Telco, service providers, financial firms and enterprises the extra bandwidth that growing data center traffic calls for.
Key Features
- Mellanox ConnectX-4 Lx controller
- Two SFP28 ports running at 10 or 25Gb
- A cost effective way to scale past older 10Gb links as mobile data and video traffic grows
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: 817753-B21
Option Part Number: 817753-B21
Spare Part Number: 840140-001
General
Product Type: Network adapter
Form Factor: Plug-in card - low profile
Adapter Details
Bus Type: PCI Express 3.0 x8 / PCI Express 3.0 x4
PCI Spec Revision: PCIe 3.0
Connectivity: Wired
Data Link Protocol: 10 GigE, 25 Gigabit LAN
Transfer Rate: 25 Gbps
Bi-directional Throughput: 100 Gbps,
Bandwidth per Port: 50 Gbps
Jumbo Frame Size: up to 9.6 KB
Remote Management: SNMP
Status Indicators: Link/activity
Features: VLAN support, IPv6 support, full duplex mode, TCP/IP offloading, Quality of Service (QoS), Jumbo Frames support, IPv4 support, PXE support, LACP support, LLDP support, Large Send Offload (LSO), Receive Side Scaling (RSS), UEFI support, TCP Segmentation Offload (TSO), QoS tagging, Extended Message-Signaled Interrupts (MSI-X), UDP/IP offloading, TCP/IP checksum offload, RDMA over Converged Ethernet (RoCE), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), RDMA over Converged Ethernet (RoCE) v2
Processor: 1 x Mellanox ConnectX-4 Lx - Mellanox Technologies
Connections
Network Ports: 25 Gigabit Ethernet x 2
Ports: 2 x 25Gb Ethernet - SFP28
Software and Compatibility
Supported Operating Systems: SuSE Linux Enterprise Server 11, Microsoft Windows Server 2012, Oracle Solaris 11.1, Microsoft Windows Server 2012 R2, VMware ESXi 5.5, Ubuntu 14.04, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6.6, Red Hat Enterprise Linux 7.1, Citrix XenServer 6.5, SuSE Linux Enterprise Server 12, Red Hat Enterprise Linux 6.7, Red Hat Enterprise Linux 7.2, VMware ESXi 6.0
Power and Environment
Compliance: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588v2, FCC Class A certified, CISPR 22 Class A, ICES-003, EN55024, EN 60950-1, RoHS, ACA, cTUVus, BSMI Class A, VCCI Class A, EN 55022 Class A
Power Draw (operating): 9.7 Watt
Operating Temp (Min): 41 °F
Operating Temp (Max): 140 °F
Operating Humidity: 5 - 95% (non-condensing)
Compatible Systems
- This Dual Port Network Adapter is Designed for
- HPE Apollo 4000 Series: 4200 Gen9, 4510 Gen10, 4510 Gen9, 4530 Gen9
- HPE ProLiant DL Series: DL120 Gen9, DL120 Gen9 Entry, DL160 Gen9, DL160 Gen9 Base, DL160 Gen9 Entry, DL160 Gen9 Performance, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL360 Gen10, DL360 Gen10 Base, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Performance, DL360 Gen9, DL360 Gen9 Base, DL360 Gen9 CMS, DL360 Gen9 Entry, DL360 Gen9 Performance, DL360 Gen9 Special Server, DL380 Gen9, DL380 Gen9 Base, DL380 Gen9 Entry, DL380 Gen9 High Performance, DL380 Gen9 Performance, DL560 Gen10, DL560 Gen10 Base, DL560 Gen10 Entry, DL560 Gen10 Performance, DL560 Gen9, DL560 Gen9 Base, DL560 Gen9 Entry, DL560 Gen9 Performance, DL580 Gen9, DL580 Gen9 Base, DL580 Gen9 Database, DL580 Gen9 High Performance, DL580 Gen9 SAP HANA Scale-up Base Configuration
- HPE ProLiant ML Series:ML350 Gen10, ML350 Gen10 Base, ML350 Gen10 Entry, ML350 Gen10 Performance, ML350 Gen10 Solution, ML350 Gen10 Sub-Entry
- HPE ProLiant XL Series:XL230k Gen10 Compute Tray, XL250a Gen9, XL250a Gen9 Accelerator Tray, XL450 Gen10
- HPE StoreEasy 1850, 3850 Gateway Single Node
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
