Product Information

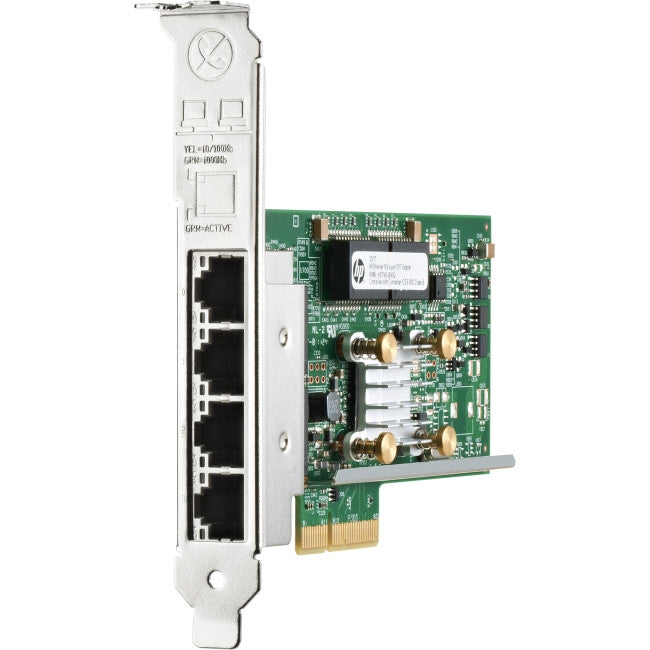

The HPE 649871-001 is HPE's 331T quad port 1Gb Ethernet adapter for HPE ProLiant Gen8, Gen9 and Gen10 servers. Its single chip design lowers power needs and saves I/O slots while every port runs at full line rate.
Key Features
- Broadcom BCM5719 chipset
- 8Gb total aggregate throughput
- Suits virtualization, security, consolidation and network segmentation
- Large send and receive offload, VLAN tagging, jumbo frames, MSI-X, and TCP checksum and segmentation offload
- IEEE 1588, VMware NetQueue and Microsoft VMQ
- HPE Sea of Sensors 3D Technology helps cut energy use
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 649871-001
Option Part Number: 647594-B21
Spare Part Number: 649871-001
General
Product Type: Network Adapter
Form Factor: Plug-in Card - Low Profile (Stand Up)
Server Type Supported: ProLiant servers
Technology: Network Processor
Adapter Details
Bus Type: PCI Express 2.0 x4
PCI Spec Revision: PCIe 2.0
Port Speed: 8 Gb/s
Connectivity: Wired
Transfer Rate: 1 Gbps
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Status Indicators: Port transmission speed, link/activity
Network Processor: Broadcom BCM5719 Chipset
Protocols Supported: 802.3, 802.3ab, 802.3u, 802.3x, Dynamic 802.3ad, 802.1Q, 802.3az, 1588, 802.1as
Features: Jumbo Frames support, PXE support, Large Send Offload (LSO)
Processor: 1 x BCM5719 - Broadcom
IEEE Standards: 802.3, 802.3ab, 802.3u, 802.3x, Dynamic 802.3ad, 802.1Q, 802.3az, 1588, 802.1as
Connections
Connector Type: Base-T
Number of Ports: 4-port
Ports: Gigabit Ethernet x 4, 4 x 1000Base-T - RJ-45
Cabling: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Slot: 1 x PCI Express 2.0 x4
In the Box: Low-profile bracket, full-height bracket
Software and Compatibility
Supported Operating Systems: Microsoft Windows Server 2008, HPC Server 2008,icrosoft Windows 2008 Red Hat Enterprise Linux 5.7 (AMD64/EM64T) Red Hat Enterprise Linux 6.1 (AMD64/EM64T) SLES 10 and 11 Oracle Solaris 10 VMware ESX and ESXi Microsoft Windows Hyper-V
Size and Weight
Height: 2.25 inch
Width: 9.50 inch
Depth: 7.50 inch
Weight: 1.00 lbs
Power and Environment
Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az, VCCI Class B ITE, EN 61000-3-2, EN55022, EN 61000-3-3, FCC Part 15 B, WEEE, RoHS
Power: Typical - 1.0W Max - 4.3W
Power Availability: 6W (maximum)
Operating Humidity: 10 - 90% (non-condensing)
Operating Temp (Max): 131 °F
Operating Temp (Min): 32 °F
Compatible Systems
- HPE Apollo 4200 Gen10
- HPE ProLiant DL Series: DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL20 Gen9 Solution, DL325 Gen10 Base, DL360 Gen10, DL360 Gen10 Base, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Performance, DL360 Gen10 SMB, DL360 Gen10 Solution, DL360p Gen8, DL360p Gen8 CMS, DL360p Gen8 Special Server, DL380 Gen10, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 High Performance, DL380 Gen10 Network Choice, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 SMB, DL380 Gen10 Solution, DL380 Gen9 High Performance, DL560 Gen10, DL560 Gen10 Base, DL560 Gen10 Entry, DL560 Gen10 Performance, DL560 Gen9, DL560 Gen9 Base, DL560 Gen9 Entry, DL560 Gen9 Performance, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance, DL80 Gen9 Entry
- HPE ProLiant ML Series: ML10 Gen9, ML10 Gen9 Entry, ML10 Gen9 Performance, ML10 v2, ML10 v2 Base, ML10 v2 Entry, ML10 v2 Performance, ML110 Gen10, ML110 Gen10 Entry, ML110 Gen10 Performance, ML110 Gen10 Solution, ML110 Gen9, ML110 Gen9 Base, ML110 Gen9 Entry, ML30 Gen10, ML30 Gen10 Entry, ML30 Gen10 Performance, ML30 Gen10 Solution, ML30 Gen9, ML30 Gen9 Base, ML30 Gen9 Entry, ML30 Gen9 Performance, ML30 Gen9 Solution, ML310e Gen8 v2, ML350 Gen10, ML350 Gen10 Base, ML350 Gen10 Entry, ML350 Gen10 High Performance, ML350 Gen10 Performance, ML350 Gen10 Solution, ML350 Gen10 Sub-Entry, ML350e Gen8 v2, ML350e Gen8 v2 Base, ML350p Gen8
- HPE ProLiant SL Series: SL270s Gen8 SE 4U Left Tray, SL270s Gen8 SE 4U Right Tray
- HPE ProLiant XL Series: XL170r Gen10, XL170r Gen9, XL190r Gen10, XL190r Gen9, XL230k Gen10 Compute Tray, XL270d Gen9, XL450 Gen10
- HPE MicroServer Gen10, MicroServer Gen10 Entry, MicroServer Gen10 Performance, MicroServer Gen10 Solution
- HPE SimpliVity 325 Gen10 Node, 380 Gen10 Node
- HPE StoreEasy 1450, 1850, 3850 Gateway Single Node
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
