Product Information

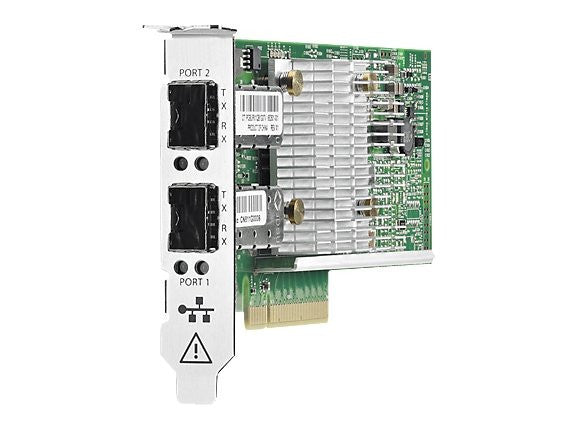

The HPE 652501-001 is the 530SFP+, a dual port 10Gb Ethernet adapter on PCIe 2.0 x8 for select HPE ProLiant Gen7, Gen8, Gen9 and Gen10 ML, DL and SL servers and Apollo Gen9 systems. It runs at full line rate on both ports with low power use.
Key Features
- Broadcom (Cavium) 57810S chipset
- NIC teaming, RSS, MSI-X, adaptive interrupt coalescing, VLAN tagging, jumbo frames and PXE boot
- VMware NetQueue and Microsoft VMQ
- HPE Sea of Sensors 3D Technology helps cut energy use
- Ships with both full height and half height brackets
Also Supported
Checksum and segmentation offload, OS specific configuration utilities, Converged Network Utility (CNU), DPDK, HPE Sea of Sensors 3D, IPv6, Jumbo Frames, LED status indicators, SNMP management support, MSI-X, NIC teaming, Network Partitioning (NPAR), VMware NetQueue and Microsoft VMQ virtualization support, PXE boot, RSS, SR-IOV, TCP/UDP/IP checksum offloads, Precision Time Protocol (IEEE 1588 PTP), TOE, Tunnel offload (VXLAN, NVGRE)
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 652501-001
Option Part Number: 652503-B21
Spare Part Number: 656244-001
Assembly Number: 652501-001
General
Product Type: Network Adapter (with both Bracket)
Form Factor: Standard and Low Profile Adapter Compliant with the PCIe Standard
Adapter Details
Network Processor: Cavium 57810S chipset
Data Rate: Two Ports, each at 20Gbps Bi-Directional; 40Gbps Aggregate Bi-Directional Theoretical Bandwidth
Onboard Memory (Interface Type): PCI Express 2.0 (Gen 2) x8
PCI Spec Revision: PCIe 2.0
Connectivity: Wired
Data Link Protocol: 10 GigE
Transfer Rate: 10 Gbps
Features: IPv6 Support, Jumbo Frames Support, Teaming Support, PXE Support, Large Send Offload (LSO), Receive Side Scaling (RSS), TCP Segmentation Offload (TSO)
Remote Management: SNMP
Status Indicators: Port Status, Link/Activity
Processor: 1 x BCM57810S - Broadcom
RAM: 256 MB
IEEE Standards: 802.3, 802.3ae, 802.3x, 802.2x, 802.3ad, 802.1Qaz, 802.1Qau, 802.1Qbb, 802.1Qbg, 802.1ax
Connections
In the Box: Low-Profile Bracket, Full-Height Bracket
Ports: 10Gb Ethernet x 2, 2 x 10Gb Ethernet - SFP+
Slot: 1 x PCI Express 3.0 x8
Software and Compatibility
Supported Operating Systems: SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 10, Microsoft Windows HPC Server 2008, Microsoft Windows Server 2008 (32/64-bits), Oracle Solaris 10, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7 Compliant Standards
Size and Weight
Width: 9.50 inch
Height: 2.25 inch
Depth: 7.50 inch
Weight: 1.00 lbs
Certifications and Approvals
RoHS Compliance: 6 of 6
USA: FCC Part 15 Class A
Canada: ICES-003, Issue 4
Japan: VCCI V3 (2010.04) Class A
International: EN55022:2006 + A1:2007 Class A, EN55022:2006 + A1:2007 Class A, EN55024:1998+A1:2011+A2, EN61000-3-2:2006, EN61000-3-3:2008
Taiwan: BSMI, CNS13438 (2006) Class A
Australia/New Zealand (AS/NZS): EN55022:2006+A12007 Class A
Korea: KN22 Class A, KN24
Power and Environment
Power Consumption: 9Watt Maximum
Operating Temp: 0° to 55°C (32° to 131°F)
Operating Humidity: 5% to 95% Non-Condensing
Compatible Systems
- HPE Apollo 4200 Gen9 Server
- HPE ProLiant DL Series: DL20 Gen9, DL60 Gen9, DL80 Gen9, DL120 Gen9, DL160 Gen9, DL180 Gen9, DL360 Gen9, DL360 Gen10, DL380 Gen9, DL380 Gen10, DL560 Gen9, DL560 Gen10, DL580 Gen9, DL580 Gen10 Servers
- HPE ProLiant DL Series (Rack-Optimized): DL160 Gen8, DL165 Gen7, DL360e Gen8, DL360p Gen8, DL380e Gen8, DL380p Gen8, DL385p Gen8, DL580 Gen7, DL585 Gen7, DL980 Gen7 Servers
- HPE ProLiant ML Series: ML30 Gen9, ML350 Gen9 Servers
- HPE ProLiant ML Series (Expansion-Optimized): ML350e Gen8, ML350p Gen8 Servers
- HPE ProLiant SL Series (Scalable Line): SL230s Gen8 and SL250s Gen8 Servers
- HPE Apollo XL Series: 2000-XL170r Gen9, 2000-XL190r Gen9, 4500 XL450 Gen9 and 6500 XL270d Gen9 Servers
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
