Product Information

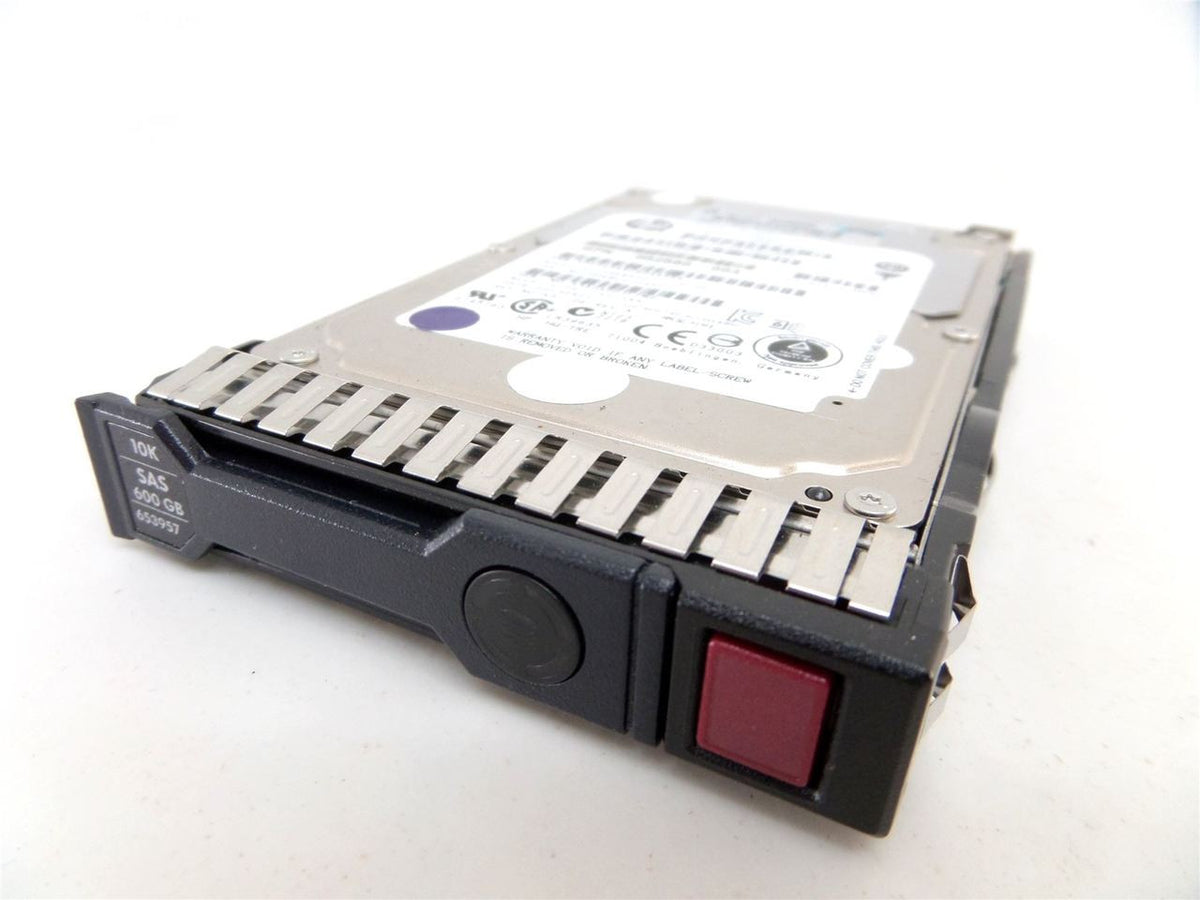

Add 600 GB of enterprise class storage to HPE ProLiant Gen8, Gen9 and Gen10 servers with the HPE 652566-003. This 2.5 inch SFF (small form factor) drive runs at 10,000 RPM over a SAS 6Gb/s connection. The drive is hot swappable, so it can be installed or replaced while the system keeps running. It comes mounted in an HPE Smart Carrier.
SAS is designed for data center duty, where storage has to stay online around the clock and serve many users at once.
About the Smart Carrier: status icons and an animated ring on the tray show what the drive is doing, a blue locator light can be turned on remotely so you pull the right tray, and a warning icon on the release button lights up if removing the drive would lose data.
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
Model: 652566-003
MPN: 652566-003
Drive Details
Drive Type: Hard Drive - Hot-Swap
Storage Capacity: 600 GB
Form Factor: 2.5 inch SFF
Host Interface: Serial Attached SCSI 2
Sector Size (Bytes): 512
Performance
Drive Transfer Rate: 600 MBps (external)
Seek Time: 4 ms (average) / 8 ms (max)
Track-to-Track Seek: 0.3 ms
Rotational Speed: 10000 rpm
Connections
Ports: 1 x Serial Attached SCSI 2
Fits Bay: 1 x hot-swap - 2.5" SFF
Size and Weight
Width: 3 in
Depth: 4.7 in
Height: 0.6 in
Operating Environment
Operating Temp (Min): 50 °F
Operating Temp (Max): 95 °F
Compatible Systems
- HPE ProLiant BL Series: BL420c Gen8 (2.5 inch), BL465c Gen8 (2.5 inch), BL660c Gen8 (2.5 inch), BL660c Gen8 Performance (2.5 inch)
- HPE ProLiant DL Series: DL320e Gen8 (2.5 inch), DL320e Gen8 Base (2.5 inch), DL320e Gen8 Entry (2.5 inch), DL320e Gen8 Performance (2.5 inch), DL360e Gen8 (2.5 inch), DL360e Gen8 Base (2.5 inch), DL360e Gen8 Entry (2.5 inch), DL360e Gen8 Performance (2.5 inch), DL360p Gen8 CMS (2.5 inch), DL360p Gen8 Performance (2.5 inch), DL380e Gen8 (2.5 inch), DL380e Gen8 Base (2.5 inch), DL380e Gen8 Entry (2.5 inch), DL380e Gen8 High Performance (2.5 inch), DL380e Gen8 Storage (2.5 inch), DL380p Gen8 Performance (2.5 inch), DL380p Gen8 Special (2.5 inch), DL385p Gen8 (2.5 inch), DL385p Gen8 Dedicated Workload (2.5 inch), DL385p Gen8 Entry (2.5 inch), DL385p Gen8 Maximized Consolidation (2.5 inch), DL385p Gen8 Storage (2.5 inch), DL385p Gen8 Storage Centric (2.5 inch), DL560 Gen8 (2.5 inch), DL560 Gen8 Base (2.5 inch), DL560 Gen8 Entry (2.5 inch), DL560 Gen8 Performance (2.5 inch)
- HPE MicroServer Series: MicroServer Gen8 (2.5 inch), MicroServer Gen8 Base (2.5 inch), MicroServer Gen8 Base Starter Kit (2.5 inch), MicroServer Gen8 Entry (2.5 inch)
- HPE ProLiant ML Series: ML110e Gen8 (2.5 inch), ML310e Gen8 (2.5 inch), ML310e Gen8 Base (2.5 inch), ML310e Gen8 Entry (2.5 inch), ML310e Gen8 Performance (2.5 inch), ML350e Gen8 (2.5 inch), ML350e Gen8 Base (2.5 inch), ML350e Gen8 Entry (2.5 inch), ML350e Gen8 Performance (2.5 inch), ML350e Gen8 v2 (2.5 inch), ML350p Gen8 (2.5 inch)
- HPE ProLiant SL Series: SL210t Gen8 (2.5 inch), SL210t Gen8 1U Node (2.5 inch), SL230s Gen8 1U Left Half Width Tray (2.5 inch), SL250s Gen8 2U PCIe Gen3 Left Tray (2.5 inch), SL250s Gen8 2U PCIe Gen3 Right Tray (2.5 inch), SL250s Gen8 Base 2U Left Half Width Tray (2.5 inch), SL250s Gen8 Base 2U Right Half Width Tray (2.5 inch), SL250s Gen8 Left Tray (2.5 inch), SL250s Gen8 Right Tray (2.5 inch), SL270s Gen8 1U Left Half Width Tray (2.5 inch), SL270s Gen8 1U Right Half Width Tray (2.5 inch), SL270s Gen8 Base 4U Left Half Width Tray (2.5 inch), SL270s Gen8 Base 4U Right Half Width Tray (2.5 inch), SL270s Gen8 SE 4U Left Tray (2.5 inch), SL270s Gen8 SE 4U Right Tray (2.5 inch), SL4540 Gen8 (2.5 inch), SL4540 Gen8 Tray 2x Node Server (2.5 inch)
- HPE ProLiant WS Series: WS460c Gen8 (2.5 inch) Product features Smart Carriers
- HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.
- HPE Server Enterprise Hard Drives offer the highest level of performance and reliability for your most demanding application workloads. Enterprise drives help you improve server response times, power more transactions per second and accelerate data transfer (I/O) speeds. Drives are backed by over 3.35 million hours of the industry's most rigorous testing and qualification program ensuring customer's reliable, rugged drives. Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
