Product Information

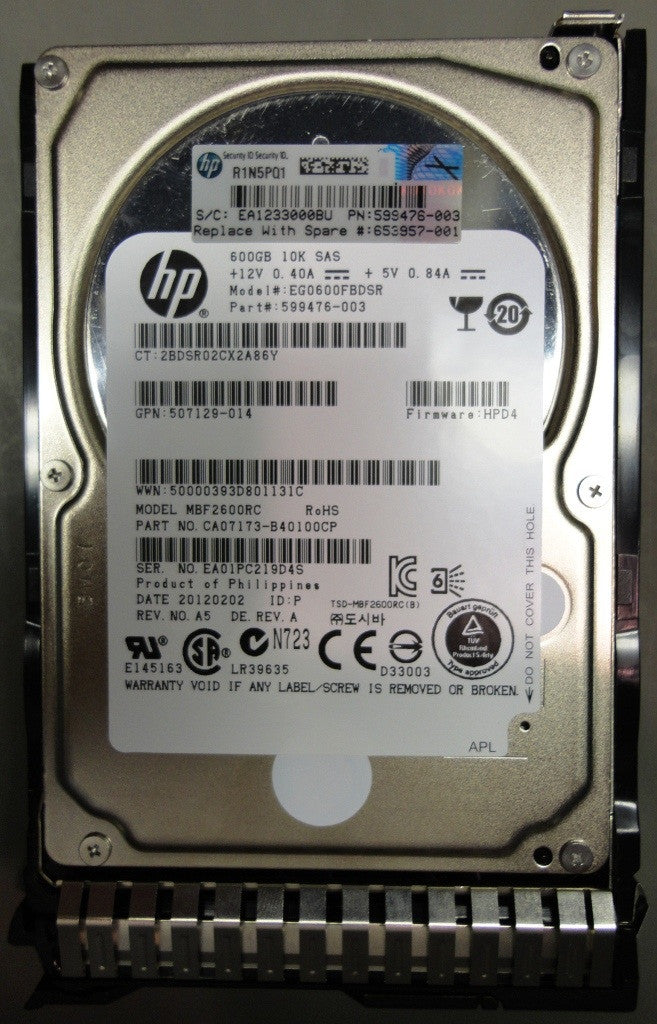

HPE 652583-B21 600GB Enterprise Hard Drive for ProLiant Gen8 Gen9 Gen10 Servers. This 2.5 inch Small Form Factor (SFF) drive spins at 10,000 RPM, connects through a dual port SAS 6Gbps interface and comes in an HPE Smart Carrier.
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Enterprise class SAS drives are built for servers that stay busy around the clock. A 10,000 RPM spindle keeps access times short, which makes this drive a good match for databases, virtual machines, email servers and other workloads that handle lots of small, random reads and writes.
The SAS 6Gbps interface gives this drive a reliable, server grade connection. SAS drives can be swapped while the system is running and are designed for nonstop duty in rack servers and storage arrays.
The HPE Smart Carrier has status lights that show drive activity and health at a glance, along with a warning indicator that helps prevent pulling a drive that is still in use.
Part Numbers
Brand: HPE
MPN: 652583-B21
Option Part Number: 652583-B21
Spare Part Number: 653957-001
Model Number: EG0600FBDBU
Model Number: EG0600FBVFP
Model Number: EG0600FBDSR
Model Number: EG0600FCHHU
Model Number: EG0600FBLSH
Model Number: EG0600FCSPL
Model Number: EG0600FCVBK
Model Number: EG000600JWEBH
Model Number: EG0600JEMCV
Model Number: EG000600JWFUR
Model Number: EG0600JEHMA
Model Number: EG0600JETKA
Assembly Number: 597609-003
Assembly Number: 641552-003
Assembly Number: 599476-003
Assembly Number: 666355-003
Assembly Number: 619286-003
Assembly Number: 689287-003
Assembly Number: 693569-003
Assembly Number: 869714-002
Assembly Number: 781514-001
Assembly Number: 872283-002
Assembly Number: 768788-002
Assembly Number: 796365-002
HPE GPN: 507129-014
Drive Details
Device Type: Hard Drive - Hot-Swap
HDD Capacity: 600 GB
Form Factor: 2.5 inch SFF
Interface: SAS-6Gbps
Spindle Speed: 10000 RPM
External Data Transfer Rate: 600 MBps
Workload Type: Enterprise
Bytes per Sector: 512
Bundled with: HPE SmartDrive Carrier
Speed and Throughput
Seek Time: 4 ms (average) / 8 ms (max)
Track-to-Track Seek Time: 0.3 ms
Connection
Interfaces: 1 x SAS 6 Gb/s
Compatible Bays: 2.5" SFF
Operating Environment
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Size
Width: 3.00 inch
Depth: 4.70 inch
Height: 0.60 inch
Compatible Systems
HPE ProLiant BL Series: BL420c (Gen8 Gen9) BL460c (Gen8 Gen9) BL465c (Gen8 Gen9) BL660c (Gen8 Gen9)
HPE ProLiant DL Series: DL20 (Gen9) DL120 (Gen8 Gen9) DL160 (Gen8 Gen9) DL180 (Gen8 Gen9) DL320e (Gen8 Gen9) DL360 (Gen8 Gen9) DL360e (Gen8 Gen9) DL388 (Gen9) DL360p (Gen8 Gen9) DL380 (Gen8 Gen9) DL380e (Gen8 Gen9) DL380p (Gen8 Gen9) DL385p (Gen8 Gen9) DL560 (Gen8 Gen9) DL580 (Gen8 Gen9)
HPE ProLiant ML Series: ML110 (Gen8 Gen9) ML150 (Gen8 Gen9) ML310e (Gen8 Gen9) ML350 (Gen8 Gen9) ML350e (Gen8 Gen9) ML350p (Gen8 Gen9)
HPE ProLiant SL Series: SL230s (Gen8 Gen9) SL250s (Gen8 Gen9) SL270s (Gen8 Gen9)
HPE ProLiant XL Series: XL170r (Gen9) XL190r (Gen9) XL220a (Gen9) XL230a (Gen9) XL250a (Gen9)
Not sure this drive fits your system? Send us your server or storage model and we will confirm compatibility before you order.
