Product Information

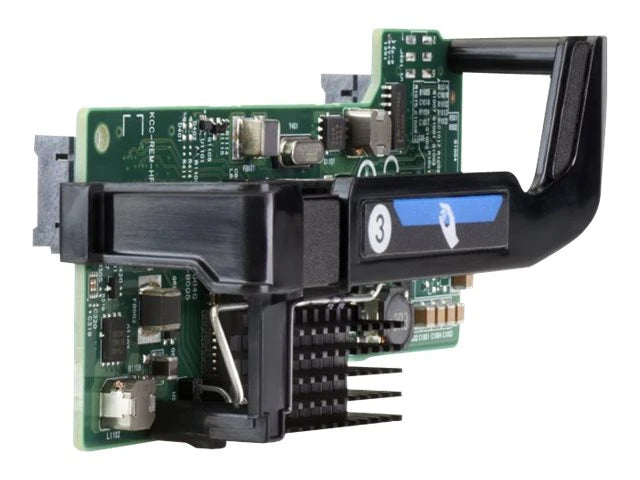

The HPE 655639-B21 is a dual port 10Gb converged Ethernet FlexibleLOM blade adapter on PCIe 2.0 x8 for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- Intel controller
- Wake on LAN, jumbo frames, PXE boot and LSO
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 655639-B21
Option Part Number: 655639-B21
Spare Part Number: 656243-001
General
Product Type: Network adapter - 2 ports
Adapter Details
Bus Type: PCI Express 2.0 x8
PCI Spec Revision: PCIe 2.0
Connectivity: Wired
Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet
Transfer Rate: 10 Gbps
Remote Management: SNMP
Features: Wake on LAN (WOL), Jumbo Frames support, teaming support, PXE support, Large Send Offload (LSO), Receive Side Scaling (RSS)
Processor: 1 x Intel
Connections
Expansion Slots: 1 x FlexibleLOM
Software and Compatibility
Supported Operating Systems: Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server for x86/AMD64/Intel EM64T, Microsoft Windows Server 2008, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7, Citrix XenServer 6.0
Power and Environment
Compliance: IEEE 802.3, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.3ak, IEEE 802.1as, IEEE 802.3ap, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1au, UL, BSMI, BSMI CNS 13438 Class A, WEEE, RoHS, FCC Part 15 A, AS/NZS, VCCI V-3 Class A ITE
Power Draw (operating): 7.60 Watt
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 90% (non-condensing)
Compatible Systems
- HPE ProLiant BL Series:
- HPE ProLiant BL460c Gen10, BL460c Gen8
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
