Product Information

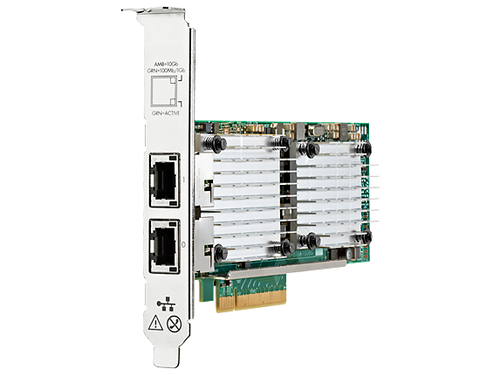

The HPE 656596-B21 is the Ethernet 10Gb 2-port 530T, a 10GBASE-T low profile adapter for HPE ProLiant and Apollo servers. It uses the QLogic 57810S 10GbE solution on a PCIe 2.0 x8 card and runs at full line rate on all ports with low power draw.
Key Features
- 40 Gb/s total full duplex throughput
- Works with 1GbE networks over CAT 6A UTP up to 100 meters
- Stateless offloads free up host CPU and raise VM density
- Network partitioning splits the 10Gb adapter into four partitions, so fewer NICs, HBAs and cables are needed
- VMware NetQueue and Microsoft VMQ
- NIC teaming, RSS, MSI/MSI-X, adaptive interrupt coalescing, VLAN tagging, jumbo frames and PXE boot
- HPE Sea of Sensors 3D Technology
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: 656596-B21
Option Part Number: 656596-B21
Spare Part Number: 657128-001
Assembly Number: 656594-001
General
Product Type: Network Adapter
Form Factor: Plug-in card
Adapter Details
Bus Type: PCI Express 2.0 x8
Connectivity: Wired
Data Link Protocol: GigE, 10 GigE
Features: TCP/IP offloading, Jumbo Frames support, teaming support, PXE support, Receive Side Scaling (RSS), tagged VLAN, Extended Message-Signaled Interrupts (MSI-X)
Processor: BCM57810S - Broadcom
RAM: 256 MB
Connections
Network Ports: 10Gb Ethernet
Cabling: Ethernet 1000Base-T, Ethernet 10GBase-T
Ports: 1 x 10GBase-T - RJ-45
Slot: 1 x PCI Express 2.0 x8
Software and Compatibility
Supported Operating Systems: SunSoft Solaris 10, Microsoft Windows HPC Server 2008 SP2, Microsoft Windows Small Business Server 2011 Essentials, Microsoft Windows MultiPoint Server 2011, Microsoft Windows Small Business Server 2011, Microsoft Windows Server 2008 (32/64-bits) SP2, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 6.2, Red Hat Enterprise Linux 5.7, SuSE Linux Enterprise Server 10 SP4, Citrix XenServer 6.0, SuSE Linux Enterprise Server 11 SP2, Microsoft Windows Server 2012, Red Hat Enterprise Linux 5.8, Microsoft Windows Server 2008 R2 SP1 (32/64 bits), Microsoft Windows HPC Server 2008 R2 SP1, Red Hat Enterprise Linux 5.9, Red Hat Enterprise Linux 6.3, SunSoft Solaris 11, Citrix XenServer 6.1
Power and Environment
Compliance: IEEE 802.3, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 802.2x, UL, BSMI, BSMI CNS 13438 Class A, EN55024, EN55022 Class A, ICES-003 Class A, WEEE, FCC Part 15 A, EN 61000-3-2:2006, EN 61000-3-3:2008
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 5 - 95% (non-condensing)
Compatible Systems
- HPE Apollo 4200 Gen9 Servers
- HPE ProLiant DL Series: DL20 Gen9, DL360 Gen9, DL380 Gen9, DL120 Gen10, DL160 Gen10, DL180 Gen10, DL360 Gen10, DL380 Gen10, DL560 Gen10, DL580 Gen10, DL385 Gen10, DL325 Gen10 Servers
- HPE ProLiant ML Series: ML30 Gen9, ML110 Gen10, ML350 Gen10 Servers
- HPE Apollo XL Series: 2000 - XL170r Gen10, 2000 - XL190r Gen10, 4500 - XL450 Gen10 and 6500 - XL270d Gen9 Servers
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
