Product Information

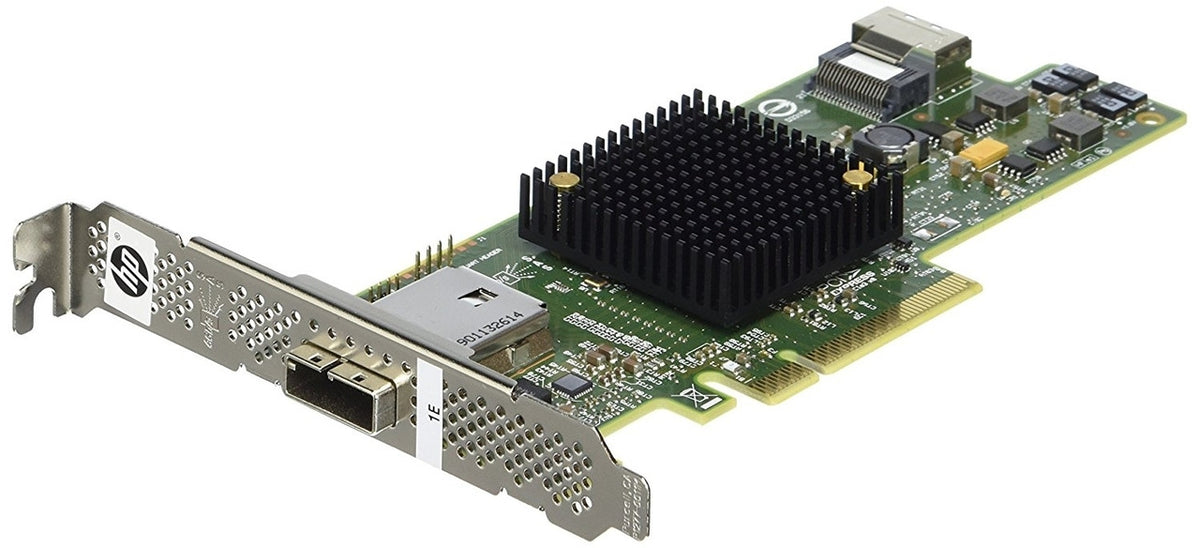

The HPE 660086-001 is an H222 Host Bus Adapter for HPE ProLiant Gen8, Gen9 and Gen10 servers. It has 8 channels, with four internal plus four external SAS ports, a PCIe 3.0 x8 interface and 6Gb/s SAS/SATA support.
Key Features
- One x4 external port and one x4 internal port
- Connects tape drives, HDDs and external JBODs, inside or outside the server
- Supports 6Gb SAS and SATA hard drives, plus SAS tape drives
- Also a fast option for SSDs that do not need RAID data protection
- A cost effective way to scale storage in the data center
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 660086-001
Option Part Number: 650926-B21
Spare Part Number: 660086-001
General
Product Type: Host Bus Adapter - Plug-in Module - Low Profile
Adapter Details
Host Bus: PCIe 3.0 x8
Drive Interface: SATA 6Gb/s / SAS 6Gb/s
Transfer Rate: 600 MBps
Supported Devices: Hard drive, tape drive, solid state drive
Channels: 8
Connections
Ports: 1 x SATA 6Gb/s / SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) ( external ) 1 x SATA 6Gb/s / SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) ( internal )
Software and Compatibility
Supported Operating Systems: SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 SP2, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5, Red Hat Enterprise Linux 6, Oracle Solaris 10, Microsoft Windows Server 2008 R2 SP1, Red Hat Enterprise Linux 6.2, Microsoft Windows Server 2012, Red Hat Enterprise Linux 5.8
Size and Weight
Width: 0.60 inch
Depth: 6.60 inch
Height: 2.70 inch
Power and Environment
Compliance: WEEE
Compatible Systems
- HPE LTO-5 Ultrium 3000
- HPE ProLiant DL Series: DL160 Gen8, DL160 Gen8 Base, DL160 Gen8 Entry, DL160 Gen8 Performance, DL320e Gen8, DL320e Gen8 Base, DL320e Gen8 Entry, DL320e Gen8 Performance, DL360e Gen8, DL360e Gen8 Base, DL360e Gen8 Entry, DL360e Gen8 Performance, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL380e Gen8, DL380e Gen8 Base, DL380e Gen8 Entry, DL380e Gen8 High Performance, DL380e Gen8 Storage, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Special, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL560 Gen8, DL560 Gen8 Base, DL560 Gen8 Entry, DL560 Gen8 Performance
- HPE ProLiant ML Series: ML310e Gen8, ML310e Gen8 Base, ML310e Gen8 Entry, ML310e Gen8 Performance, ML310e Gen8 v2 Base, ML350e Gen8, ML350e Gen8 Base, ML350e Gen8 Entry, ML350e Gen8 Performance, ML350e Gen8 v2, ML350e Gen8 v2 Base, ML350p Gen8, ML350p Gen8 Base, ML350p Gen8 Entry, ML350p Gen8 Performance
- HPE ProLiant SL Series: SL210t Gen8 1U Node, SL230s Gen8 1U Left Half Width Tray, SL230s Gen8 1U Right Half Width Tray, SL230s Gen8 Base 1U Left Tray Server, SL230s Gen8 Base 1U Right Tray Server, SL250s Gen8 2U Left Half Width Tray, SL250s Gen8 2U PCIe Gen3 Left Tray, SL250s Gen8 2U Right Half Width Tray, SL250s Gen8 Base 2U Left Half Width Tray, SL250s Gen8 Base 2U Left Tray Server, SL250s Gen8 Base 2U Right Half Width Tray, SL250s Gen8 Base 2U Right Tray Server, SL270s Gen8 Base 4U Left Half Width Tray, SL270s Gen8 Base 4U Right Half Width Tray, SL270s Gen8 SE 4U Left Tray, SL270s Gen8 SE 4U Right Tray
- HPE StorageWorks SAS Rack-Mount Kit
- HPE StoreEver LTO-6 Ultrium 6250, LTO-6 Ultrium 6650
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
