Product Information

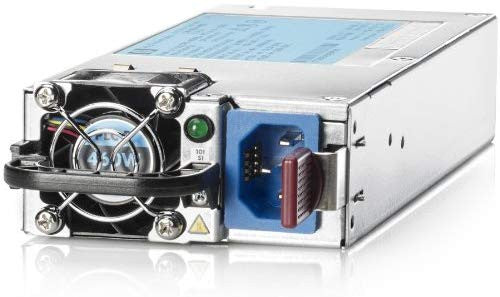

The HPE 660184-001 is a 460 watt Common Slot Platinum Plus hot plug power supply for HPE ProLiant Gen8 servers. It accepts 100 to 240 volt AC input.
Key Features
- 460W output, 100-240V AC input
- 94% efficiency
- Common Slot design shared across HPE server and storage products, with hot swap, tool-less installation
- Pick the input and output rating that fits your setup, which helps avoid wasted or stranded power capacity
- Platinum Plus and Titanium models support HPE Power Discovery Services for tracking and managing power use
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 660184-001
Option Part Number: 656362-B21
Spare Part Number: 660184-001
Model Number: DPS-460MB
Assembly Number: 643954-101
HPE GPN: 643931-001
General
Product Type: Power Supply - Hot-Plug - Plug-in Module
Power
Input Voltage: AC 100-240 V
Input Frequency: Min 47Hz to Max 63Hz
Frequency: 50/60 Hz
Output Capacity: 460 Watt
Efficiency: 94%
Power Factor: 0.998
Max Inrush Current (A peak): 30
Max Inrush Current Duration (mS): 20
Compatible Systems
- HPE ProLiant BL Series: BL460c Gen9 Server Blade, BL660c Gen9 Server Blade, BL460c Gen10 Server Blade
- HPE ProLiant WS Series: WS460c Gen9 Server Blade (on Gen10, thermal reporting is handled by the server design, not the adapter)
- HPE Blade Switch: 6120XG Blade Switch, 6120G/XG Blade Switch, 6125G/XG Ethernet Blade Switch, 6125XLG Ethernet Blade Switch, 6127XLG Ethernet Blade Switch and GbE2c Layer 2/3 Ethernet Blade Switch
- HPE Ethernet BL-c Switch: 1:10Gb Ethernet BL-c Switch
- Cisco Catalyst Blade Switch for HPE: 3120G Blade Switch, 3120X Blade Switch and 3020 Blade Switch
- Cisco Fabric Extender for HPE: B22HP
- HPE Pass Thru Module: 10GbE Pass-Thru Module and 1GbE Pass Thru Module
Note: 10GbE converged connectivity works with the HPE 6120XG and 6125XG series switches, the Cisco B22 Fabric Extender and HPE 10GbE Pass-Thru modules. Every other supported interconnect or switch runs at 1GbE per connection for Ethernet only traffic.
Note: Wake-on-LAN works only on Port 1, from system power state S5.
