Product Information

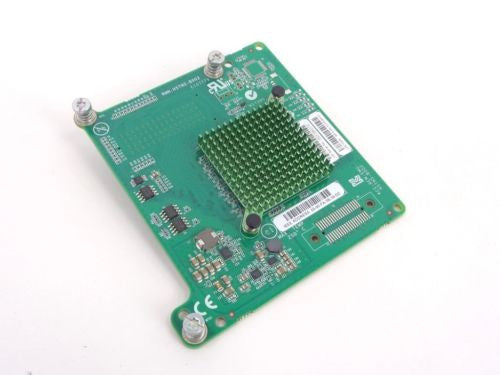

The HPE 662538-001 is the Emulex LPe1205A, a dual port 8Gb Fibre Channel host bus adapter for select HPE BladeSystem c-Class server blades. It uses a PCI Express 2.0 interface and suits enterprise network and storage connections.
Key Features
- 8.5 Gb/s Fibre Channel transfer rate
- Two 8Gb Fibre Channel ports
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: 662538-001
Option Part Number: 659818-B21
Spare Part Number: 662538-001
General
Product Type: Host Bus Adapter
Adapter Details
Bus Type: PCI Express 2.0 x4 / PCI Express x8
Connectivity: Wired
Data Link Protocol: 2Gb Fibre Channel, 4Gb Fibre Channel, 8Gb Fibre Channel
Fibre Channel Features: FC-Tape, FC-SP
Transfer Rate: 8.5 Gbps
Connections
Network Ports: 8Gb Fibre Channel x 2
Ports: 2 x network - 8Gb Fibre Channel
Software and Compatibility
Supported Operating Systems: SunSoft Solaris x86 10, SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5, Microsoft Windows Server 2008, Red Hat Enterprise Linux 6
Size and Weight
Depth: 3.90 inch
Height: 3.50 inch
Power and Environment
Compliance: WEEE
Operating Temp (Min): 50 °F
Operating Temp (Max): 158 °F
Operating Humidity: 10 - 90% (non-condensing)
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
