Product Information

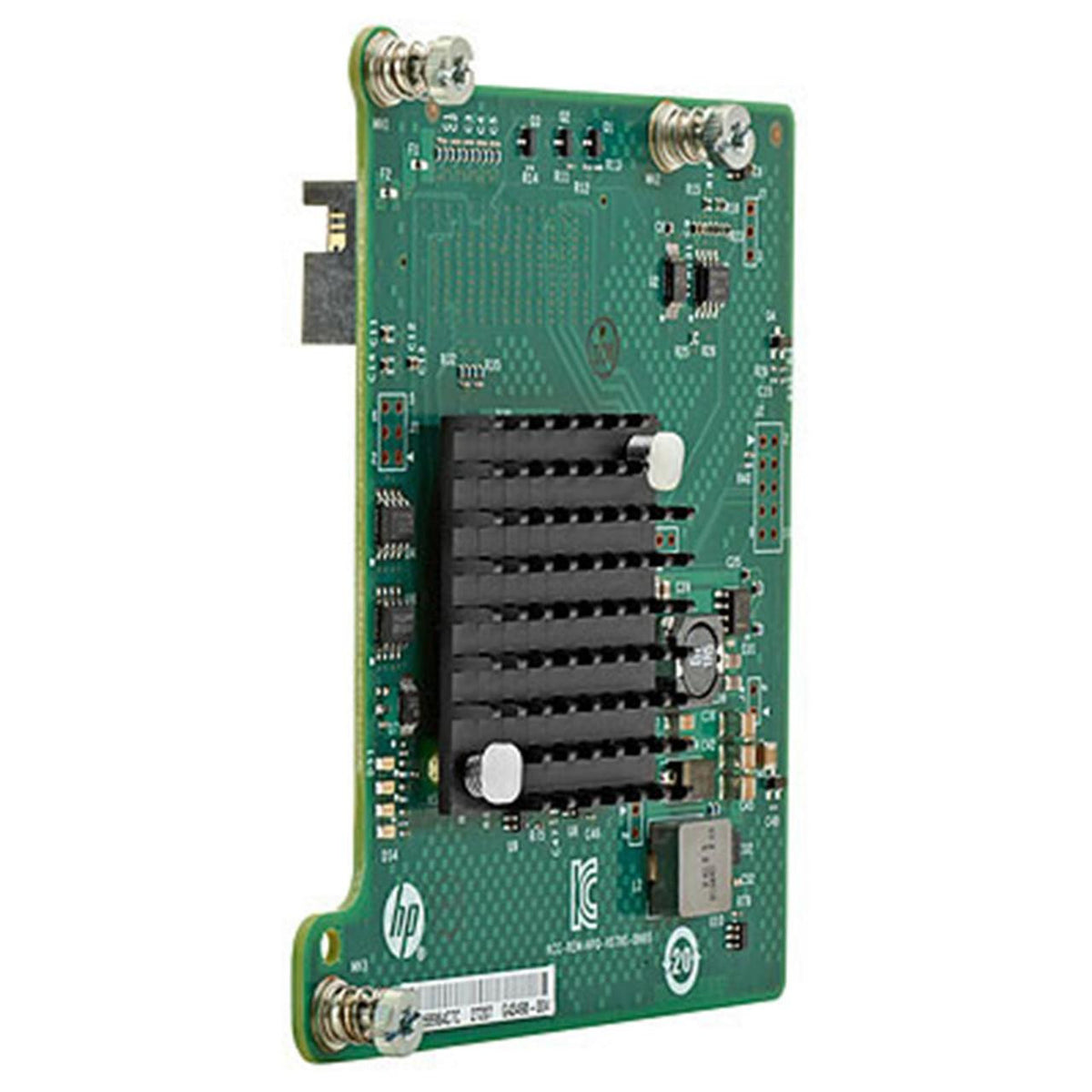

The HPE 665246-B21 is the Ethernet 10Gb 2-port 560M, a low cost, low power PCIe 2.0 x8 mezzanine adapter for HPE ProLiant BL c-Class blade servers.
Key Features
- Intel 82599 controller
- Line rates reach 40 Gb/s bi-directional
- SR-IOV ready, plus Intel VT-c and VMDq for VMware NetQueue, Microsoft VMQ, Xen and Linux
- IEEE 1588 and 802.1AS time stamping
- NIC teaming, RSS, MSI-X, adaptive interrupt coalescing, VLAN tagging, jumbo frames and PXE boot
- Wake-on-LAN at 1Gb, IPv6 and HPE Sea of Sensors 3D Technology
- Under 6.5 watts of power dissipation
Also Supported
HPE Active Health System, DPDK, HPE Sea of Sensors 3D, Interrupt Coalescing, Jumbo Frames, SNMP management support, NIC teaming, VMware NetQueue and Microsoft VMQ virtualization support, PXE boot, TCP/UDP/IP checksum offloads, Precision Time Protocol (IEEE 1588 PTP)
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: 665246-B21
Option Part Number: 665246-B21
Spare Part Number: 669282-001
Model: HPE Ethernet 10Gb 2-Port 560M Adapter
General
Product Type: Network Adapter - Dual Port
Form Factor: Type A Mezzanine Card
Adapter Details
Bus Type: PCI Express 2.0 (Gen 2) x8
Network Processor: Intel® 82599 Controller
Data Rate: Two ports, each at 20 Gbps bi-directional; 40 Gbps aggregate bi-directional theoretical bandwidth
Connectivity: Wired
Data Link Protocol: GigE, 10 GigE
Transfer Rate: 10 Gbps
Features: Wake on LAN (WOL), Quality of Service (QoS), Jumbo Frames support, Virtual Machine Device Queues (VMDq), Teaming Support, PXE Support, Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Tagged VLAN, Extended Message-Signaled Interrupts (MSI-X)
IEEE Standards: 802.3, 802.1ab, 802.3x, 802.3ad, 802.3p/802.1q, 802.3ae, 802.1qau, 802.3ap, 802.1as, 802.1qaz, 802.1Qbb RoHS Compliance 6 of 6
Processor: 1 - Intel® 82599 Controller
Connections
Slot: 1 x
Software and Compatibility
OS and Virtualization Support: Microsoft Windows Server 2012; Microsoft Windows Server 2008 SP2, R2 (x86, x64); Microsoft Windows Hyper-V, R2 SP1; Red Hat Enterprise Linux (RHEL) 5.7, 6.1 (x86, EM64T/AMD64); SUSE Linux Enterprise Server (SLES) (x86, EM64T/AMD64); VMware ESX/ESXi 4.1u2, ESXi 5.0u1, ESXi 5.1.; vSphere 6.5; Citrix XenServer 6.0; Solaris 10 (x86, x64)
Size and Weight
Width: 8.25 inch
Height: 2.50 inch
Depth: 9.78 inch
Weight: 1.00 lbs
Certifications and Approvals
USA: FCC (CFR 47 part 15) and UL 60950
Canada: ICES-003 and CSA60950
Japan: VCCI
European Union: EN55022:1998 (CISPR 22), EN55024:1998 and IEC60950:1999 (EN60950:2000)
Australia: ACA, AS/NZS3548/EN55022:1998, EN55024:1998
Korea: MIC (RRL), EMC Registration
Notes
Note: The HPE 560M on each server blade connects to a 10Gb interconnect in bays 3-8 (HPE BladeSystem C7000 Enclosure) or bays 2-4 (HPE BladeSystem C3000 Enclosure). This adapter requires a minimum of 2 GB of server memory.
Power and Environment
Power Consumption: 6.5 Watt Maximum
Operating Temp (Min): 32 °F (0°C)
Operating Temp (Max): 131 °F (55°C)
Operating Humidity: 10 - 90% (Non-Condensing)
Compatible Systems
- HPE ProLiant BL Series: BL460c Gen9 Server Blade, BL660c Gen9 Server Blade, BL460c Gen10 Server Blade
- HPE ProLiant WS Series: WS460c Gen9 Server Blade (on Gen10, thermal reporting is handled by the server design, not the adapter)
- HPE Blade Switch: 6120XG Blade Switch, 6120G/XG Blade Switch, 6125G/XG Ethernet Blade Switch, 6125XLG Ethernet Blade Switch, 6127XLG Ethernet Blade Switch and GbE2c Layer 2/3 Ethernet Blade Switch
- HPE Ethernet BL-c Switch: 1:10Gb Ethernet BL-c Switch
- Cisco Catalyst Blade Switch for HPE: 3120G Blade Switch, 3120X Blade Switch and 3020 Blade Switch
- Cisco Fabric Extender for HPE: B22HP
- HPE Pass Thru Module: 10GbE Pass-Thru Module and 1GbE Pass Thru Module
Note: 10GbE converged connectivity works with the HPE 6120XG and 6125XG series switches, the Cisco B22 Fabric Extender and HPE 10GbE Pass-Thru modules. Every other supported interconnect or switch runs at 1GbE per connection for Ethernet only traffic.
Note: Wake-on-LAN works only on Port 1, from system power state S5.
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
