Product Information

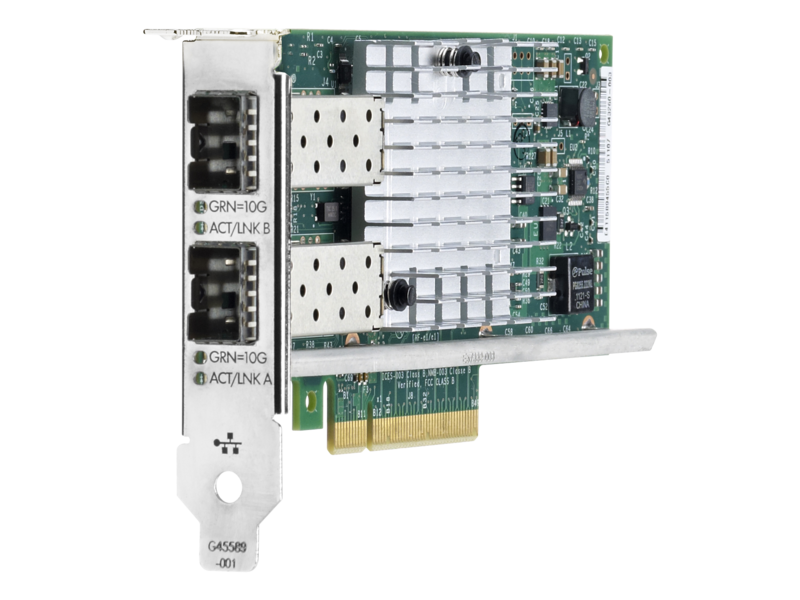

The HPE 665247-001 is the Ethernet 10Gb 2-port 560SFP+, a low cost, low power PCIe 2.0 x8 stand up adapter for HPE ProLiant Gen8 and Gen9 servers. It fits a standard PCIe slot and ships with low profile and standard brackets.
Key Features
- Intel 82599 controller
- Two SFP+ cages for DAC cables or SR fiber optic modules
- 20Gb/s full duplex per port, 40Gb/s aggregate
- IEEE 1588 and 802.1AS precision time stamping
- Virtualization support with VLAN tagging, NetQueue, VMQ and VMDq, and SR-IOV ready
- TCP/UDP checksum and segmentation offload (TSO) to cut CPU overhead
- Low latency interrupts, MSI-X, NIC teaming, RSS, jumbo frames, PXE boot and IPv6
- HPE Sea of Sensors 3D Technology support, plus Wake-on-LAN at 1Gb
Also Supported
DPDK, HPE Sea of Sensors 3D, IPv6, MSI-X, NIC teaming, VMware NetQueue and Microsoft VMQ virtualization support, LED status indicators, PXE boot, RSS, SR-IOV, Precision Time Protocol (IEEE 1588 PTP)
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 665247-001
Option Part Number: 665249-B21
Spare Part Number: 669279-001
Assembly Number: 665247-001
General
Product Type: Network Adapter (HPE Ethernet 10Gb 2-port 560SFP+ Adapter)
Form Factor: Stand Up - Plug-in Card
Adapter Details
Bus Type: PCI Express 2.0 x8
PCI Spec Revision: PCI 2.0
Connectivity: Wired
Data Link Protocol: 10 Gigabit Ethernet
Data Rate: 2 port, each at 10Gbps
Features: VLAN support, IPv6 support, Jumbo Frames support, IPv4 support, PXE support, TCP Segmentation Offload (TSO)
Network/Transport Protocol: TCP/IP, UDP/IP
Status Indicators: Port status, link/activity
IEEE Standards: 802.3, 802.1ab, 802.3x, 802.3ad, 802.1p/ 802.1q, 802.3ae, 802.1Qau, 1588
Network Processor: Intel® 82599 Controller (Intel® Ethernet Converged Network Adapter X520-DA2)
RAM: 256 MB
Connections
In the Box: Low Profile Bracket
Ports: 10Gb Ethernet x 2, 2 x 10Gb Ethernet - SFP+
Slot: 1 x PCI Express 2.0 x8
Power and Environment
Power Draw (operating): 10 Watt
Compliance: FCC Class A certified, UL, BSMI, VCCI Class B ITE, BSMI CNS 13438 Class B, ICES-003, EN55024, CISPR 22, EN55022 Class B, FCC Part 15, WEEE, RoHS, EN 61000-3-2:2006, EN 61000-3-3:2008
Operating Temp: 0° to 55°C (32° to 131°F)
Non-Operating Temp: -65° to 85° C (-85° to 185° F)
Operating Humidity: 10% to 90% non-condensing
Non-Operating Humidity: 5% to 95% non-condensing
Compatible Systems
- HPE ProLiant DL Series: DL160 Gen8, DL160 Gen8 Base, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL20 Gen9 Solution, DL320e Gen8, DL320e Gen8 Base, DL320e Gen8 Entry, DL320e Gen8 Performance, DL360e Gen8, DL360e Gen8 Base, DL360e Gen8 Entry, DL360e Gen8 Performance, DL360e Gen8 Special Server, DL360p Gen8, DL360p Gen8 CMS, DL360p Gen8 Special Server, DL380 Gen9 High Performance, DL380e Gen8, DL380e Gen8 Base, DL380e Gen8 Entry, DL380e Gen8 High Performance, DL380e Gen8 Storage, DL380p Gen8 Special, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL560 Gen8, DL560 Gen8 Base, DL560 Gen8 Entry, DL560 Gen8 Performance, DL560 Gen9, DL560 Gen9 Base, DL560 Gen9 Entry, DL560 Gen9 Performance, DL80 Gen9 Entry
- HPE ProLiant ML Series: ML110 Gen9, ML110 Gen9 Base, ML110 Gen9 Entry, ML30 Gen9, ML30 Gen9 Base, ML30 Gen9 Entry, ML30 Gen9 Performance, ML30 Gen9 Solution, ML310e Gen8, ML310e Gen8 Base, ML310e Gen8 Entry, ML310e Gen8 Performance, ML310e Gen8 v2, ML350 Gen9, ML350 Gen9 Base, ML350 Gen9 Entry, ML350 Gen9 Performance, ML350e Gen8, ML350e Gen8 Base, ML350e Gen8 Entry, ML350e Gen8 Performance, ML350e Gen8 v2, ML350e Gen8 v2 Base, ML350p Gen8, ML350p Gen8 Special Server
- HPE ProLiant SL Series: SL230s Gen8 1U Left Half Width Tray, SL230s Gen8 1U Right Half Width Tray, SL250s Gen8 2U Left Half Width Tray, SL250s Gen8 2U PCIe Gen3 Left Tray, SL250s Gen8 2U PCIe Gen3 Right Tray, SL250s Gen8 2U Right Half Width Tray, SL250s Gen8 Base 2U Left Half Width Tray, SL250s Gen8 Base 2U Right Half Width Tray, SL270s Gen8 1U Left Half Width Tray, SL270s Gen8 1U Right Half Width Tray, SL270s Gen8 Base 4U Left Half Width Tray, SL270s Gen8 Base 4U Right Half Width Tray, SL270s Gen8 SE 4U Left Tray, SL270s Gen8 SE 4U Right Tray
- HPE ProLiant XL Series: XL170r Gen9, XL190r Gen9, XL270d Gen9
- HPE SimpliVity 380 Gen9 Node
- HPE StoreEasy 1450, 1850, 3850 Gateway Single Node
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
