Product Information

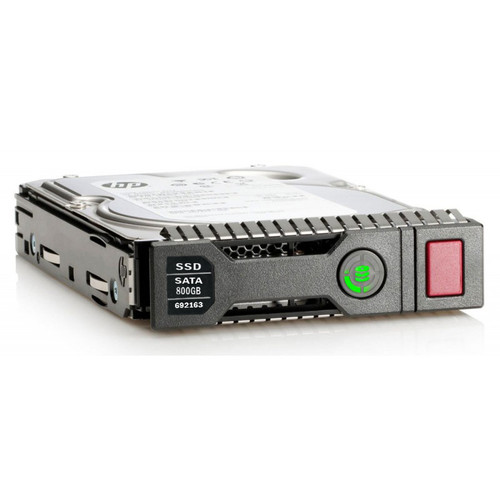

The HPE 691860-B21 gives you 800GB of Enterprise Mainstream class flash storage in a 3.5 inch large form factor (LFF) SSD with a 6Gb SATA interface. The drive is rated for HPE Mainstream Endurance and uses MLC NAND. It comes in an HPE Smart Carrier (SC). It is intended for HPE ProLiant Gen8 and Gen9 servers.
Key Features
- 800GB capacity
- SATA 6Gb/s interface
- 3.5 inch LFF
- Enterprise Mainstream class
- Mainstream Endurance
- MLC NAND
- HPE Smart Carrier (SC)
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Specifications
Brand: HPE
MPN: 691860-B21
Option Part Number: 691860-B21
Spare Part Number: 692163-001
Model Number: MK0800GCTZB
Assembly Number: 691842-004
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 800 GB
Form Factor: 3.5 inch LFF
Interface Type: SATA 6Gbps
Logical Blocks: 512 bytes
NAND Flash Memory Type: Multi-Level Cell (MLC)
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier (SC)
Workload Type: Enterprise Mainstream
Features: Mainstream Endurance
Bundled with: HPE Smart Carrier (SC)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 15 mm (0.6 inch)
Performance
Transfer Rate Synchronous (Maximum): 6 Gb/sec
Random Read IOPS: 61000
Random Write IOPS: 35000
MAX Seq. Read Throughput (MiB/s): 480
MAX Seq. Write Throughput (MiB/s): 450
Expansion & Connectivity
Compatible Bay: 3.5" SFF
Interfaces: 1 x SATA 6 Gb/s
Power
Max
Power Consumption: 9.00 Watts
Product Dimensions & Weight
Height: 8.63 inch (21.92 cm)
Width: 5.75 inch (14.605 cm)
Depth: 11.00 inch (27.94 cm)
Weight: 1.35 lbs (612.35 gm)
Environmental Parameters
Min Operating Temperature: 0 °C
Max Operating Temperature: 60 °C
Compatible Systems
- HPE ProLiant DL Series: DL160 Gen8 (3.5 inch), DL160 Gen8 Base (3.5 inch), DL160 Gen8 Entry (3.5 inch), DL160 Gen8 Performance (3.5 inch), DL180 Gen9 (3.5 inch), DL180 Gen9 Base (3.5 inch), DL180 Gen9 Entry (3.5 inch), DL180 Gen9 Storage (3.5 inch), DL320e Gen8 (3.5 inch), DL320e Gen8 Base (3.5 inch), DL320e Gen8 Entry (3.5 inch), DL320e Gen8 Performance (3.5 inch), DL320e Gen8 v2 (3.5 inch), DL320e Gen8 v2 Base (3.5 inch), DL320e Gen8 v2 Performance (3.5 inch), DL360 Gen9 CMS (3.5 inch), DL360e Gen8 (3.5 inch), DL360e Gen8 Base (3.5 inch), DL360e Gen8 Entry (3.5 inch), DL360e Gen8 Performance (3.5 inch), DL360e Gen8 Special Server (3.5 inch), DL360p Gen8 (3.5 inch), DL360p Gen8 Base (3.5 inch), DL360p Gen8 CMS (3.5 inch), DL360p Gen8 High Performance (3.5 inch), DL360p Gen8 Performance (3.5 inch), DL380 Gen9 (3.5 inch), DL380 Gen9 Base (3.5 inch), DL380 Gen9 Entry (3.5 inch), DL380 Gen9 Performance (3.5 inch), DL380e Gen8 (3.5 inch), DL380e Gen8 Base (3.5 inch), DL380e Gen8 Entry (3.5 inch), DL380e Gen8 High Performance (3.5 inch), DL380e Gen8 Storage (3.5 inch), DL380p Gen8 High Performance (3.5 inch), DL380p Gen8 Performance (3.5 inch), DL380p Gen8 Special (3.5 inch), DL385p Gen8 (3.5 inch), DL385p Gen8 Dedicated Workload (3.5 inch), DL385p Gen8 Entry (3.5 inch), DL385p Gen8 Maximized Consolidation (3.5 inch), DL385p Gen8 Storage (3.5 inch), DL385p Gen8 Storage Centric (3.5 inch), DL80 Gen9 Entry (3.5 inch)
- HPE ProLiant ML Series: ML110 Gen9 (3.5 inch), ML110 Gen9 Base (3.5 inch), ML110 Gen9 Entry (3.5 inch), ML310e Gen8 (3.5 inch), ML310e Gen8 Base (3.5 inch), ML310e Gen8 Entry (3.5 inch), ML310e Gen8 Performance (3.5 inch), ML310e Gen8 v2 (3.5 inch), ML310e Gen8 v2 Base (3.5 inch), ML310e Gen8 v2 Enty (3.5 inch), ML310e Gen8 v2 Performance (3.5 inch), ML350 Gen9 (3.5 inch), ML350 Gen9 Base (3.5 inch), ML350 Gen9 Entry (3.5 inch), ML350 Gen9 Performance (3.5 inch), ML350e Gen8 (3.5 inch), ML350e Gen8 Base (3.5 inch), ML350e Gen8 Entry (3.5 inch), ML350e Gen8 Performance (3.5 inch), ML350e Gen8 v2 (3.5 inch), ML350e Gen8 v2 Base (3.5 inch), ML350p Gen8 (3.5 inch), ML350p Gen8 Special Server (3.5 inch)
- HPE ProLiant SL Series: SL4540 Gen8 (3.5 inch), SL4540 Gen8 Tray 2x Node Server (3.5 inch), SL4545 Gen8 (3.5 inch)
- HPE StoreEasy: 1430, 1530, 1550, 1630
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
