Product Information

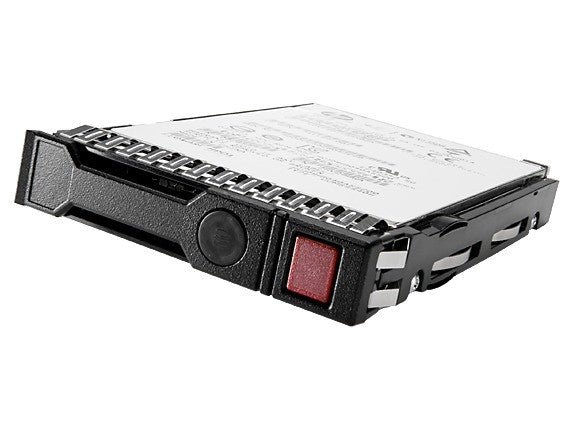

Made for HPE ProLiant Gen8, Gen9 and Gen10 servers, the HPE 693651-001 gives you 1.2 TB of enterprise class capacity in a 2.5 inch SFF (small form factor) package. It runs at 10,000 RPM and links to the controller over a dual port SAS 6Gb/s interface. The drive is hot swappable, so it can be installed or replaced while the system keeps running. It comes mounted in an HPE Smart Carrier.
SAS is designed for data center duty, where storage has to stay online around the clock and serve many users at once.
About the Smart Carrier: status icons and an animated ring on the tray show what the drive is doing, a blue locator light can be turned on remotely so you pull the right tray, and a warning icon on the release button lights up if removing the drive would lose data.
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: 693651-001
Drive Details
Drive Type: Hard Drive - Hot-Swap
Storage Capacity: 1.2 TB
Form Factor: 2.5 inch SFF
Host Interface: SAS 6Gbps
Sector Size (Bytes): 512
Ships With: HPE SmartDrive carrier
Performance
Drive Transfer Rate: 600 MBps (external)
Seek Time: 8.9 ms (max)
Track-to-Track Seek: 0.3 ms
Average Latency: 4.6 ms
Rotational Speed: 10000 rpm
Connections
Ports: 2 x SAS 6Gb/s
Fits Bay: 2.5" SFF
Size and Weight
Width: 3.00 inch
Depth: 4.70 inch
Height: 0.60 inch
Weight: 25.57 oz
Operating Environment
Operating Temp (Min): 50 °F
Operating Temp (Max): 95 °F
Compatible Systems
- HPE ProLiant BL Series: BL460c Gen8 (2.5 inch), BL660c Gen8 (2.5 inch), BL660c Gen8 Performance (2.5 inch), BL660c Gen9 (2.5 inch)
- HPE ProLiant DL Series: DL180 Gen9 (2.5 inch), DL180 Gen9 Base (2.5 inch), DL180 Gen9 Entry (2.5 inch), DL180 Gen9 Storage (2.5 inch), DL20 Gen9 (2.5 inch), DL20 Gen9 Entry (2.5 inch), DL20 Gen9 Performance (2.5 inch), DL320e Gen8 (2.5 inch), DL320e Gen8 Base (2.5 inch), DL320e Gen8 Entry (2.5 inch), DL320e Gen8 Performance (2.5 inch), DL320e Gen8 v2 (2.5 inch), DL320e Gen8 v2 Base (2.5 inch), DL320e Gen8 v2 Performance (2.5 inch), DL360 Gen9 CMS (2.5 inch), DL360 Gen9 Entry (2.5 inch), DL360p Gen8 (2.5 inch), DL360p Gen8 CMS (2.5 inch), DL360p Gen8 Performance (2.5 inch), DL360p Gen8 Special Server (2.5 inch), DL380 Gen9 (2.5 inch), DL380 Gen9 Base (2.5 inch), DL380 Gen9 Entry (2.5 inch), DL380 Gen9 Performance (2.5 inch), DL380p Gen8 Performance (2.5 inch), DL385p Gen8 (2.5 inch), DL385p Gen8 Dedicated Workload (2.5 inch), DL385p Gen8 Entry (2.5 inch), DL385p Gen8 Storage (2.5 inch), DL385p Gen8 Storage Centric (2.5 inch), DL560 Gen8 (2.5 inch), DL560 Gen8 Base (2.5 inch), DL560 Gen8 Entry (2.5 inch), DL560 Gen8 Performance (2.5 inch), DL560 Gen9 (2.5 inch), DL560 Gen9 Base (2.5 inch), DL560 Gen9 Entry (2.5 inch), DL560 Gen9 Performance (2.5 inch), DL580 Gen9 (2.5 inch), DL580 Gen9 Database (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch)
- HPE ProLiant ML Series: ML110 Gen9 (2.5 inch), ML110 Gen9 Base (2.5 inch), ML110 Gen9 Entry (2.5 inch), ML30 Gen9 (2.5 inch), ML30 Gen9 Base (2.5 inch), ML30 Gen9 Performance (2.5 inch), ML310e Gen8 (2.5 inch), ML310e Gen8 Base (2.5 inch), ML310e Gen8 Entry (2.5 inch), ML310e Gen8 Performance (2.5 inch), ML310e Gen8 v2 (2.5 inch), ML310e Gen8 v2 Base (2.5 inch), ML310e Gen8 v2 Enty (2.5 inch), ML310e Gen8 v2 Performance (2.5 inch), ML350 Gen9 (2.5 inch), ML350 Gen9 Base (2.5 inch), ML350 Gen9 Entry (2.5 inch), ML350 Gen9 Performance (2.5 inch), ML350e Gen8 (2.5 inch), ML350e Gen8 v2 (2.5 inch), ML350p Gen8 (2.5 inch), ML350p Gen8 Special Server (2.5 inch)
- HPE ProLiant SL Series: SL250s Gen8 Left Tray (2.5 inch), SL250s Gen8 Right Tray (2.5 inch)
- HPE ProLiant WS Series: WS460c Gen8 (2.5 inch), WS460c Gen9 Graphics (2.5 inch), WS460c Gen9 Graphics Expansion (2.5 inch)
- HPE ProLiant XL Series: XL170r Gen9 (2.5 inch), XL190r Gen9 (2.5 inch) Product features
- HPE Server Enterprise Hard Drives offer the highest level of performance and reliability for your most demanding application workloads. Enterprise drives help you improve server response times, power more transactions per second and accelerate data transfer (I/O) speeds. Drives are backed by over 3.35 million hours of the industry's most rigorous testing and qualification program ensuring customer's reliable and rugged drives. Smart Carriers
- HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss. Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
