Product Information

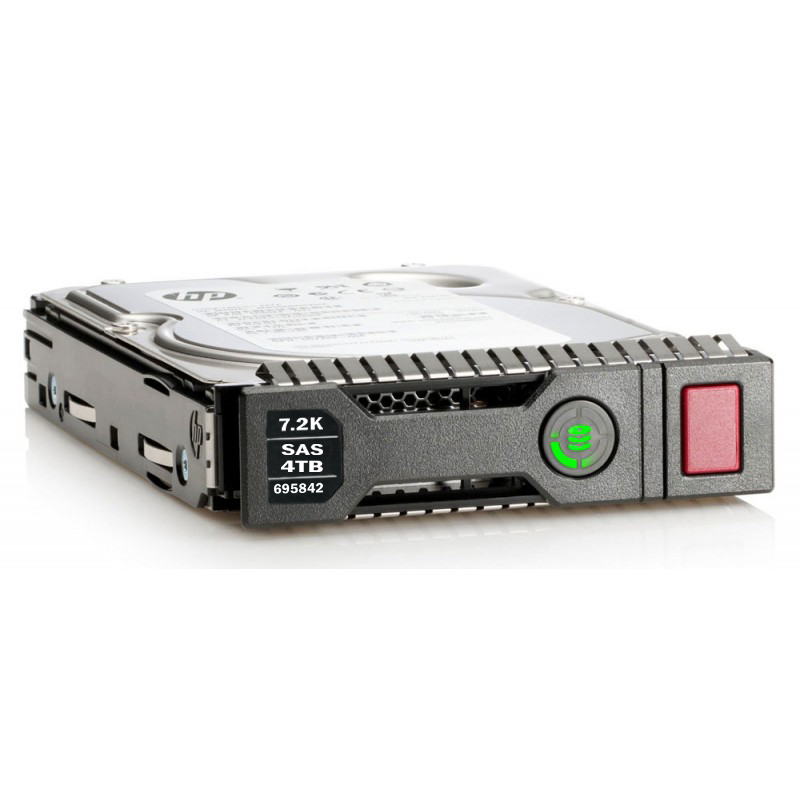

Made for HPE ProLiant Gen8, Gen9 and Gen10 servers, the HPE 698695-003-SC gives you 4 TB of midline capacity in a 3.5 inch LFF (large form factor) package. It runs at 7,200 RPM and links to the controller over a SAS 6Gb/s interface. It comes mounted in an HPE Smart Carrier.
It suits capacity driven jobs such as bulk storage, expanding digital content libraries, and cloud or web infrastructure.
About the Smart Carrier: status icons and an animated ring on the tray show what the drive is doing, a blue locator light can be turned on remotely so you pull the right tray, and a warning icon on the release button lights up if removing the drive would lose data.
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 698695-003-SC
Option Part Number: 695510-B21
Spare Part Number: 695842-001
Model Number: MB4000FCZGL
Assembly Number: 698695-003
Drive Details
Drive Type: Hard Drive - Hot-Swap
Storage Capacity: 4 TB
Form Factor: 3.5 inch LFF
Host Interface: SAS 6Gbps
Sector Size (Bytes): 512
Internal Fill: Air
Installation Type: Hot Pluggable
Carrier: Smart Carrier (SC)
Features: Dual Port
Workload Class: Midline
Ships With: HPE Smart Carrier
Performance
Drive Transfer Rate: 600 MBps (external)
Seek Time: 8.5 ms (average) / 15.7 ms (max)
Track-to-Track Seek: 0.7 ms
Rotational Speed: 7200 RPM
Connections
Ports: 1 x SAS 6 Gb/s
Fits Bay: 3.5" LFF
Size and Weight
Width: 4.20 inch
Depth: 6.70 inch
Height: 1.10 inch
Operating Environment
Operating Temp (Min): 50 °F
Operating Temp (Max): 95 °F
Compatible Systems
- HPE ProLiant BL Series: ProLiant BL420c (Gen8 Gen9) BL460c (Gen8 Gen9) BL465c (Gen8 Gen9)
- HPE ProLiant DL Series: DL20 (Gen9) DL60 (Gen9) DL80 (Gen9) DL120 (Gen8 Gen9) DL160 (Gen8 Gen9) DL180 (Gen8 Gen9) DL320e (Gen8 Gen9) DL360e (Gen8 Gen9) DL360p (Gen8 Gen9) DL380e (Gen8 Gen9) DL380p (Gen8 Gen9) DL388 (Gen9)
- HPE ProLiant ML Series: ML110 (Gen8 Gen9) ML150 (Gen8 Gen9) ML310e (Gen8 Gen9) ML350 (Gen8 Gen9) ML350e (Gen8 Gen9)
- HPE ProLiant SL Series: SL200t (Gen8 Gen9) SL230s (Gen8 Gen9) SL250s (Gen8 Gen9) SL2500 SL4550 (Gen8 Gen9) SL4545 (Gen8 Gen9) SL454x
- HPE Storage arrays: D3600 D3700
- HPE StoreEasy: 1430 1440 1530 1540 1630 1640
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
