Product Information

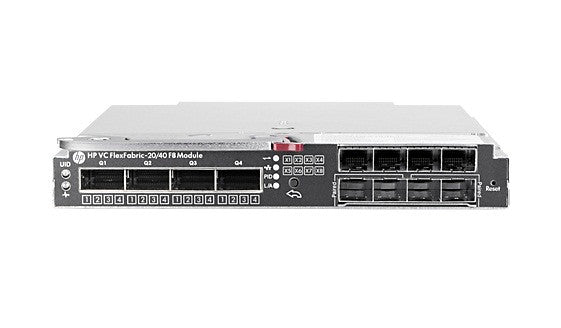

The HPE 699350-001 is an HPE Virtual Connect interconnect, the FlexFabric-20/40 F8, for BladeSystem c-Class enclosures. It brings all server traffic in the enclosure onto one device and connects straight to LANs and SANs, with 20GbE downlinks to the servers and 40GbE uplinks.
Key Features
- 16 x 10/20Gb midplane downlinks, 4 x 40Gb QSFP+ and 8 x 10Gb SFP+ uplinks, plus 2 x 20Gb cross connects
- HPE says it cuts up to 95% of the hardware needed to connect servers to networks, a 4:1 interconnect consolidation
- One module can stand in for up to three 10GbE switches and one 8Gb Fibre Channel switch in an enclosure
- License free support for Ethernet, Fibre Channel, FCoE and accelerated iSCSI
- Full hardware offload of iSCSI and FCoE keeps host CPU load down
- Bandwidth can be tuned per connection for each VM or workload
- Connects to existing standard data and storage networks without replacing gear
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Specifications
Brand: HPE
MPN: 699350-001
Option Part Number: 691367-B21
Spare Part Number: 699350-001
General
Device Type: Switch - managed - stackable
Enclosure Type: Plug-in module
Ports: 16 x 10/20Gb Ethernet (midplane downlink) + 2 x 20Gb Ethernet (cross connect link) + 4 x 40 Gigabit QSFP+ (uplink) + 8 x 10 Gigabit SFP+ (uplink)
Performance:
Fabric throughput: 1.2 Tbps
Capacity:
Network access groups: 128
Jumbo Frame Support: 9216 bytes
Fibre Channel: FC-FG, FC-FLA, FC-GS, FC-GS-2, FC-GS-3, FC-PH, FC-PH-2, FC-PH-3, FC-VI, FC-BB-5
Routing Protocol: IGMPv2, IGMP, IGMPv3
Remote Management Protocol: SNMP 1, SNMP 2, SNMP 3, HTTPS, SMI-S, CLI
Encryption Algorithm: SSL
Authentication Method: RADIUS, TACACS+, LDAP
Features: Auto-negotiation, LDAP support, VLAN support, LLDP support, non blocking ports, Transparent (N_Port ID Virtualization - NPIV) mode support, sFlow v5 Compliant StandardsIEEE 802.2, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.3aq, IEEE 802.1Qbb, IEEE 802.1Qaz
Status Indicators: Port status, status of modules, module locator, link/activity
Not sure this fits your network? Send us your switch or enclosure model and the DatorPro team will confirm compatibility before you order.
